7-101
MAINTENANCE
Clean Oil Cooler, Radiator and Inter Cooler Front
Screen
--- every 500 hours
IMPORTANT: Check the screen daily and clean it if
necessary when the machine is operated in dusty
areas.

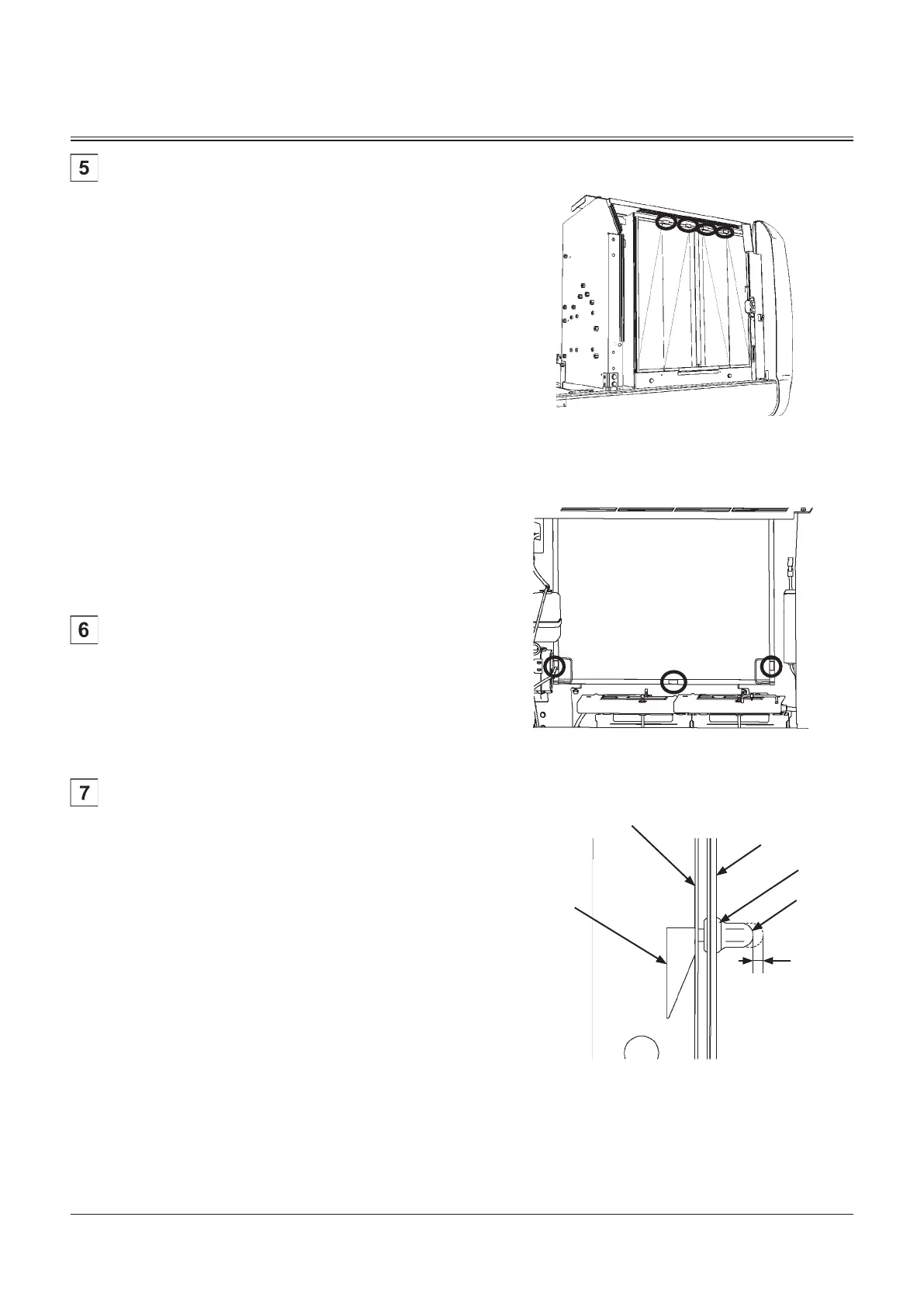

Pull the clip lever on the screen to remove the screen.
Insert the clip into the cover hole and turn over the clip lever
to hold the screen.
The screen can not be held properly if the clip nut is too tight
or loose. Adjust the tightening torque of the clip nut to hold
the screen.
For rough indication of the tightening torque, refer to the
below.
Tightening Torque: 0.5 N·m
or
A: 2.5 to 3.5 mm
Clean Air Conditioner Condenser
--- every 500 hours
IMPORTANT: Check the screen daily and clean it if
necessary when the machine is operated in dusty
areas.
Clean Fuel Oil Cooler
--- every 500 hours
IMPORTANT: Check the screen daily and clean it if
necessary when the machine is operated in dusty
areas.
Screen
Cover
Nut
A
Rubber
Lever
MDAA-07-024
MDAA-07-025
ZX120-6 class
Except ZX120-6 class
MDAA-07-089
To Next Page
