Hitachi ZAXIS 120-6 class User Manual

7-100
MAINTENANCE
d
WARNING:
 Entanglement in moving parts can cause serious
injury.
 Before servicing, stop the engine and the fan to
prevent any accident.
 Never attempt to start the engine when the cover is
open.
 In case tools or parts are dropped into the radiator/
oil cooler/inter cooler core, remove them before
starting the engine.

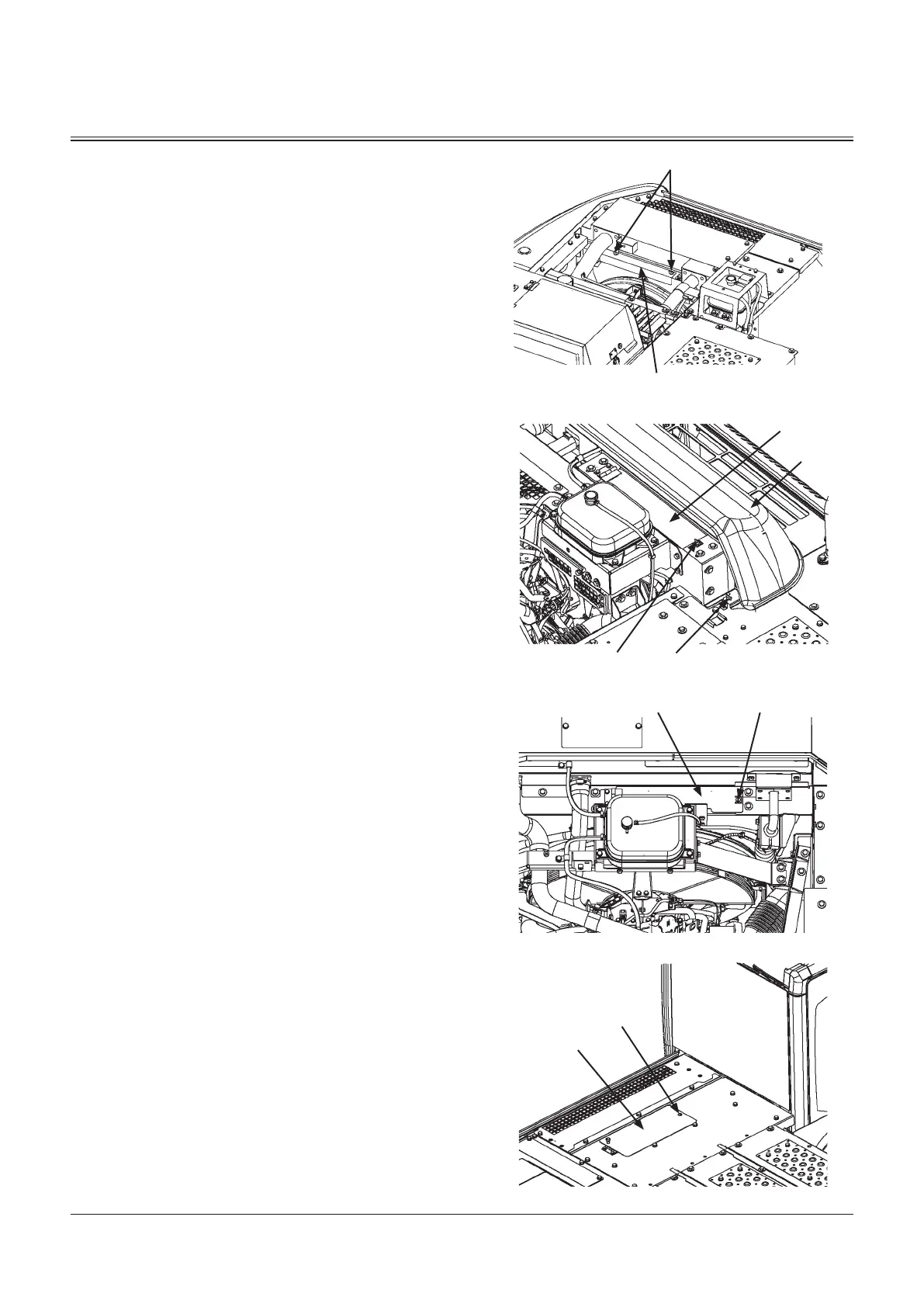

Cleaning
ZX200-6, 240-6 class
1. Loosen bolt (3) to open radiator cover (5).
2. Loosen bolt (4) to open cover (6) and perform cleaning.
ZX120-6, 160-6, 300-6, 330-6 class
1. Loosen bolt (1) to open cover (2) and perform cleaning.
Take care not to break the fin during clean operation.
Close cover (2) (6) and tighten bolt (1) (4) after cleaning.
IMPORTANT: When the machine is operated in dusty
areas, check the cores periodically and replace if
necessary.
ZX160-6, 300-6 class
2
2
1
1
ZX330-6 class
ZX200-6, 240-6 class
6
5
4
MDC1-07-057
3
ZX120-6 class
MDC1-07-073
2
1
MDC1-07-026
MDC1-07-039
