1-144
OPERATOR'S STATION
MDAA-01-333
Adjusting Operator's Seat (Optional)
d
WARNING: Adjust the seat only after lowering the
front attachment to the ground and pulling up the
pilot control shut-off lever to the LOCK position.
Failure to do so may allow the machine to move
unexpectedly if a control lever or pedal is mistakenly
touched with a part of the body, possibly resulting in
personal injury or death.

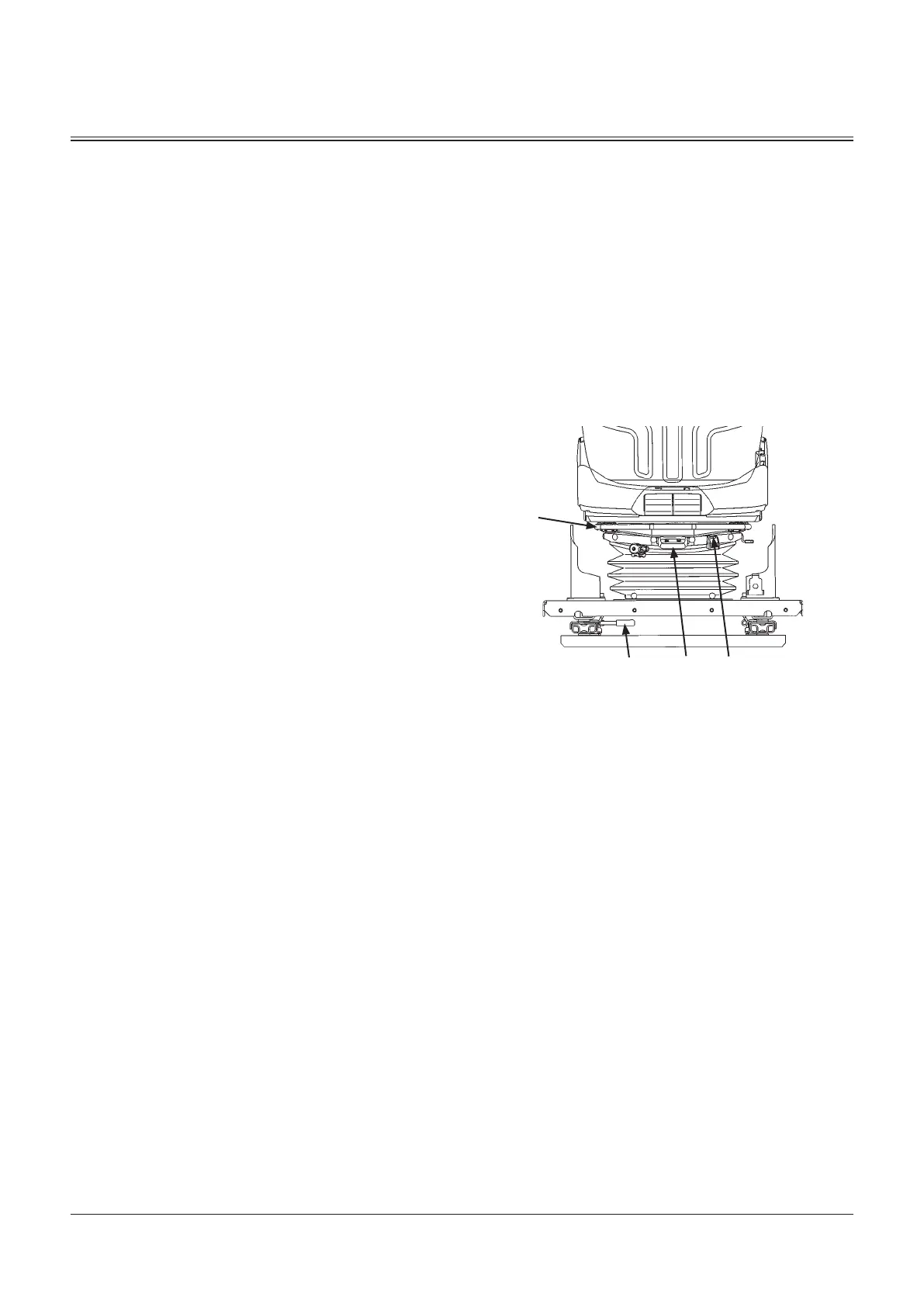

Adjusting Seat Height
IMPORTANT: The seat is an air suspension type.
Pull lever (1) upward to fill air and raise the seat. Push lever
(1) downward to release air and lower the seat. When the
seat is properly adjusted for your weight, indicator (2) is in
the green zone.
Console and Seat Fore-aft Adjustment
Operate console and seat slide lever (3) to adjust the seat
and both right and left consoles to the desired distance
from the travel pedals and levers. The adjustment range for
seat and console fore-aft is 160 mm with steps every 20 mm.
Seat Fore-Aft Adjustment
Operate seat slide lever (4) to adjust the seat to the desired
distance from the travel pedals and levers. The adjustment
range for seal fore-aft is 190 mm with steps every 10 mm.
213
4
To Next Page
