12-14
SPECIFICATIONS

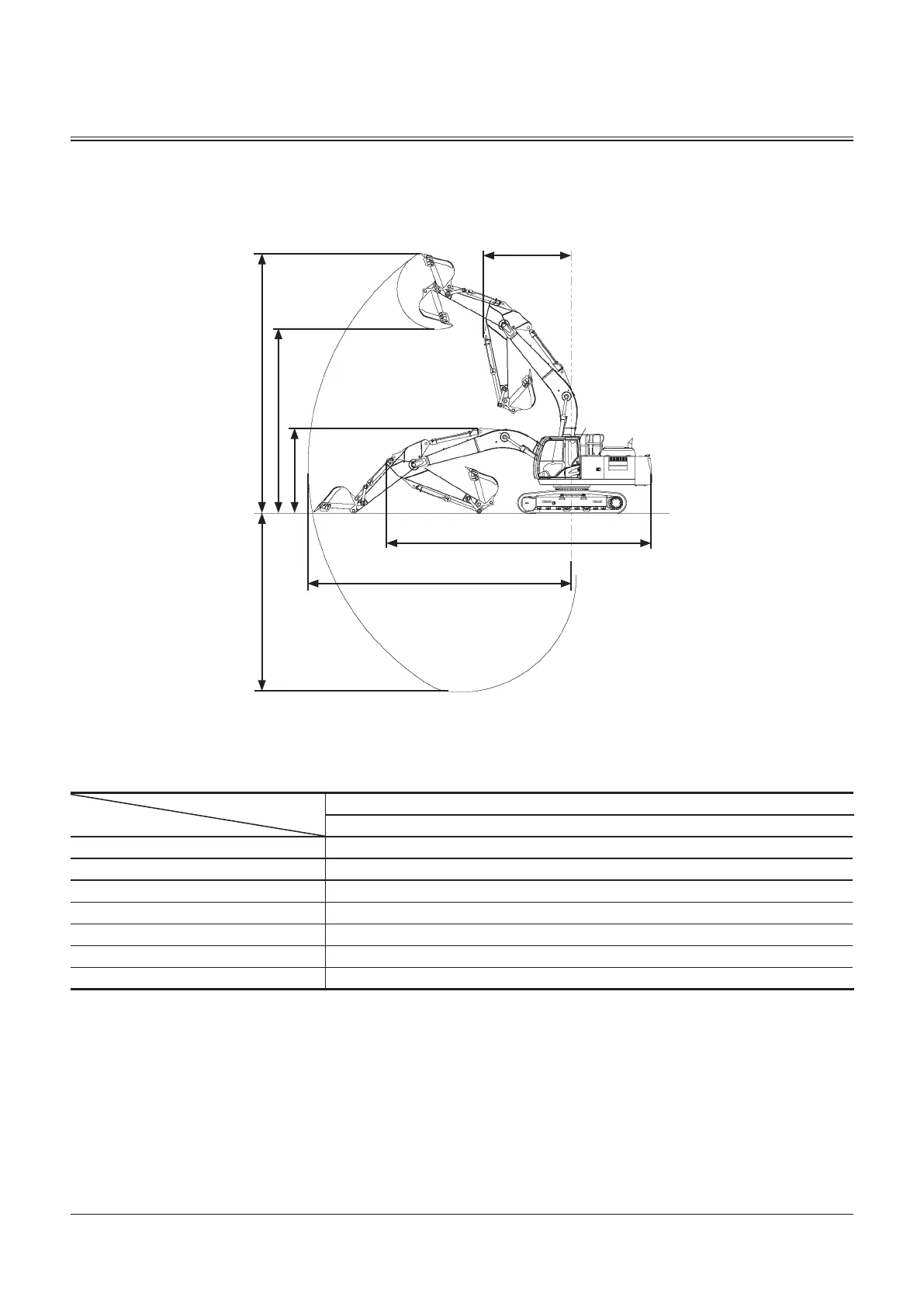

Working Ranges
ZX250LC-6
Category
Item
2.96 m Arm
mm
A : Maximum Digging Reach 10290
B : Maximum Digging Depth *6960
C : Maximum Cutting Height *10160
D : Maximum Dumping Height *7200
E : Overall Height 3090
F : Overall Length 10360
G : Minimum Swing Radius 3440
f
NOTE: * The dimensions do not include the height of the shoe lug.
MDC1-12-002
Backhoe
A
G
B
D
C
F
E
