Hitachi ZAXIS 120-6 class User Manual

13-12
BLADE
OPTIONAL ATTACHMENTS AND DEVICES

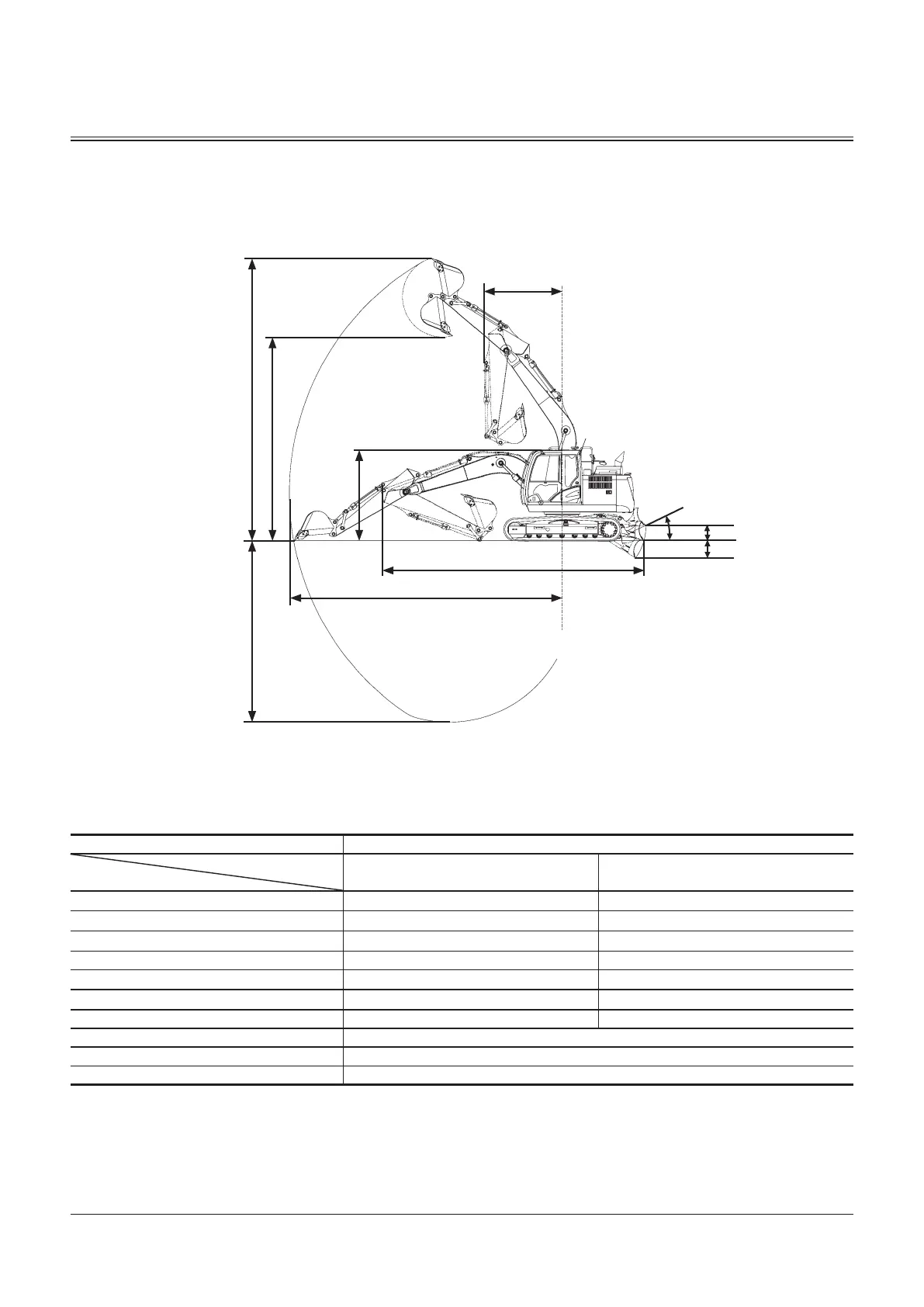

Working Ranges
ZX130-6 with Blade
Model ZX130-6 with Blade
Category
Item
2.52 m Arm 3.01 m Arm
A: Maximum Digging Reach mm
8300 8770
B: Maximum Digging Depth mm
5540 6030
C: Maximum Cutting Height mm
8600 8930
D: Maximum Dumping Height mm 6190 6520
E: Overall Height mm
2870 *2870
F: Overall Length mm
8030 *8040
G: Minimum Swing Radius mm 2380 2620
H: Max. Raising Height mm 480
I: Max. Digging Depth mm 530
J: Blade Angle degree 24
f
NOTE: The dimensions do not include height of the shoe lug (except Item E). * The dimensions asterisked are for transport
pin position.
C
B
D
A
F
E
G
J
H
I
MDC1-13-013
