12-18
SPECIFICATIONS

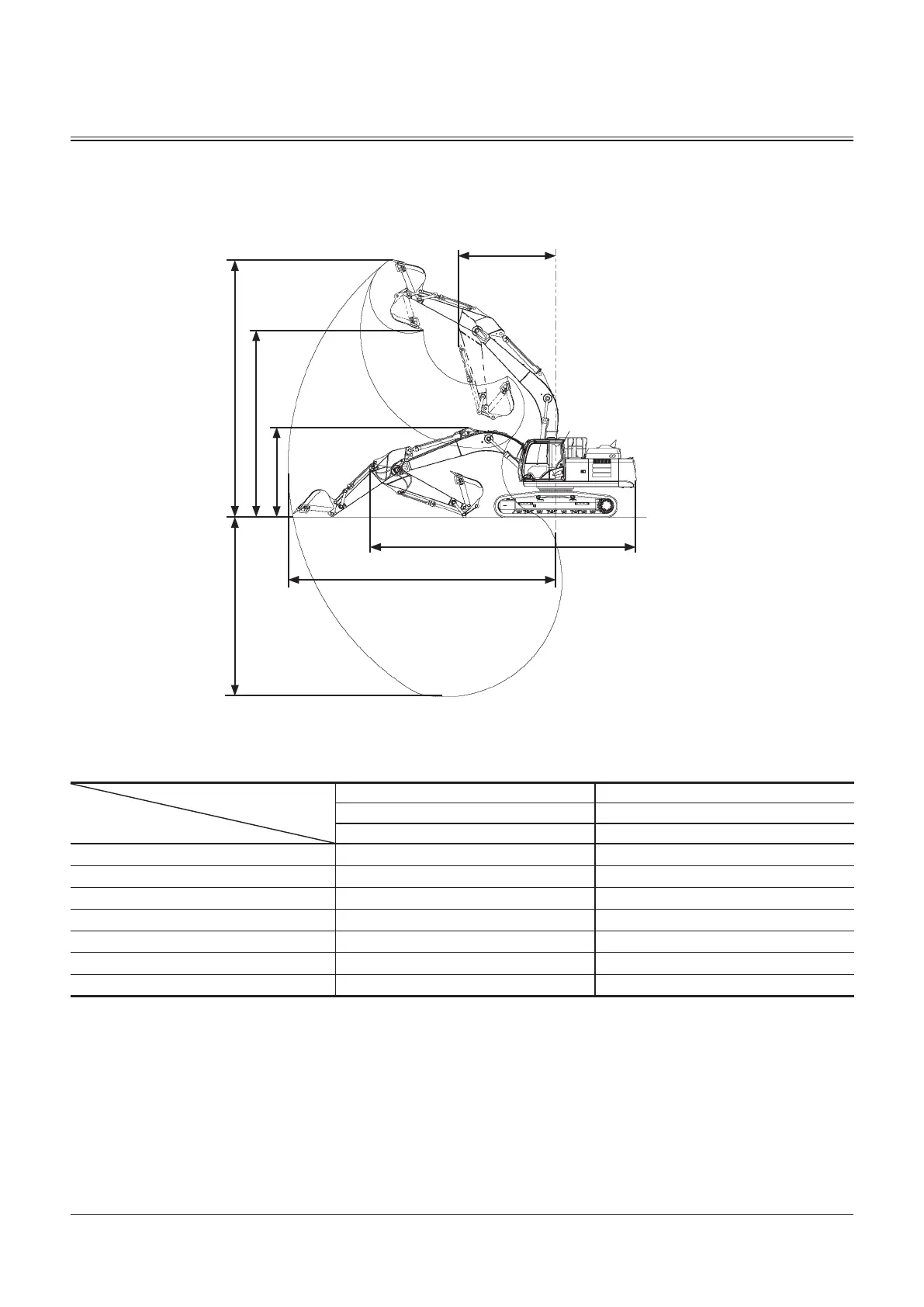

Working Ranges
ZX300LC-6
MDC1-12-004
Category
Item
3.11 m Arm 3.76 m Arm
Backhoe Backhoe
mm mm
A : Maximum Digging Reach
10710 11270
B : Maximum Digging Depth
*7220 *7870
C : Maximum Cutting Height
*10270 *10470
D : Maximum Dumping Height
*7330 *7540
E : Overall Height
3200 3380
F : Overall Length
10620 10670
G : Minimum Swing Radius
3900 3890
f
NOTE: * The dimensions do not include the height of the shoe lug.
Backhoe
A
G
B
D
C
F
E
