7-9
MAINTENANCE
Hood and Access Covers
ZX120-6, 160-6 class
d
WARNING:
Do not keep the hood and access covers open when
the machine is parked on a slope, or while the wind
is blowing hard. The hood or access covers may close
accidentally, possibly resulting in personal injury.
When opening or closing the hood and access covers,
take extra care not to catch fingers between the base
machine and the hood or access covers.

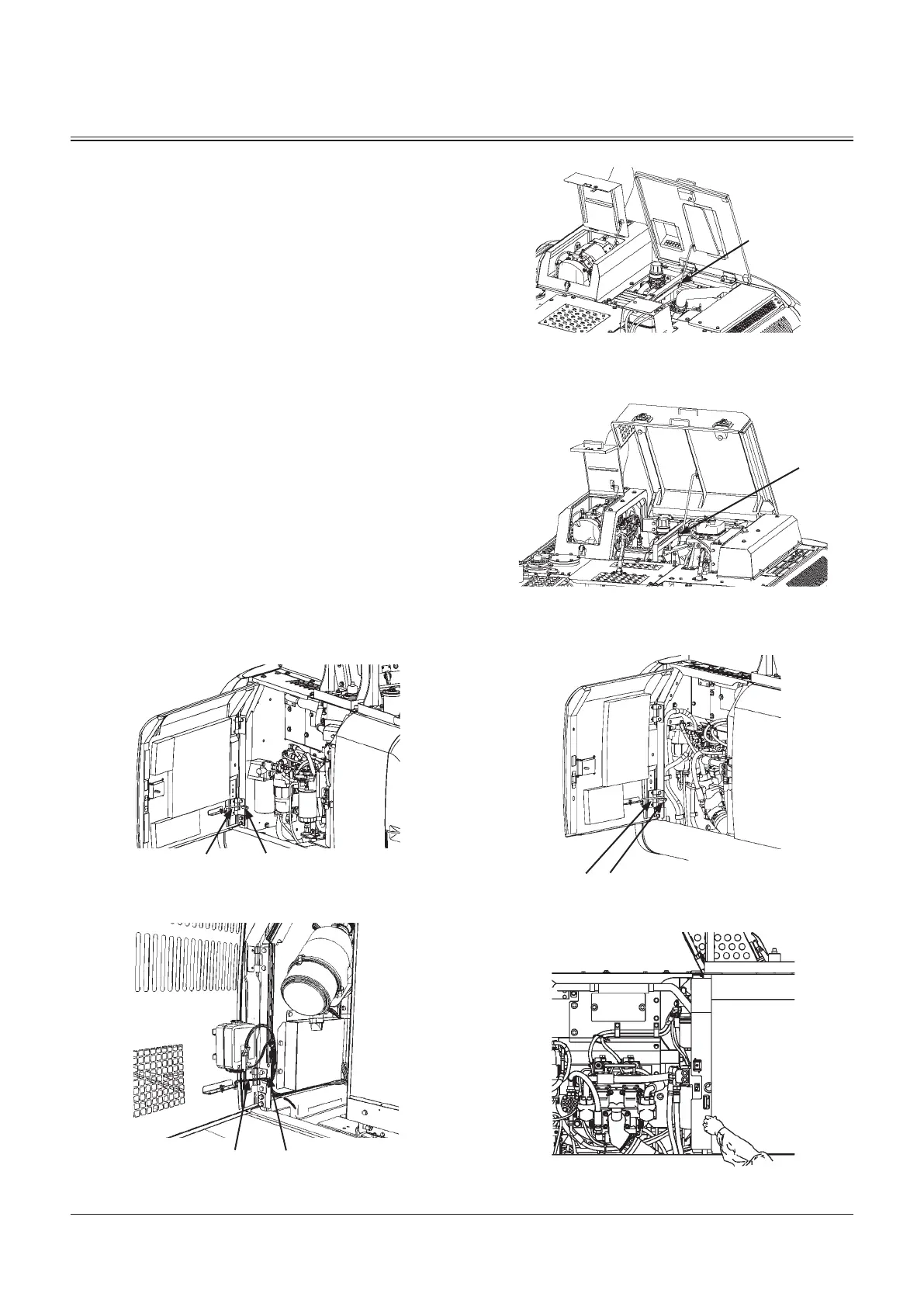

Holding the handle on the access cover, raise the cover until
the cover is secured with catch (1).
After opening the right and/or left access cover, be sure to
insert rod (2) into cover lock hole (3) to hold the cover.
When opening the front right cover, open the rear right
cover first. Then, pull to open the front right cover as
illustrated. (only ZX160-6 class)
MDC1-07-068
2 3
Front Right Cover
ZX160-6 class
Engine Cover
ZX160-6 class
Rear Right Cover
ZX160-6 class
Engine Cover
ZX120-6 class
1
1
Left Cover
Right Cover
ZX120-6 class
2 3
MDC1-07-067
MDAA-07-064
2 3
MDC1-07-065
MDC1-07-066
MDC1-07-086
To Next Page
