7-10
MAINTENANCE
ZX200-6, 240-6 class
d
WARNING:
Do not keep the hood and access covers open when
the machine is parked on a slope, or while the wind
is blowing hard. The hood or access covers may close
accidentally, possibly resulting in personal injury.
When opening or closing the hood and access covers,
take extra care not to catch fingers between the base
machine and the hood or access covers.

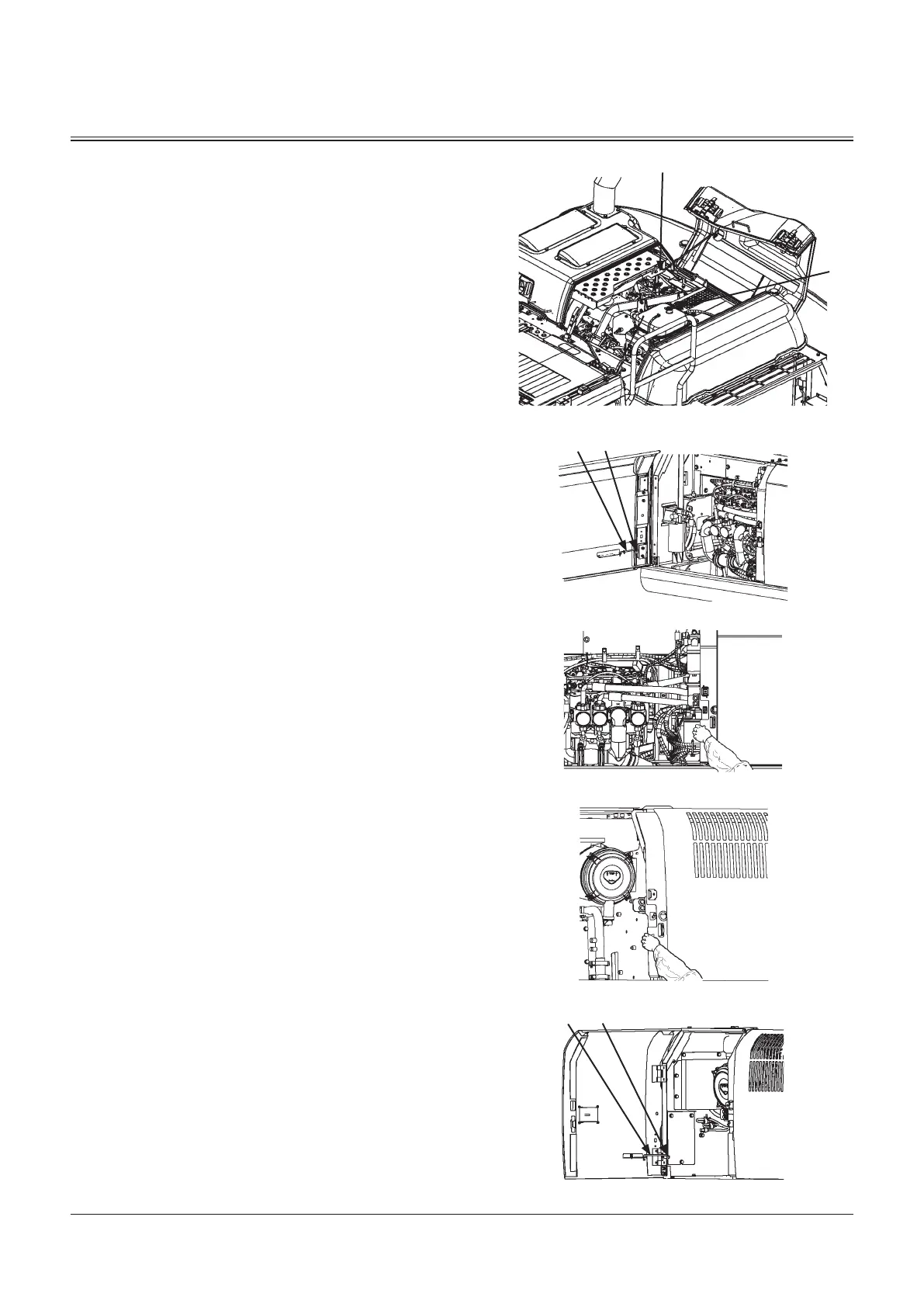

Holding the handle on the access cover, raise the cover until
the cover is secured with catch (1).
After opening the right and/or left access cover, be sure to
insert rod (3) into cover lock hole (4) to hold the cover.
When opening the rear left cover, open the front left cover
first. Then, pull to open the rear left cover as illustrated.
When opening the front right cover, open the rear right
cover first. Then, pull to open the front right cover as
illustrated.
Do not attempt to start the engine when fan guard (2) is
open.
Front Left Cover
Rear Left Cover
Rear Right Cover
3 4
MDAA-07-019
MDAA-07-020
Engine Cover
3
2
1
4
MDC1-07-021
MDC1-07-001
MDC1-07-002
Front Right Cover
To Next Page
