7-11
MAINTENANCE
ZX300-6, 330-6 class
d
WARNING:
Do not keep the hood and access covers open when
the machine is parked on a slope, or while the wind
is blowing hard. The hood or access covers may close
accidentally, possibly resulting in personal injury.
When opening or closing the hood and access covers,
take extra care not to catch fingers between the base
machine and the hood or access covers.

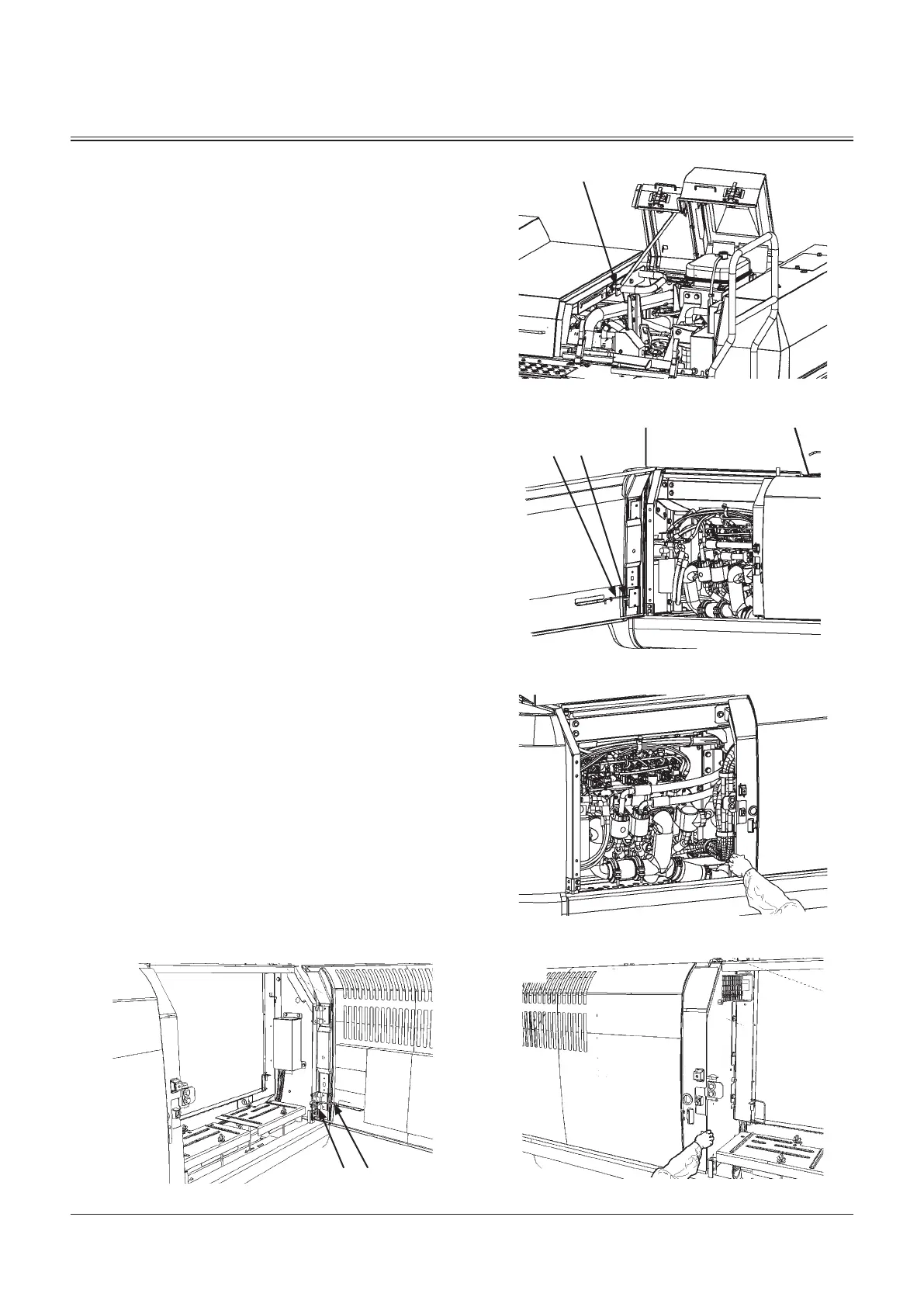

Holding the handle on the access cover, raise the cover until
the cover is secured with catch (1).
After opening the right and/or left access cover, be sure to
insert rod (2) into cover lock hole (3) to hold the cover.
When opening the front left cover, open the rear left cover
first. Then, pull to open the front left cover as illustrated.
When opening the front right cover, open the rear right
cover first. Then, pull to open the front right cover as
illustrated.
Front Left Cover
MDAA-07-032
MDAA-07-034
Rear Left Cover
2
3
Engine Cover
1
MDC1-07-022
Rear Right Cover
Front Right Cover
2
3
MDC1-07-003
MDC1-07-004
To Next Page
