5-18
OPERATING THE MACHINE

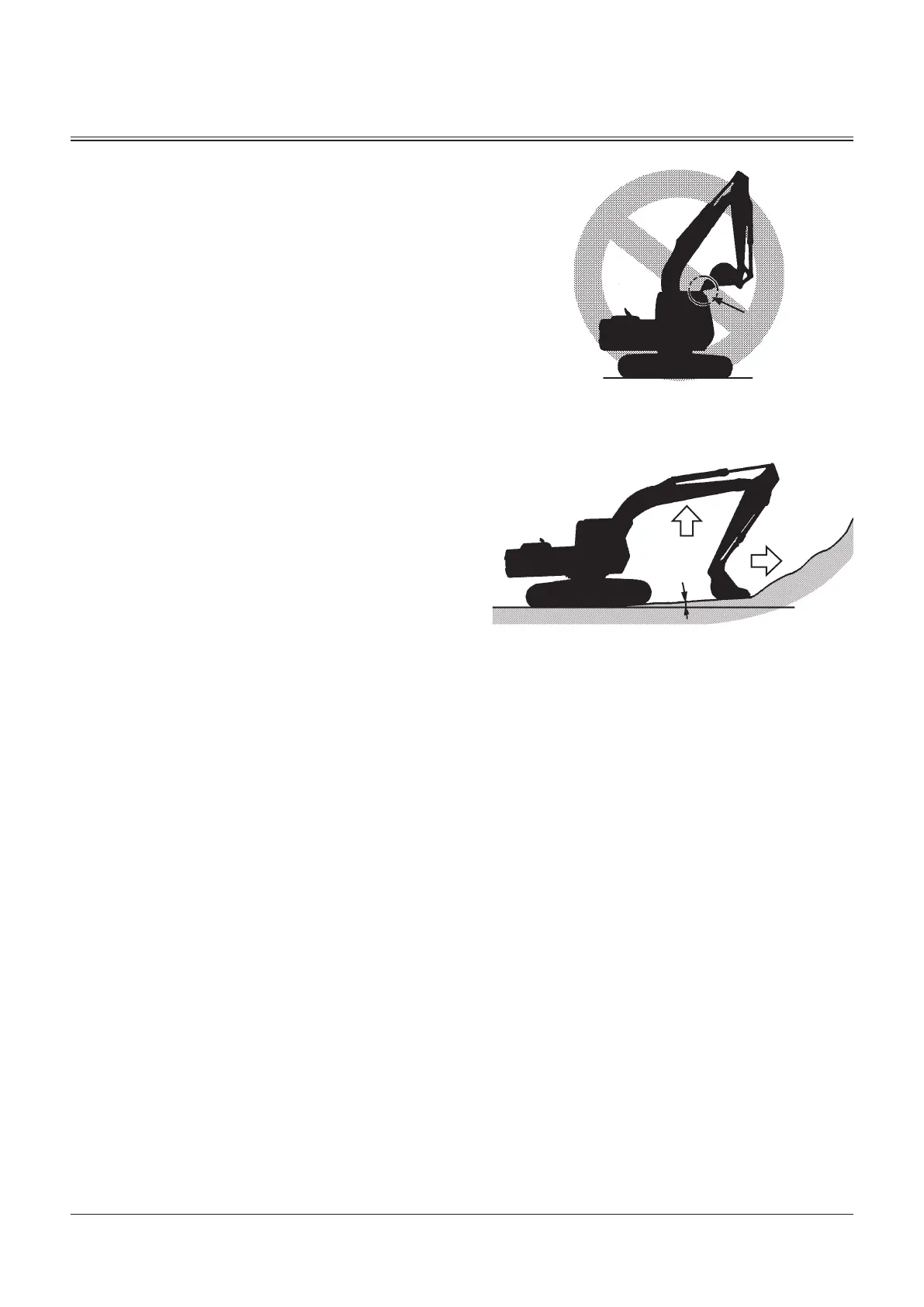

Watch out!
(Take care not to hit
the cab with bucket)
Face Shovel
Backhoe operation digs the ground using the bucket in a roll-
in motion. Face shovel operation digs the ground using the
arm cylinder in a scraping motion.
d
WARNING: Take care not to hit the cab when rolling in
the arm with a reversed-installed bucket.
IMPORTANT: If a bucket hook is mounted, take care
not to hit the arm with the hook when rolling in the
bucket.
For face shovel operation, dig the ground using the arm
cylinder in a scraping motion.
When underground water is expected, make a slope
angle of 2 to 3° to drain this water as shown.
f
NOTE: Because of the hydraulic cylinder structure, digging
force of the face shovel operation is smaller than for backhoe
operation.
2 to 3 °
M104-05-020
MZX5-05-003
