1-104
OPERATOR'S STATION

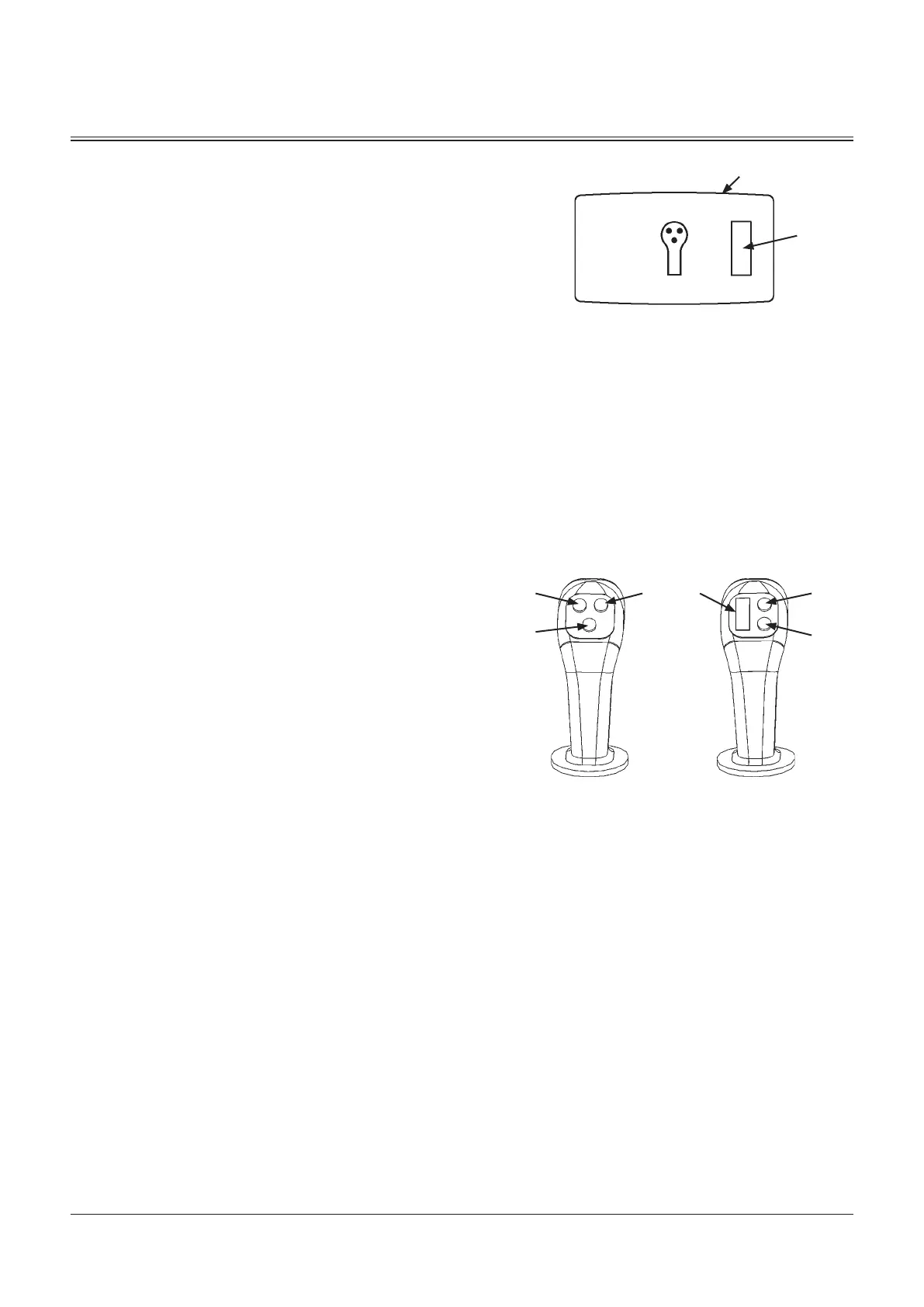

Electrical Control Main Switch
Attachment Switch (Assist Operation) (Main Operation)
This switch (7) is mainly used for optional devices and
attachments with a rotary or a tilt function. By placing the
pilot control shut-off lever in the lock release position, and
pressing electrical control main switch (7), indicator (8) will
light. When indicator (8) is lit, operation of the attachment is
possible.
IMPORTANT: The attachment switch is operable only
when indicator (8) of electrical control main switch (7)
is lit. Indicator (8) will not light unless the pilot control
shut-off lever is in the UNLOCK position.
AUX Function Lever 1
1. Auxiliary
2. Power Boost Switch
3. Attachment Switch (Assist Operation)
4. Auxiliary
5. Horn Switch
6. Auxiliary
d
CAUTION:
These switches are provided for operating
attachments of this machine. HITACHI does not bear
responsibility on any human injury, malfunction
and/or physical loss or damage incurred by
unauthorized application or use of unauthorized
attachments, optional parts or modified switch,
which will void Hitachi Warranty Policy.
Before using this switch, thoroughly read the
operation manual of the corresponding attachment
and check the operation of each function in a safe
area.
Before operating an attachment with this switch,
confirm the requirements on safe and proper
mounting and operation of the attachment with its
manufacturer or distributor and observe them.
MDAA-01-311
7
8
2
1
4
6 3
5
MCGB-01-030MDAA-01-337
Left Control Lever Right Control Lever
To Next Page
