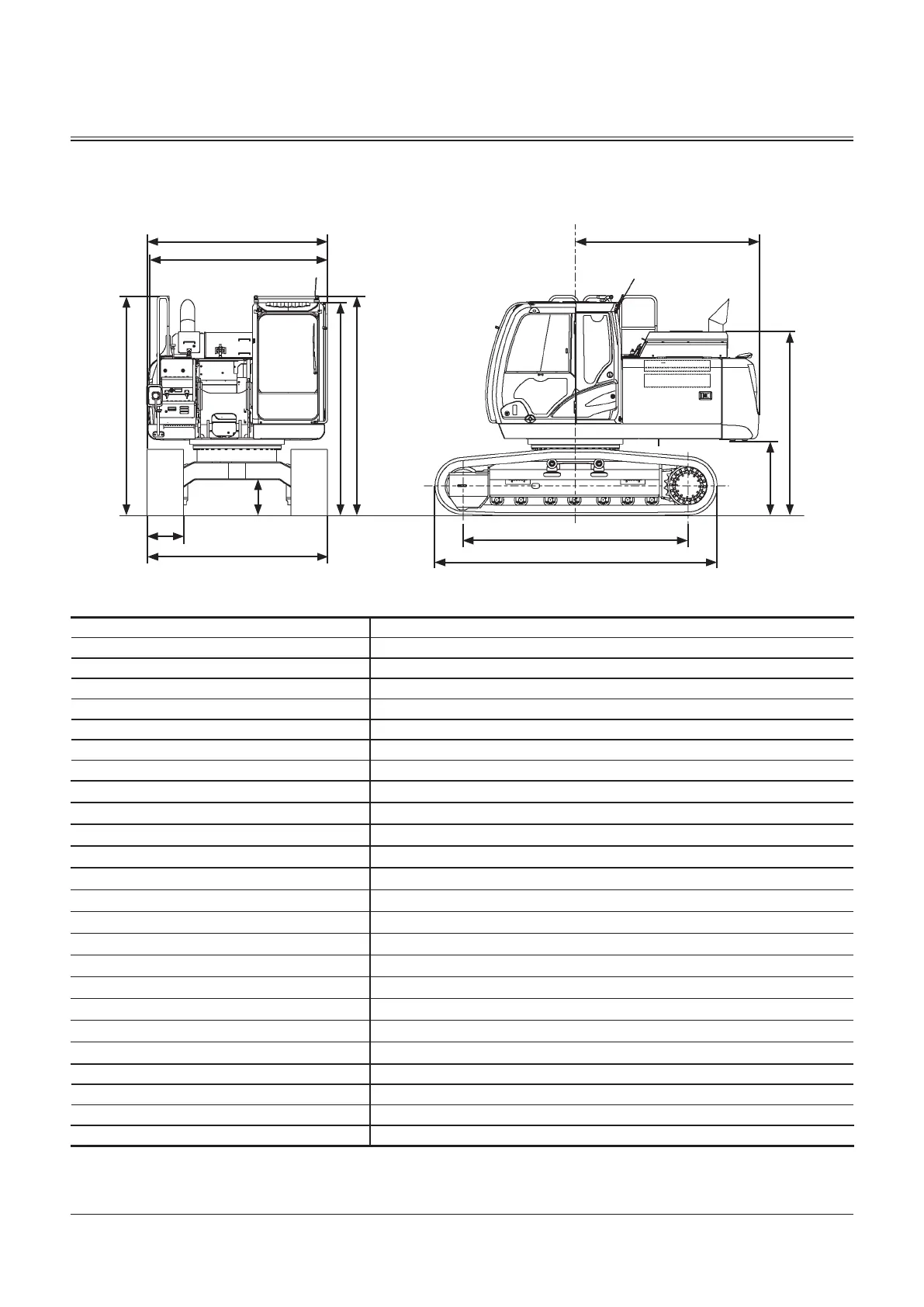

SPECIFICATIONS
Specifications
ZX160LC-6
Model ZX160LC-6
Type of Front-End Attachment 2.58 m Arm
Bucket Capacity (Heaped) PCSA 0.60 m
3
, CECE 0.55 m
3
Counterweight Weight 3200 kg
Operating Weight 17200 kg
Base Machine Weight 13700 kg
Engine Type Isuzu AR-4JJ1XASA-01
Engine Power ISO 14396: 82.3 kW/2200 min
-1
(112 PS/2200 rpm)
A :
Overall Width (Excluding back mirrors)
2500 mm
B :
Cab Height 2950 mm
B':
Cab Top Handrail Height 3030 mm
C :
Rear End Swing Radius 2550 mm
D :
Minimum Ground Clearance *470 mm
E :
Counterweight Clearance *1030 mm
F :
Engine Cover Height *2530 mm
F' :
Handrail Height 3030 mm
G :
Overall Width of Upperstructure 2480 mm
H :
Undercarriage Length 3920 mm
I :
Undercarriage Width 2490 mm
J :
Sprocket Center to Idler Center 3100 mm
K :
Track Shoe Width 500 mm (Grouser shoe)
Ground Pressure 50 kPa (0.51 kgf/cm
2
)
Swing Speed 13.3 min
–1
(rpm)
Travel Speed (fast/slow) 5.1/3.3 km/h
Gradeability 35 ° (tanθ = 0.70)
f
NOTE: * The dimensions do not include the height of the shoe lug.
MDC1-12-015
A
G
B'
B
D
K
I
C
F
F'
E
J
H
