OPERATING THE ENGINE
To Upperstructure Frame of the Machine
(Red)
Booster Batteries Machine Batteries
(Black)

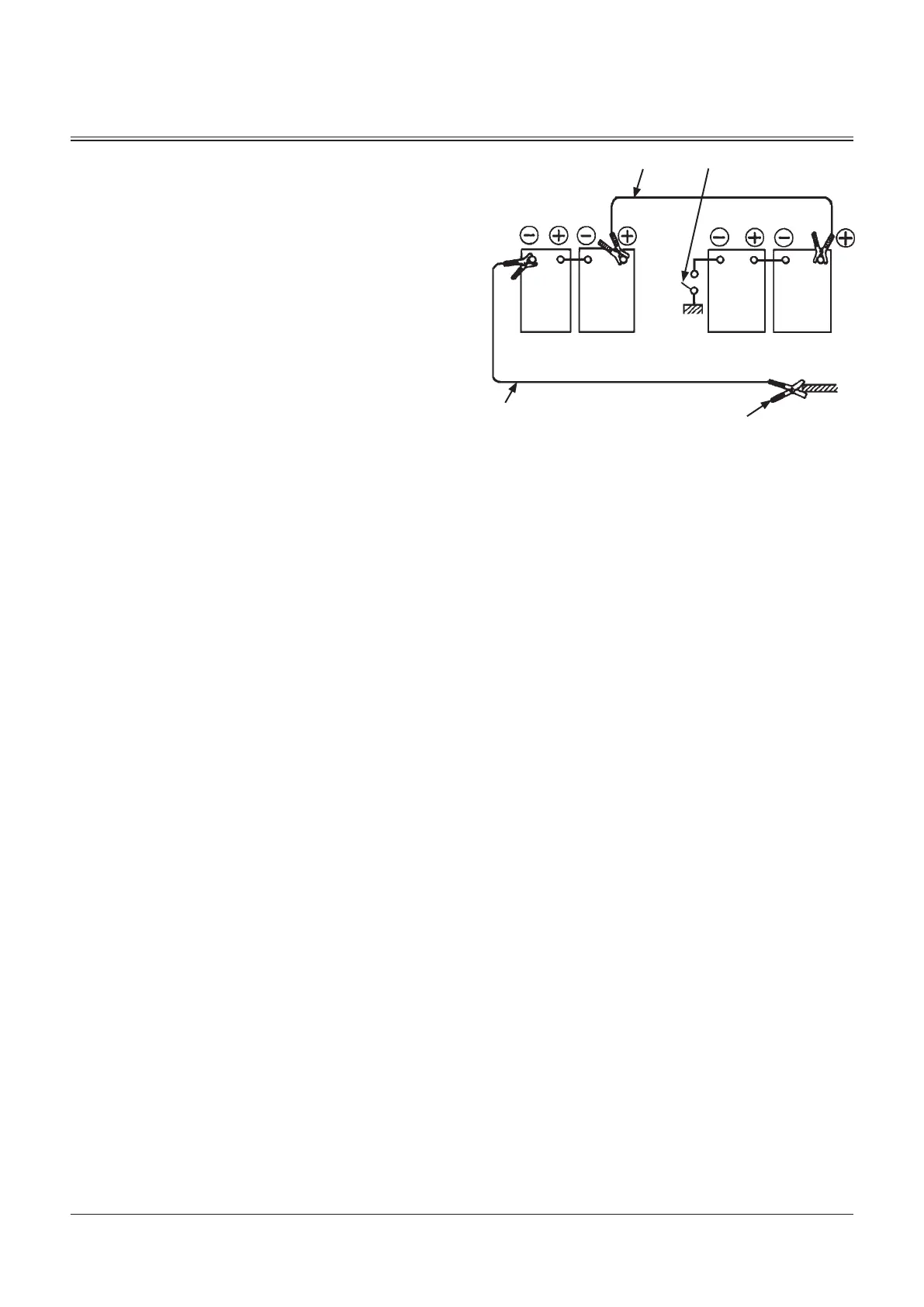

Disconnecting the booster cables
1
2
Disconnect Booster Cable from Frame First
Disconnecting the booster cables
1. Disconnect black negative (-) cable (2) from the machine
frame first.
2. Disconnect the other end of black negative (-) cable (2)
from the booster batteries.
3. Disconnect red positive (+) cable (1) from the booster
batteries.
4. Disconnect red positive (+) cable (1) from the machine
batteries.
Battery Disconnect Switch
MDC1-03-001
