6-8
TRANSPORTING
Lifting
1. Fully extend the arm and bucket cylinders. Lower
the boom until the bucket comes in contact with the
ground.
2. Pull the pilot control shut-off lever to the LOCK position.
3. Stop the engine. Remove the key from the key switch.
4. Close and lock all doors and covers.
5. Use wire ropes and support bar of sufficient length so
that they do not come in contact with the machine while
lifting.
Wrap some protectors around wire ropes and/or support
bar as required to prevent the machine from being
damaged.
6. Set a crane in an appropriate position.

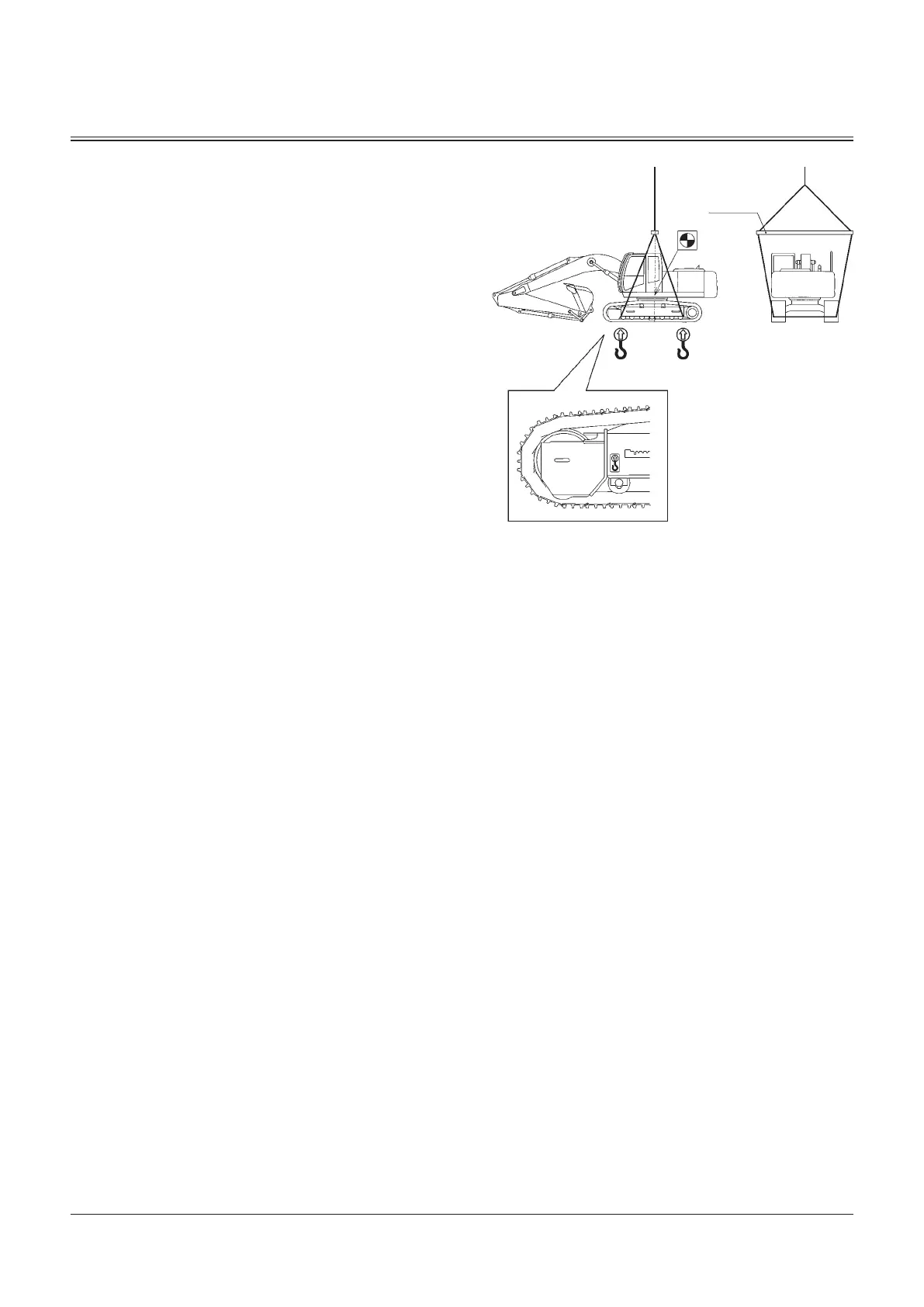

7. Thread the wire rope through and under both sides of
the track frames as illustrated. Attach the wire ropes to
the crane.
Support Bar
Center of
Gravity
MDCD-06-005
