Refueling

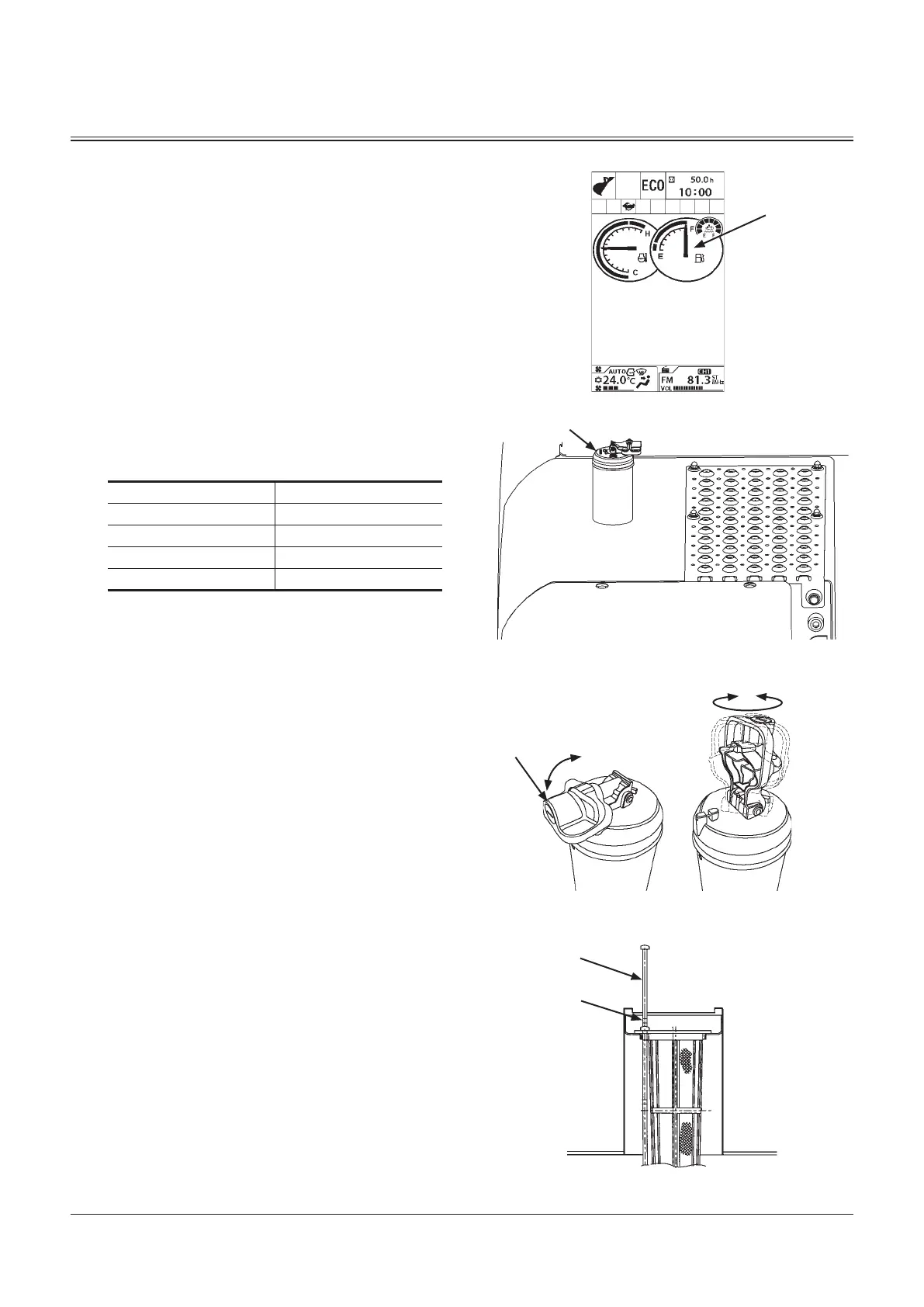

1. Park the machine on a firm, level surface. Lower the
bucket to the ground. Check the fuel level with fuel
gauge (1).
If the fuel level is low, stop the engine. Refuel by
removing cap (2) on the fuel tank.
2. Remove cap (2) of filler port.
[Cap (2) unlock procedures]
Release the key lock.
Pull up handle (3) and turn handle (3)
counterclockwise for releasing cap (2) lock.
Remove cap (2).
3. To avoid condensation, fill the tank at the end of each
day's operation. Tank capacity is as follows.
Model Tank Capacity
ZX120-6, 160-6 class 285 L
ZX200-6 class 400 L
ZX240-6, 300-6 class 500 L
ZX330-6 class 630 L
Do not fill the tank more than specified. Stop filling when
a yellow mark on fuel level gauge (4) becomes visible.
Position the oil filler gun so that the gun will not obstruct
the floating movement of level gauge (4).
4. Just after fueling, install and lock filler cap (2) to prevent
vandalism and loss.
5. Install cap (2) of filler port.
[Cap (2) lock procedures]
Install cap (2).
Turn handle (3) clockwise until cap (2) is
locked, and push down handle (3).
Lock the key.
IMPORTANT:
Take care not to allow dirt and/or water to enter the
fuel tank.
Wipe off any spilled fuel.
Never forget to remove filler cap (2) when refueling
with the automatic fueling device and be sure to stop
fueling when the yellow mark on the float of level
gauge (4) becomes visible.
