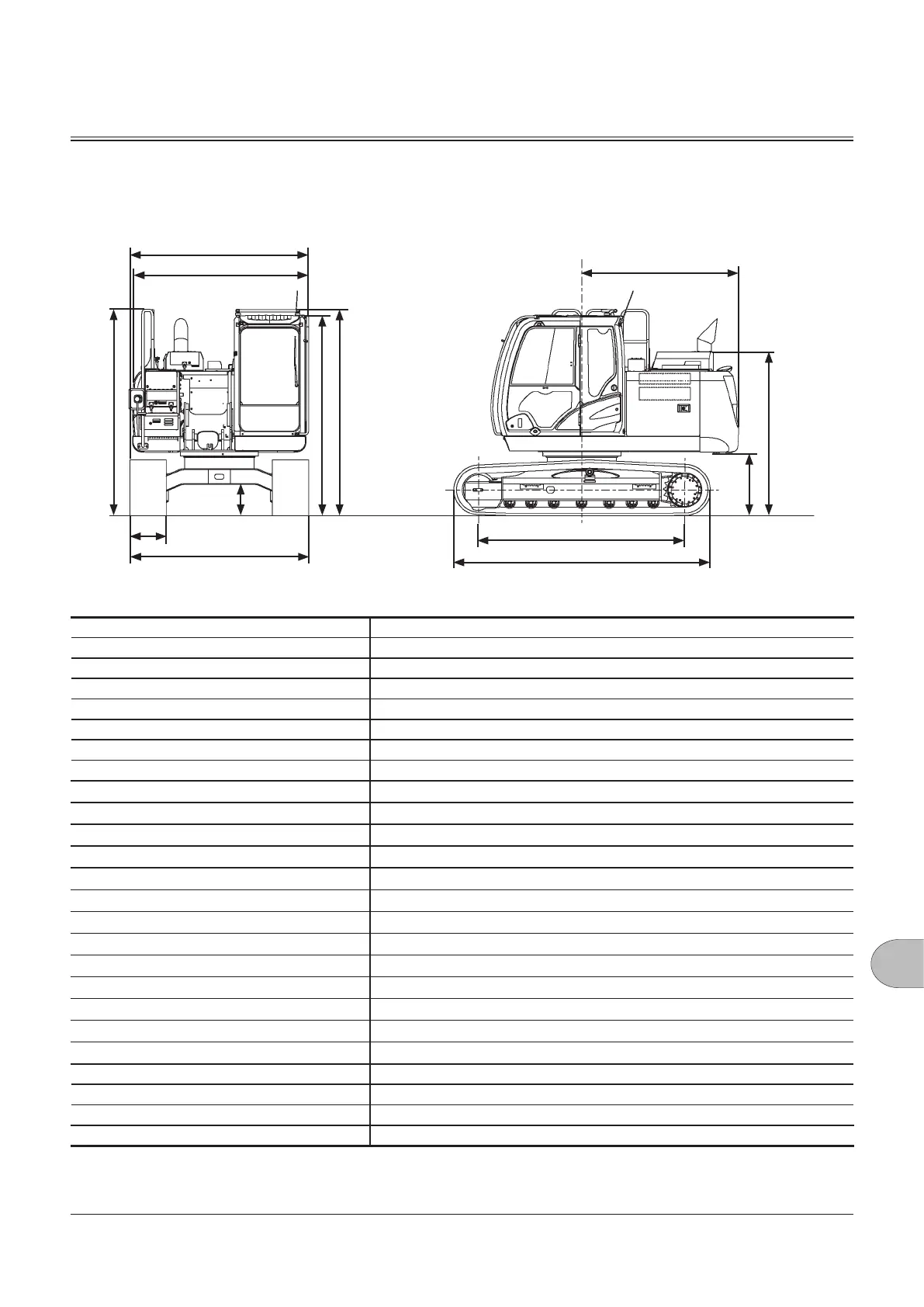

Hitachi ZAXIS 120-6 class User Manual

12-1
SPECIFICATIONS
Specifications
ZX130-6
Model ZX130-6
Type of Front-End Attachment 2.52 m Arm
Bucket Capacity (Heaped) PCSA 0.50 m
3
, CECE 0.45 m
3
Counterweight Weight 2950 kg
Operating Weight 13400 kg
Base Machine Weight 10600 kg
Engine Type Isuzu AR-4JJ1XASA-02
Engine Power ISO 14396: 74.9 kW/2000 min
-1
(102 PS/2000 rpm)
A :
Overall Width (Excluding back mirrors)
2490 mm
B :
Cab Height 2790 mm
B':
Cab Top Handrail Height 2870 mm
C :
Rear End Swing Radius 2190 mm
D :
Minimum Ground Clearance *410 mm
E :
Counterweight Clearance *840 mm
F :
Engine Cover Height *2260 mm
F' :
Handrail Height 2870 mm
G :
Overall Width of Upperstructure 2460 mm
H :
Undercarriage Length 3580 mm
I :
Undercarriage Width 2490 mm
J :
Sprocket Center to Idler Center 2880 mm
K :
Track Shoe Width 500 mm (Grouser shoe)
Ground Pressure 42 kPa (0.43 kgf/cm
2
)
Swing Speed 13.3 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.3 km/h
Gradeability 35 ° (tanθ = 0.70)
f
NOTE: * The dimensions do not include the height of the shoe lug.
MDC1-12-013
A
G
B'
B
D
K
I
C
F
E
J
H
F'
