Hitachi ZAXIS 120-6 class User Manual

1-9
OPERATOR'S STATION

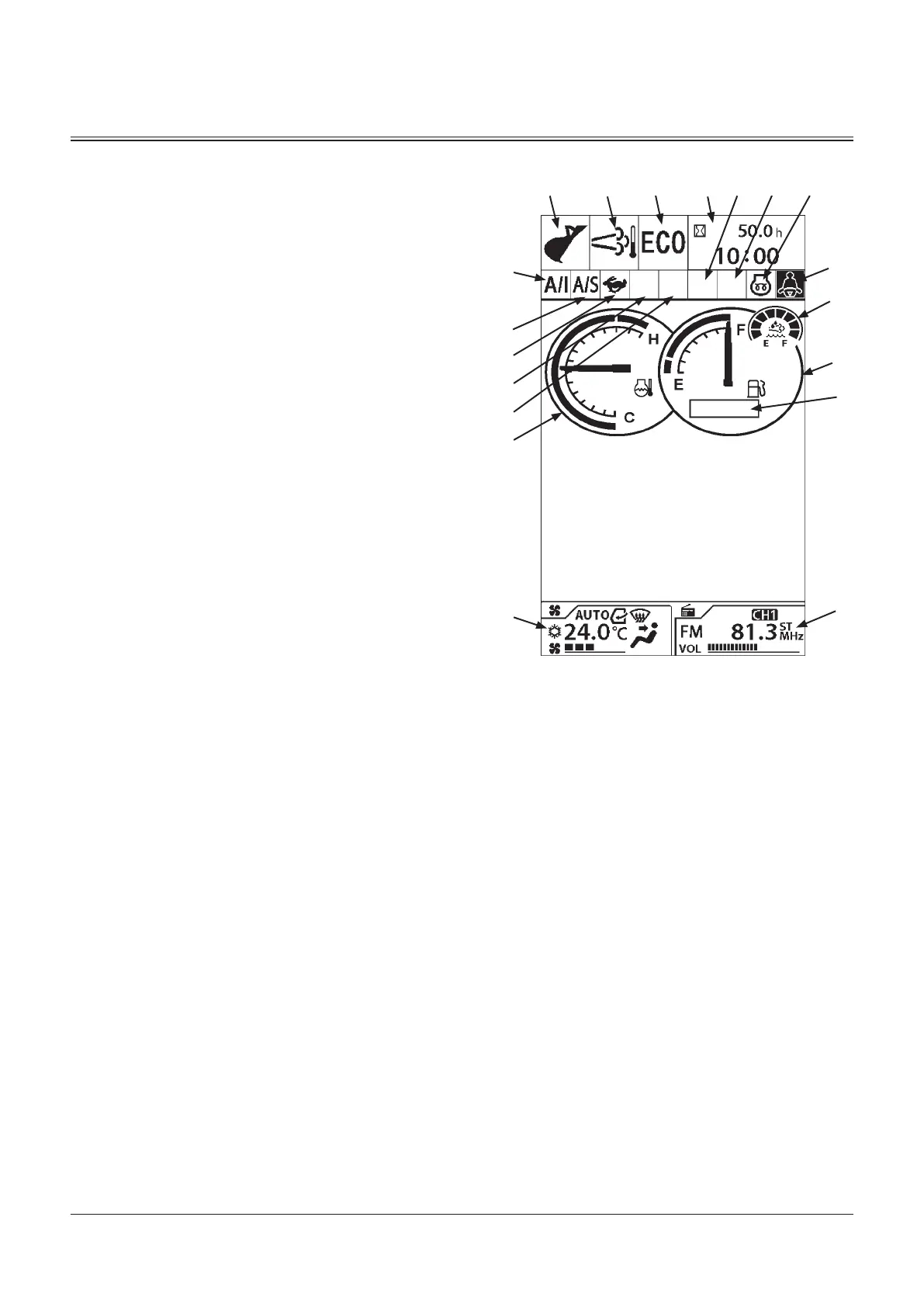

Basic Screen
1- Work Mode Display
2- Aftertreatment Device Display
3- Power Mode Display
4- Hour Meter, Clock
5- Auxiliary
6- Auxiliary
7- Preheat Display
8- Seat Belt Display
9- Fuel Gauge
10- Sub Meter Display
11- Radio Display
12- Air Conditioner Display
13- Coolant Temperature Gauge
14- Auxiliary
15- Auxiliary
16- Travel Mode Display
17- Auto Shut-Down Display
18- Auto-Idle Display
19- DEF/AdBlue® Gauge
19
21 3
8
10
11
12
13
14
15
16
17
18
9
4 5 6 7
MDC1-01-020
