86 Voyager 1602g User Guide
5. End Output Sequence Editor
Scan FF to enter an Output Sequence for an additional symbology, or Save to
save your entries.
Other Programming Selections
• Discard
This exits without saving any Output Sequence changes.

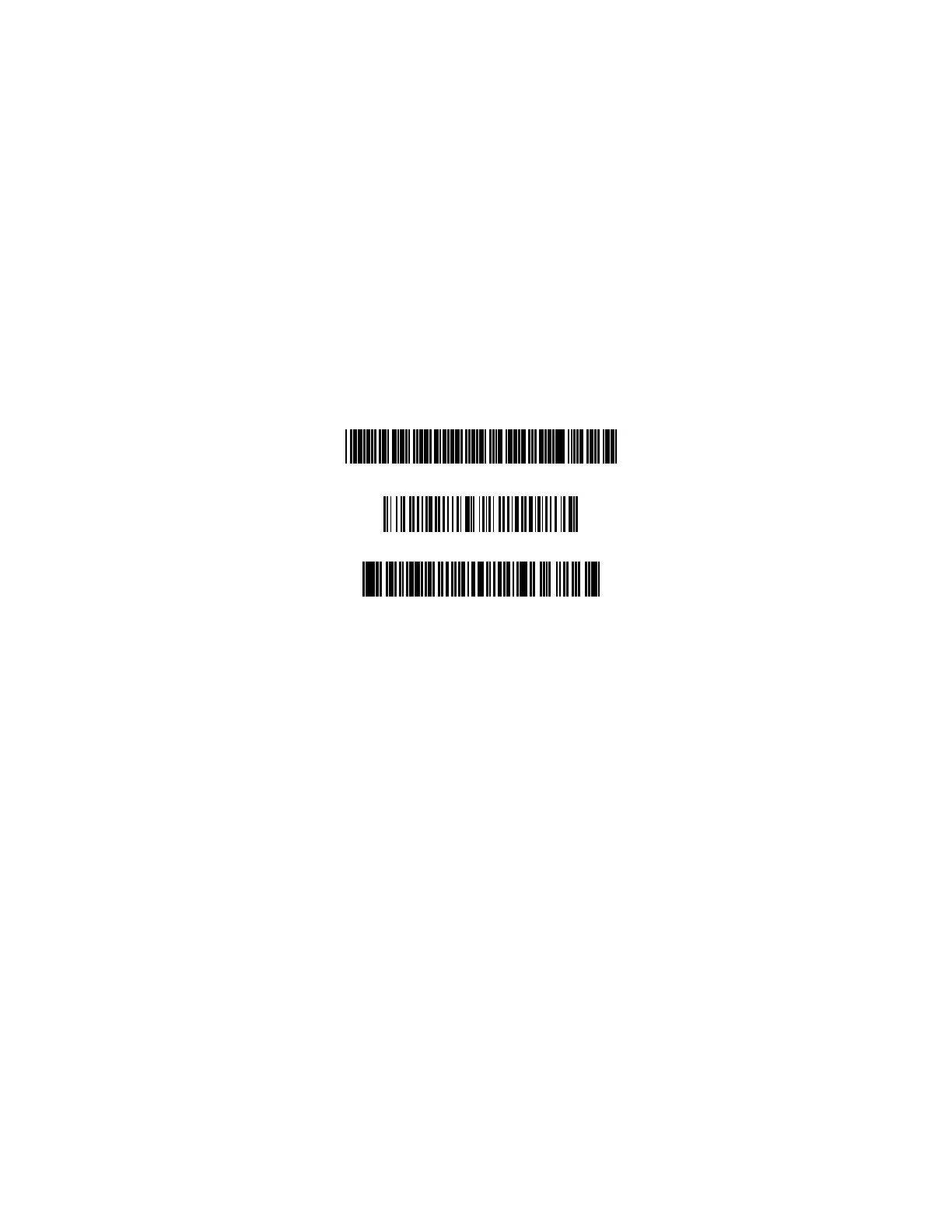

Output Sequence Example
In this example, you are scanning Code 93, Code 128, and Code 39 barcodes, but
you want the scanner to output Code 39 1st, Code 128 2nd, and Code 93 3rd, as
shown below.
Note: Code 93 must be enabled to use this example.
You would set up the sequence editor with the following command line:
SEQBLK62999941FF6A999942FF69999943FF
The breakdown of the command line is shown below:
SEQBLK sequence editor start command
62 code identifier for Code 39
9999 code length that must match for Code 39, 9999 = all lengths
41 start character match for Code 39, 41h = “A”
FF termination string for first code
6A code identifier for Code 128
9999 code length that must match for Code 128, 9999 = all lengths
42 start character match for Code 128, 42h = “B”
FF termination string for second code
69 code identifier for Code 93
9999 code length that must match for Code 93, 9999 = all lengths
A - Code 39
B - Code 128
C - Code 93
