140 Voyager 1602g User Guide

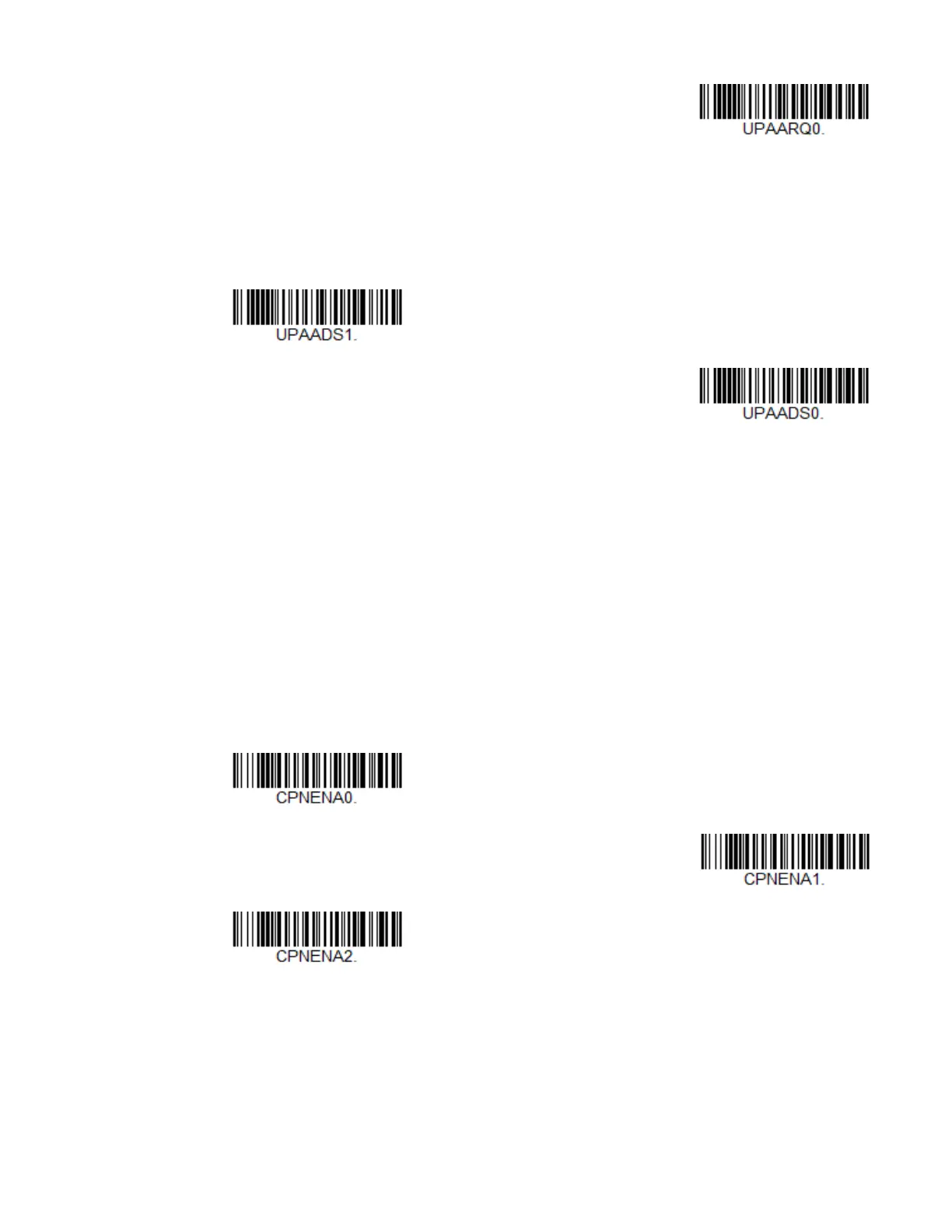

UPC-A Addenda Separator
When this feature is On, there is a space between the data from the barcode and
the data from the addenda. When turned Off, there is no space. Default = On.
UPC-A/EAN-13 with Extended Coupon Code
Use the following codes to enable or disable UPC-A and EAN-13 with Extended
Coupon Code. When left on the default setting (Off), the scanner treats Coupon
Codes and Extended Coupon Codes as single barcodes.
If you scan the Allow Concatenation code, when the scanner sees the coupon
code and the extended coupon code in a single scan, it transmits both as one sym-
bologies. Otherwise, it transmits the first coupon code it reads.
If you scan the Require Concatenation code, the scanner must see and read the
coupon code and extended coupon code in a single read to transmit the data. No
data is output unless both codes are read. Default = Off.
