Honeywell Voyager 1602g User Manual

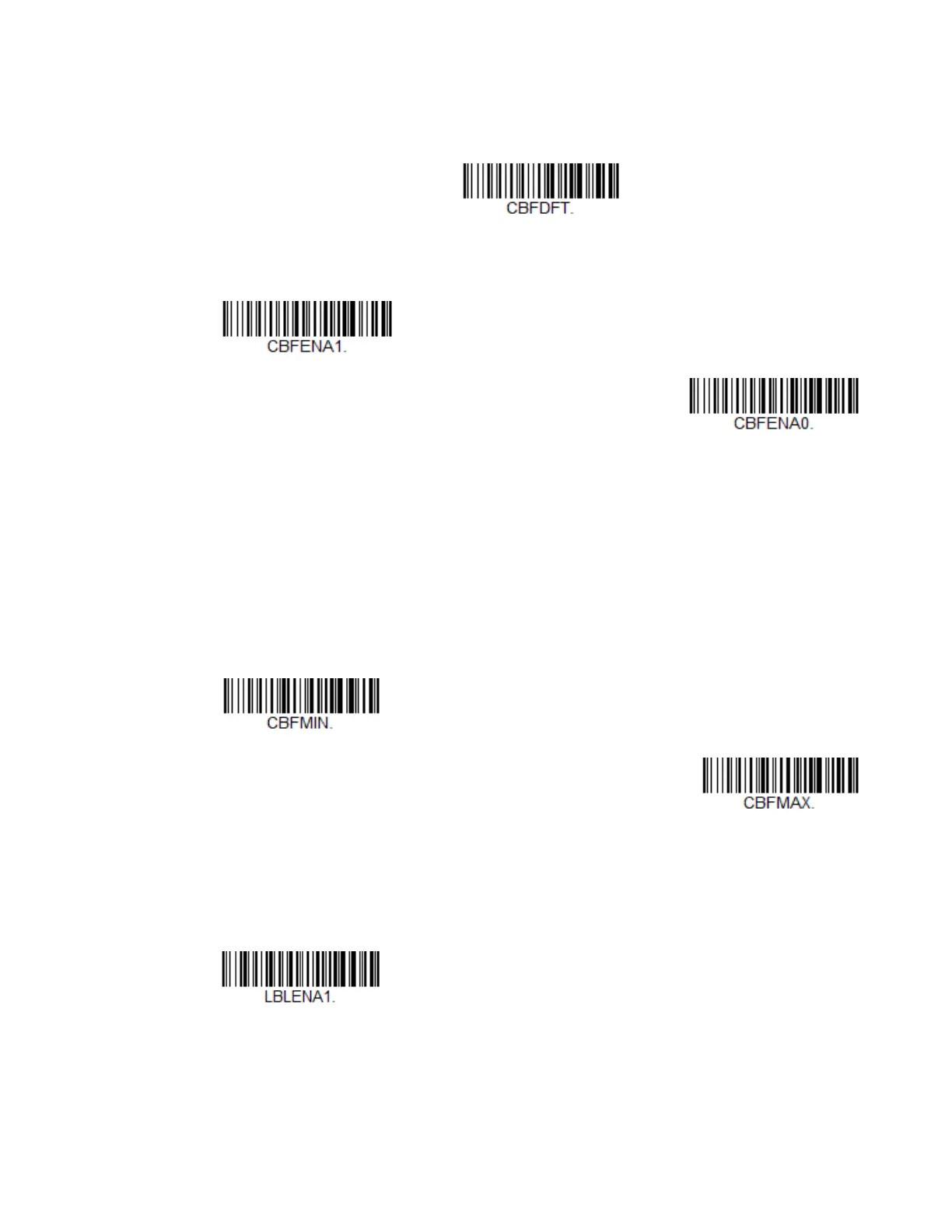

Voyager 1602g User Guide 153
Codablock F
<Default All Codablock F Settings>
Codablock F On/Off
If you are reading Code 128 barcodes, Codablock F should remain disabled. If you
are enabling Codablock F, you should disable Code 128 (see Code 128 on page
134).
Codablock F Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 120) for additional information. Minimum and Maximum
lengths = 1-2048. Minimum Default = 1, Maximum Default = 2048.
Label Code
The standard Label Code is used in libraries. Default = Off.
On
* Off
Minimum Message Length
Maximum Message Length
On

Honeywell Voyager 1602g Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-60 - 60 °
Motion tolerance (cm/s)	10
Optical sensor resolution	640 pixels
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Keys quantity	2 keys
Product color	Black
LED indicators	Yes
Housing material	Plastic
International Protection (IP) code	IP42
Battery life	12 h
Charging time	3 h
Battery voltage	3.7 V
Battery capacity	750 mAh
Power source type	Battery
Number of reads per charge	2250
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.1+EDR
Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth, USB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wireless
Mobile operating systems supported	Android, Windows Mobile, iOS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	22 mm
Width	48 mm
Height	120 mm
Weight	100 g
