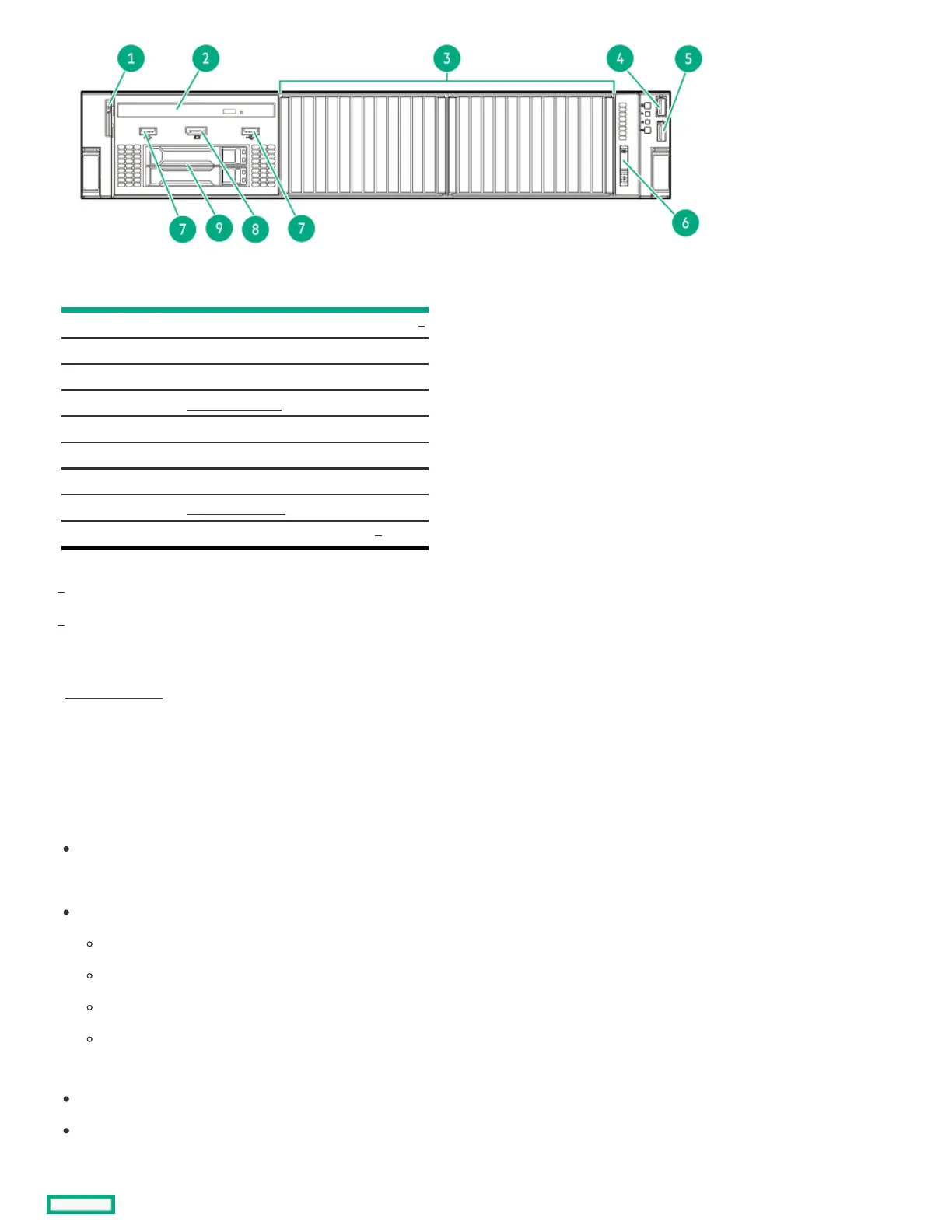

ItemItem DescriptionDescription
1 Serial number/iLO information pull tab
2 Optical drive (optional)
3 E3.S drives
4 iLO service port
5 USB 3.2 Gen 1 port
6 System Insight Display (optional)
7 USB 2.0 ports
8 DisplayPort 1.1a (optional)
9 2 SFF stacked drives (optional)
The serial number/iLO information pull tab is double-sided. One side shows the server serial number and the customer asset tag label.
The other side shows the default iLO account information.
The 2 SFF stacked drive cage option supports SAS, SATA, or U.3 NVMe drives.
SubtopicsSubtopics
iLO Service PortiLO Service Port
iLOiLO Service Port Service Port
When you have physical access to a server, you can use the Service Port to do the following:
Download the Active Health System Log to a supported USB flash drive.
When you use this feature, the connected USB flash drive is not accessible by the host operating system.
Connect a client (such as a laptop) with a supported USB to Ethernet adapter to access the following:
iLO web interface
Remote console
iLO RESTful API
CLI
When you use the iLO Service Port:
Actions are logged in the iLO event log.
The server UID flashes to indicate the Service Port status.
You can also retrieve the Service Port status by using a REST client and the iLO RESTful API.
