ResultsResults

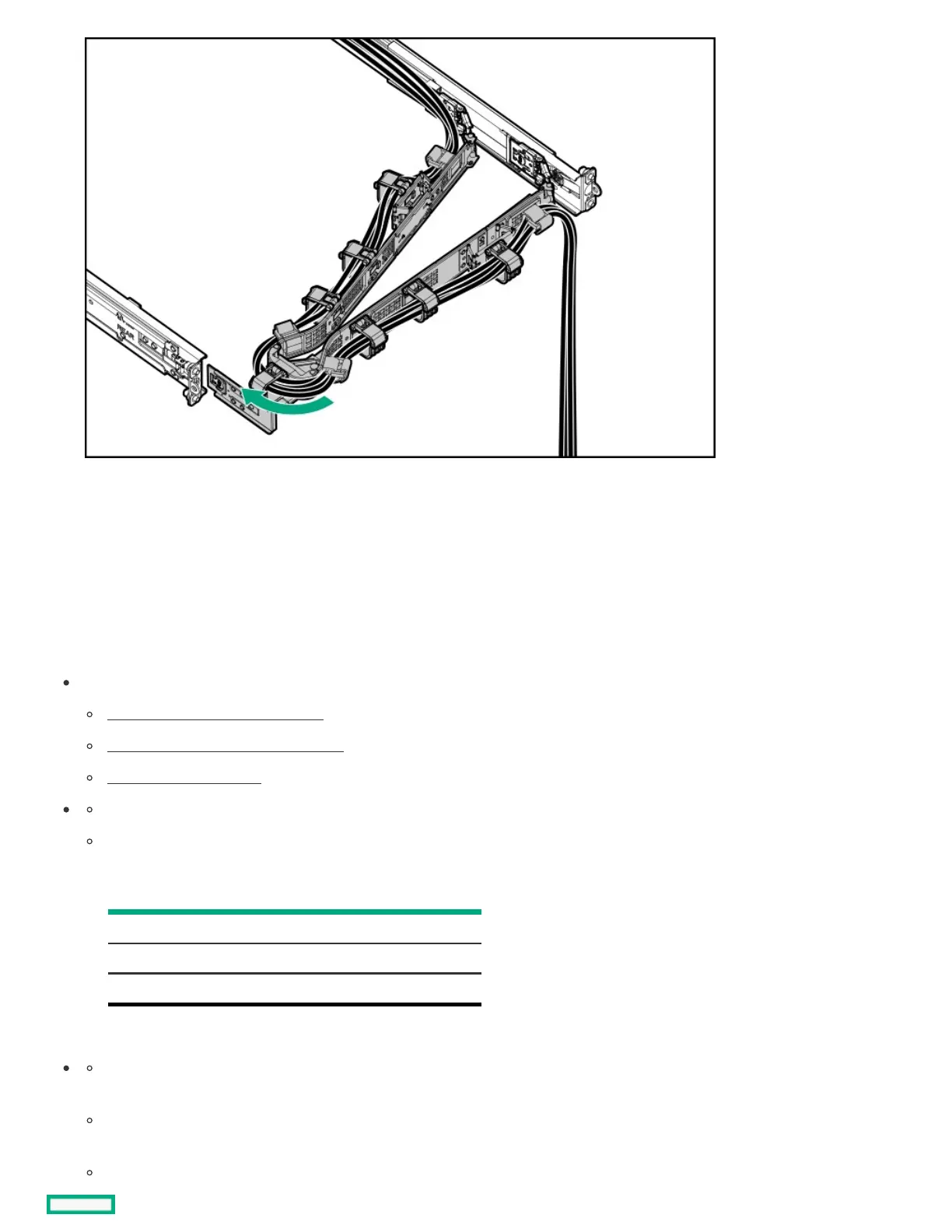

The installation is complete.
Installing a DC power supplyInstalling a DC power supply
PrerequisitesPrerequisites
Before installing a power supply, review the following:
Power supply warnings and cautions
DC power supply warnings and cautions
Power supply redundancy
Make sure that you have a Phillips No.2 screwdriver available.
Identify the wire color and corresponding wire slots on the DC power supply:
Wire colorWire color DescriptionDescription Wire slotWire slot
Red Positive return wire RTN
Black Negative input wire -48V
Green + Yellow Ground wire Safety ground
Before you install this option, make sure that you have the following items available:
If you are not using an input power cord option, the power supply cabling must be made in consultation with a licensed electrician
and be compliant with local code.
Optional P36877-B21 HPE lug kit can be purchased from an HPE authorized reseller for use with customer-supplied power cables.
(The power cable and lug kit listed below can only be used with the 1600 W -48 VDC power supply.)
If you are using an input power cord option, the P22173-B21 HPE 1600 W DC PSU power cable kit can be purchased from an
