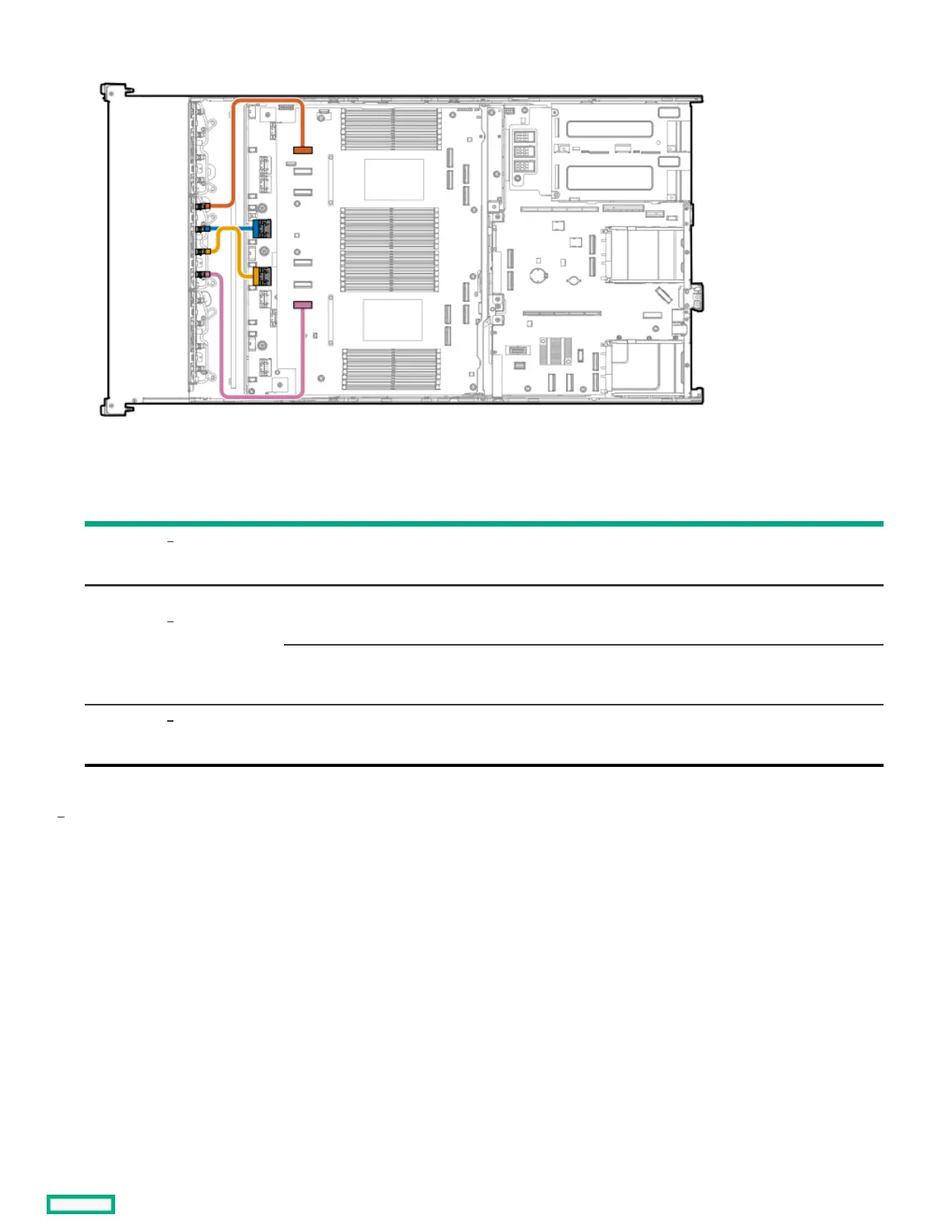

HP ProLiant DL560 Gen11 - 8 E3.S NVMe direct attach cabling

Cable part numberCable part number ColorColor FromFrom ToTo
P55348-001 Orange Box 2 port 1 x8 SlimSAS port 6 on the
processor mezzanine board
Air cooling configuration:
P55342-001
Blue Box 2 port 2 x8 SlimSAS port 5 on the system
board
Gold Box 2 port 3 x8 SlimSAS port 4 on the system
board
P55349-001 Pink Box 2 port 4 x8 SlimSAS port 1 on the
processor mezzanine board
Option kit: P58338-B21
8 8 E3.SE3.S NVMe direct attach cabling NVMe direct attach cabling
This is for dual-processor, air cooling configuration only
1
1
1
1
HPE ProLiant DL560 Gen11 Server User Guide 192
