HP ProLiant DL560 Gen11 - Drive box 2 cabling; 8 SFF x4 NVMe direct attach cabling; 8 SFF x4 NVMe direct attach cabling for the processors 2 and 4

Option kit: P55320-B21
Drive box 2 cablingDrive box 2 cabling

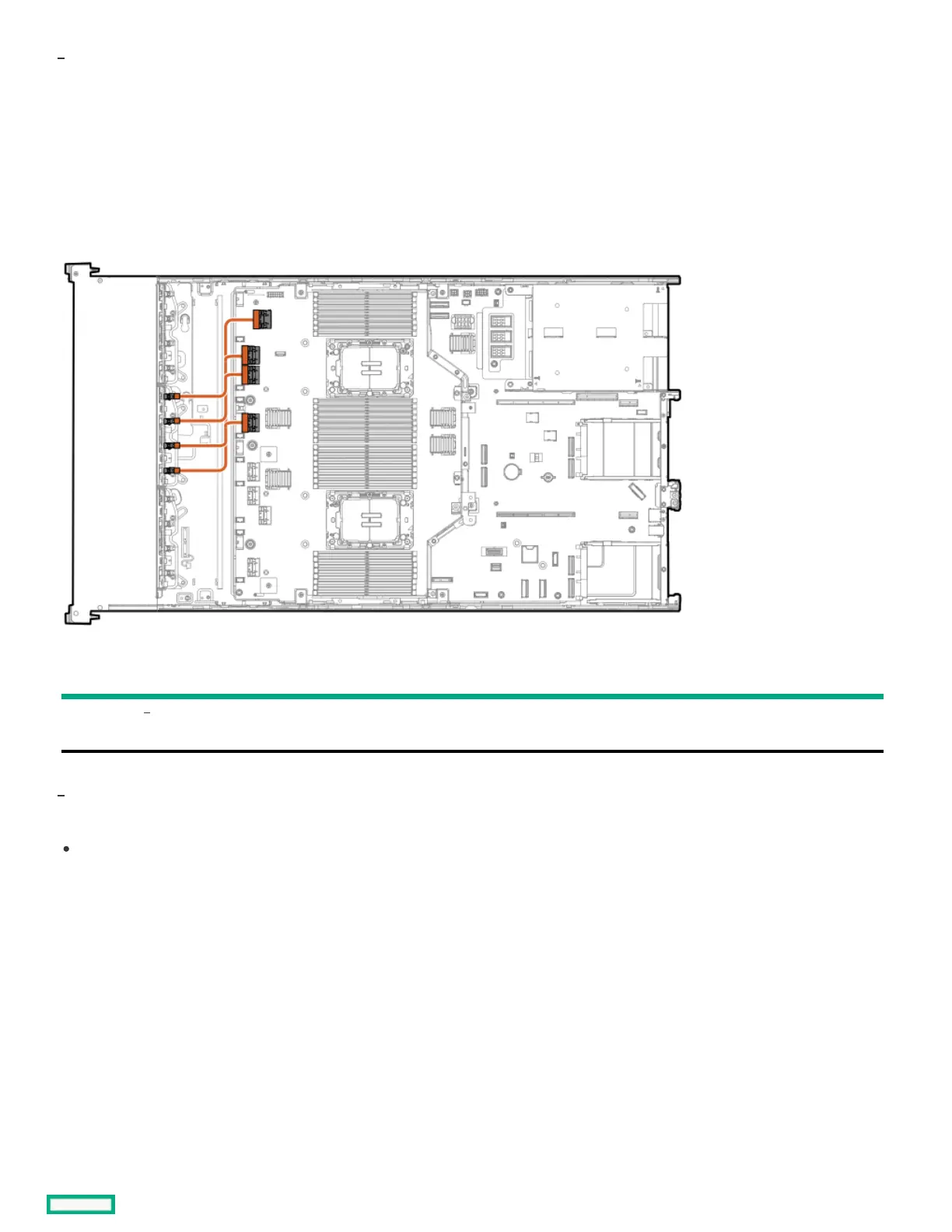

8 SFF x4 NVMe direct attach cabling8 SFF x4 NVMe direct attach cabling
This is for dual-processor, air cooling configuration only.
Cable part numberCable part number ColorColor FromFrom ToTo
P55345-001 Orange Box 2 ports 1–4 x8 SlimSAS ports 5–8 (from
bottom to top)
Option kit: P60005-B21
8 SFF x4 NVMe direct attach cabling for the processors 2 and 48 SFF x4 NVMe direct attach cabling for the processors 2 and 4
When box 1 is the universal media bay
1
1
1
