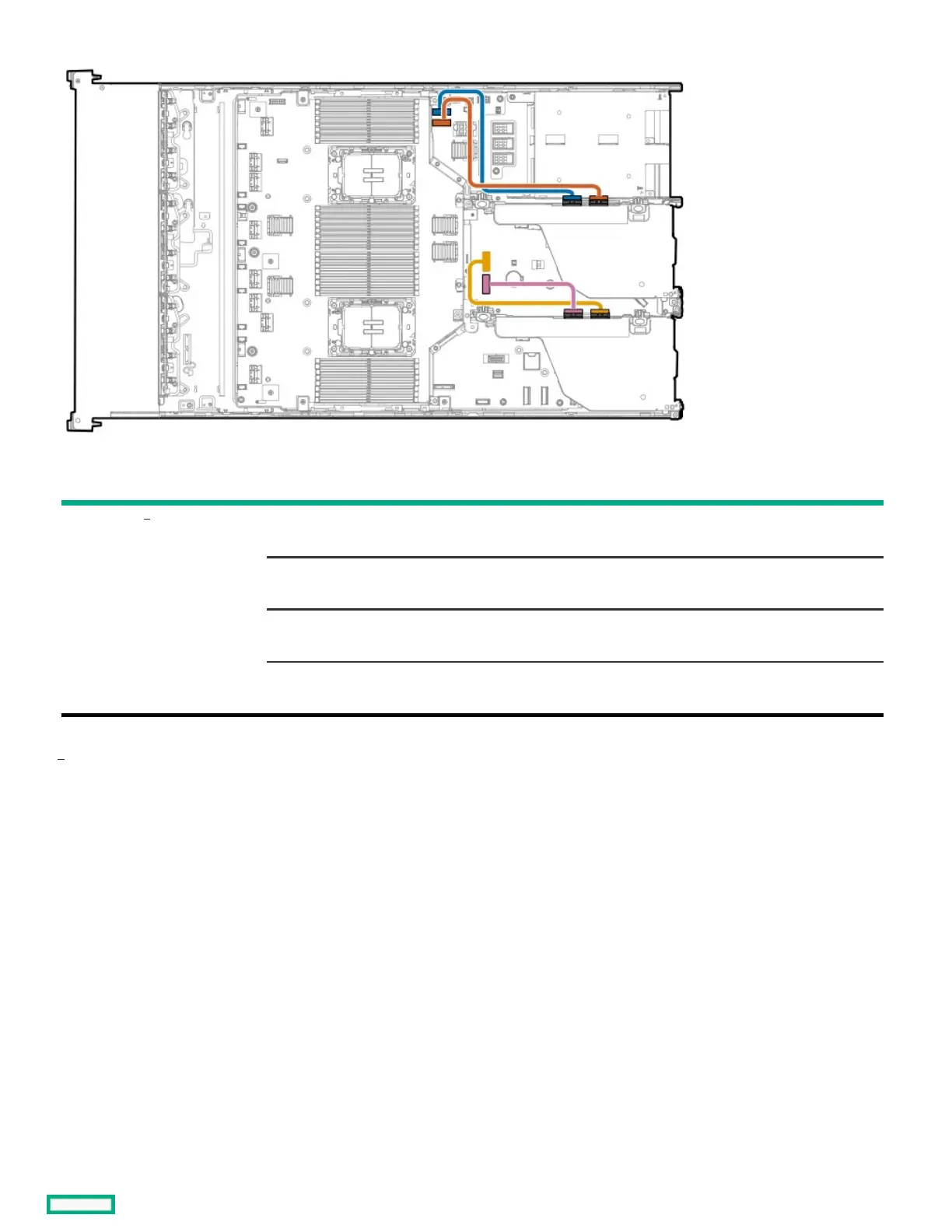

HP ProLiant DL560 Gen11 - For the processors 3 and 4

Cable part numberCable part number ColorColor FromFrom ToTo
P46034-001 Orange LP SlimSAS connector 1 on the
secondary riser
Socket 2 MCIO connector 1
Blue LP SlimSAS connector 2 on the
secondary riser
Socket 2 MCIO connector 2
Gold LP SlimSAS connector 1 on the
primary riser
Socket 1 MCIO connector 2
Pink LP SlimSAS connector 2 on the
primary riser
Socket 1 MCIO connector 1
Option kit: P55315-B21
For the processors 3 and 4For the processors 3 and 4
1
1
