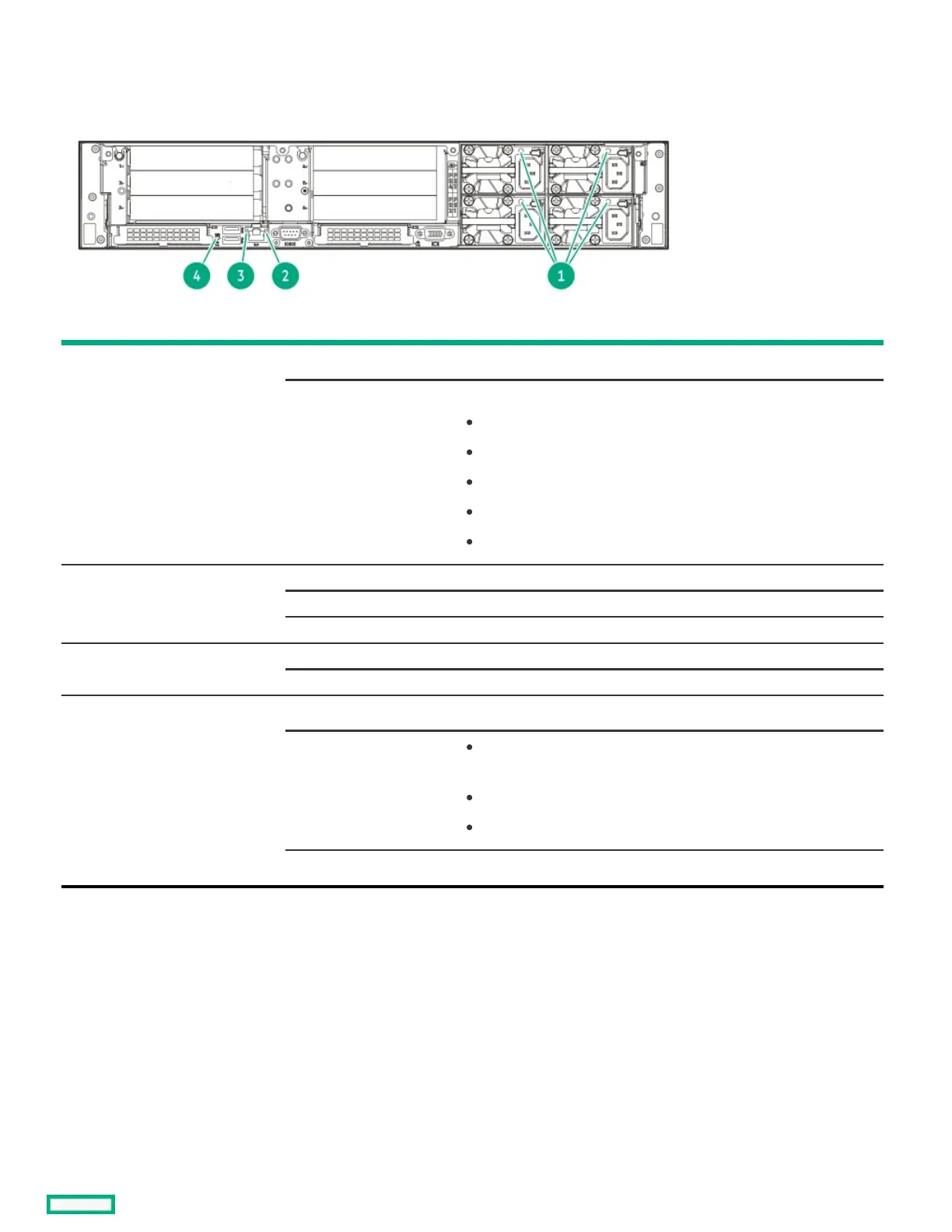

Rear panel LEDsRear panel LEDs
ItemItem LEDLED StatusStatus DefinitionDefinition
1 Power supply Solid green The power supply is operating normally.
Off One or more of the following conditions exists:
Power is unavailable
Power supply failure
Power supply is in standby mode
Power supply error
The front I/O cable is disconnected.
2 iLO status Solid green Lined to network
Flashing green Network active
Off No network activity
3 iLO link Solid green Network link
Off No network link
4 UID Solid blue Activated
Flashing blue
1 flash per sec—Remote management or firmware upgrade in
progress
4 flashes per sec—iLO manual reboot sequence
8 flashes per sec—iLO manual reboot sequence in progress
Off Deactivated
System board componentsSystem board components
The grayed out components in the system board image are not for use in this server.
