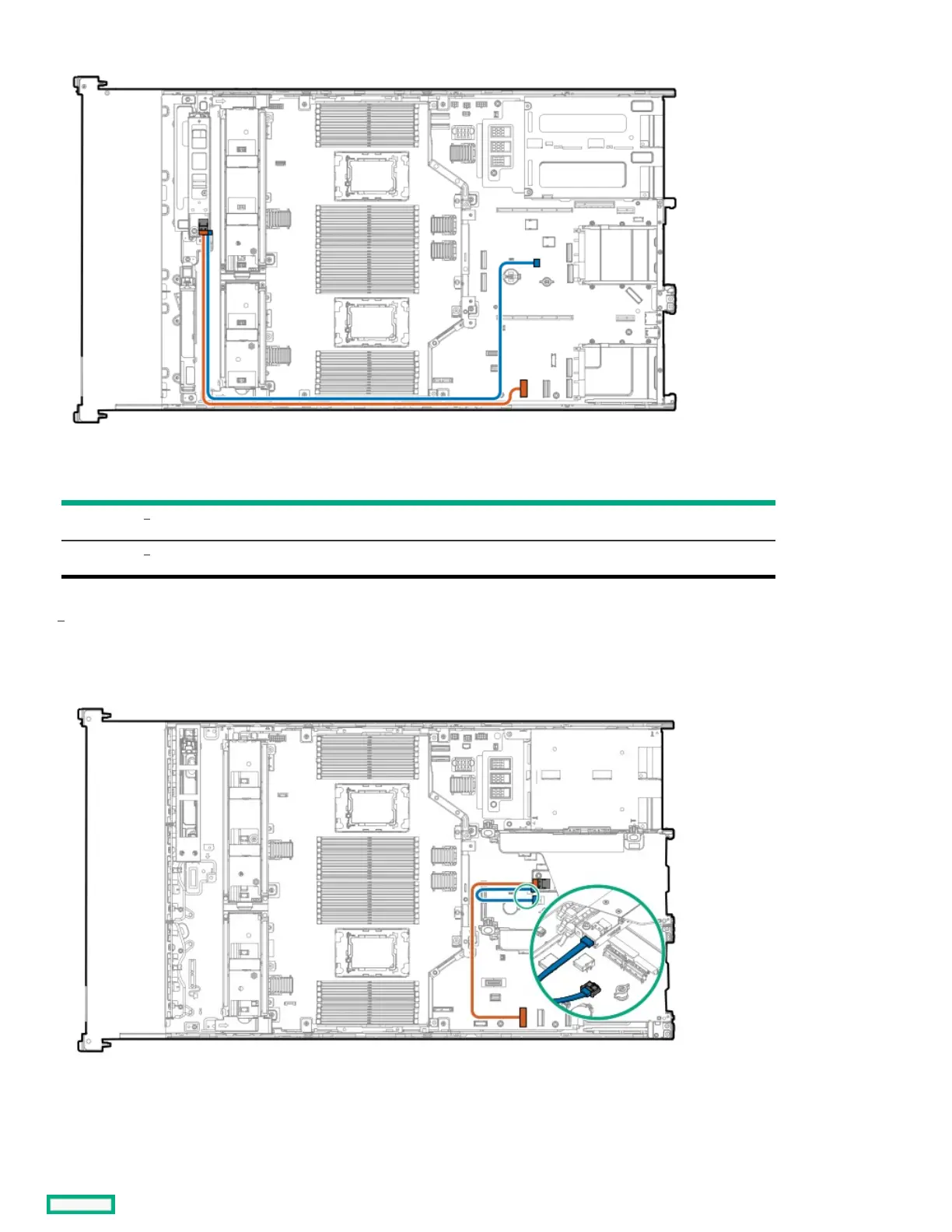

HP ProLiant DL560 Gen11 - Rear HPE NS204 i Boot Device

To Next Page

To Previous Page

Cable part numberCable part number ColorColor FromFrom ToTo

P54092-001 Orange Boot device signal connector PCH LP SlimSAS connector 1

P48956-001 Blue Boot device power connector NS204i-u power connector

Option kit: P55549-B21

Rear Rear HPEHPE NS204i Boot Device NS204i Boot Device

HPE ProLiant DL560 Gen11 Server User Guide 214
