HP ProLiant DL560 Gen11 - Energy pack cabling; Storage controller backup power cabling; Storage controller backup power cabling from type-o storage controllers

P54802-B21

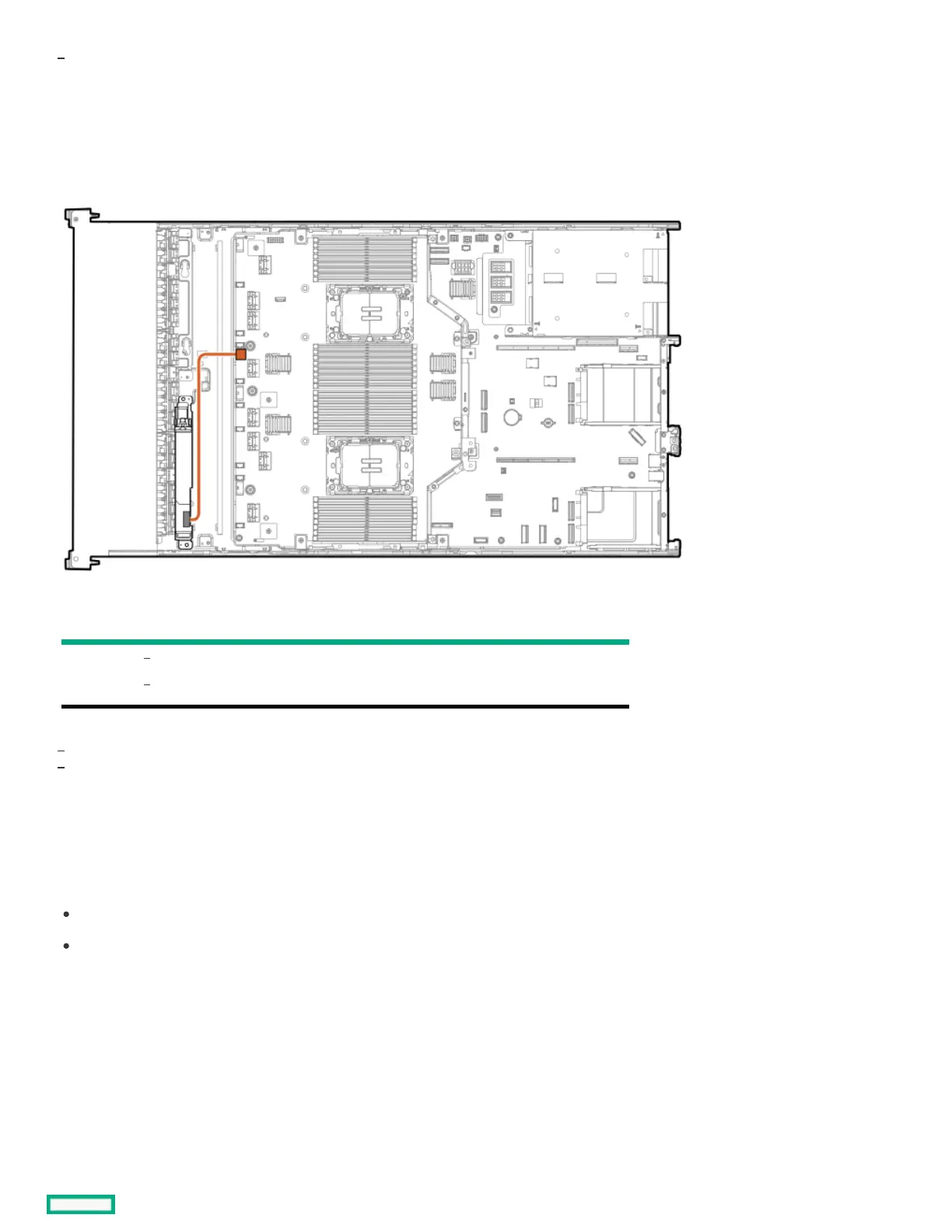

Energy pack cablingEnergy pack cabling
Cable part numberCable part number ColorColor FromFrom ToTo
876851-001
P02378-001
Orange Energy pack Energy pack connector
HPE 96W Smart Storage Battery. Option kit: P01367-B21
HPE Smart Hybrid Capacitor. Option kit: P02381-B21
Storage controller backup power cablingStorage controller backup power cabling
The exact route of the storage controller backup power cabling will depend on:
The riser slot where the controller is installed
The location of the storage controller backup power connector on the controller
Use the following diagrams for reference only.
Storage controller backup power cabling from type-o storage controllersStorage controller backup power cabling from type-o storage controllers
1
1
2
1
2
HPE ProLiant DL560 Gen11 Server User Guide 211
