ItemItem DescriptionDescription

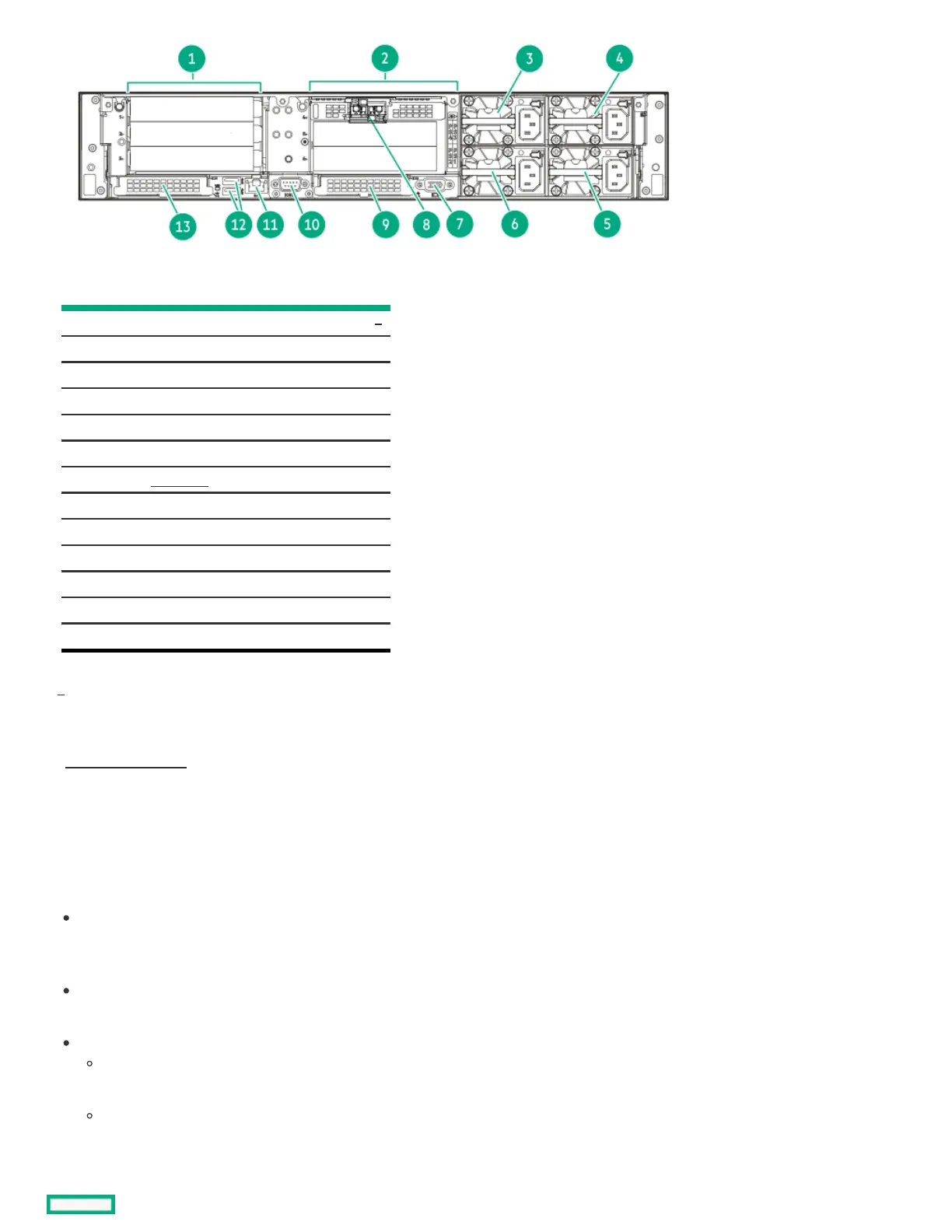

1 Primary riser slots 1–3 top to bottom
2 Secondary riser slots 4–6 top to bottom
3 Power supply 4 (PS4)
4 Power supply 3 (PS3)
5 Power supply 1 (PS1)
6 Power supply 2 (PS2)
7 VGA port
8 NS204i-u boot device (optional)
9 Slot 15 OCP
10 Serial port (optional)
11 iLO management port
12 USB 3.2 Gen 1 ports
13 Slot 14 OCP
When installing a single riser board, install it on the primary riser cage.
SubtopicsSubtopics
Display device setupDisplay device setup
Display device setupDisplay device setup
This server supports both VGA port and DisplayPort 1.1a. Before connecting a display device to this server, review the information below.
Whenever possible, use the same display connection type. For example, if your PC or monitor only has a VGA output, connect it to the
server VGA port. Use of any kind of adapter or converter cable or dongle might lead to decreased display quality or a lag over the
connection.
DisplayPort connection: When connecting an HDMI or DVI display to the DisplayPort, use an active type adapter. Passive type adapter—
marked with the DP++ symbol—is not supported.
Display output modes:
If you connect two display devices to the VGA port and DisplayPort, the same image is shown on both devices—screen mirroring
mode.
The embedded video controller in the iLO 6 chipset does not support dual display or screen extension mode. To enable dual display
mode, install a compatible PCIe graphics card that supports this feature in the expansion slot.
