HP ProLiant DL560 Gen11 - 8 SFF x1 SAS drive controller cabling: Type-o controller in Slot 14; 8 SFF x2 NVMe drive controller cabling: Type-o controller in Slot 15

Cable part numberCable part number ColorColor FromFrom ToTo
P55371-001 Orange Box 2 ports 1–3 x8 SlimSAS ports 4–6 (from
bottom to top) on the processor
mezzanine board
Air cooling configuration:
P59130-001
Liquid cooling configuration:
P55355-001
Blue Box 2 ports 5–6 x8 SlimSAS ports 5–7 (from
bottom to top) on the system
board
Option kit: P55328-B21
Option kit: P55325-B21

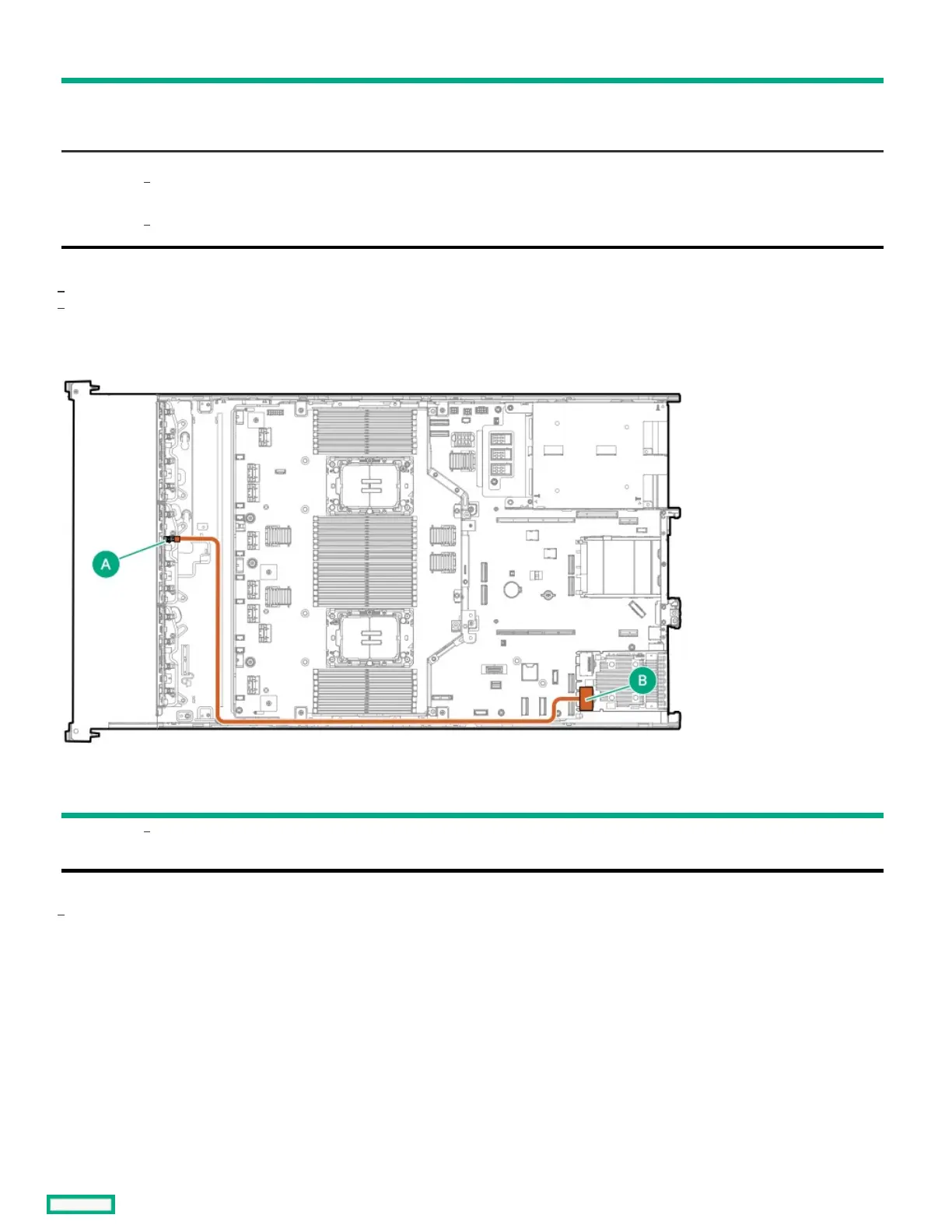

8 SFF x1 SAS drive controller cabling: Type-o controller in Slot 148 SFF x1 SAS drive controller cabling: Type-o controller in Slot 14
Cable part numberCable part number ColorColor FromFrom ToTo
P55357-001 Orange Box 2 port 1 Type-o storage controller port 1
in Slot 14
Option kit: P60009-B21
8 SFF x2 NVMe drive controller cabling: Type-o controller in Slot 158 SFF x2 NVMe drive controller cabling: Type-o controller in Slot 15
2
1
1
2
1
1
HPE ProLiant DL560 Gen11 Server User Guide 194
