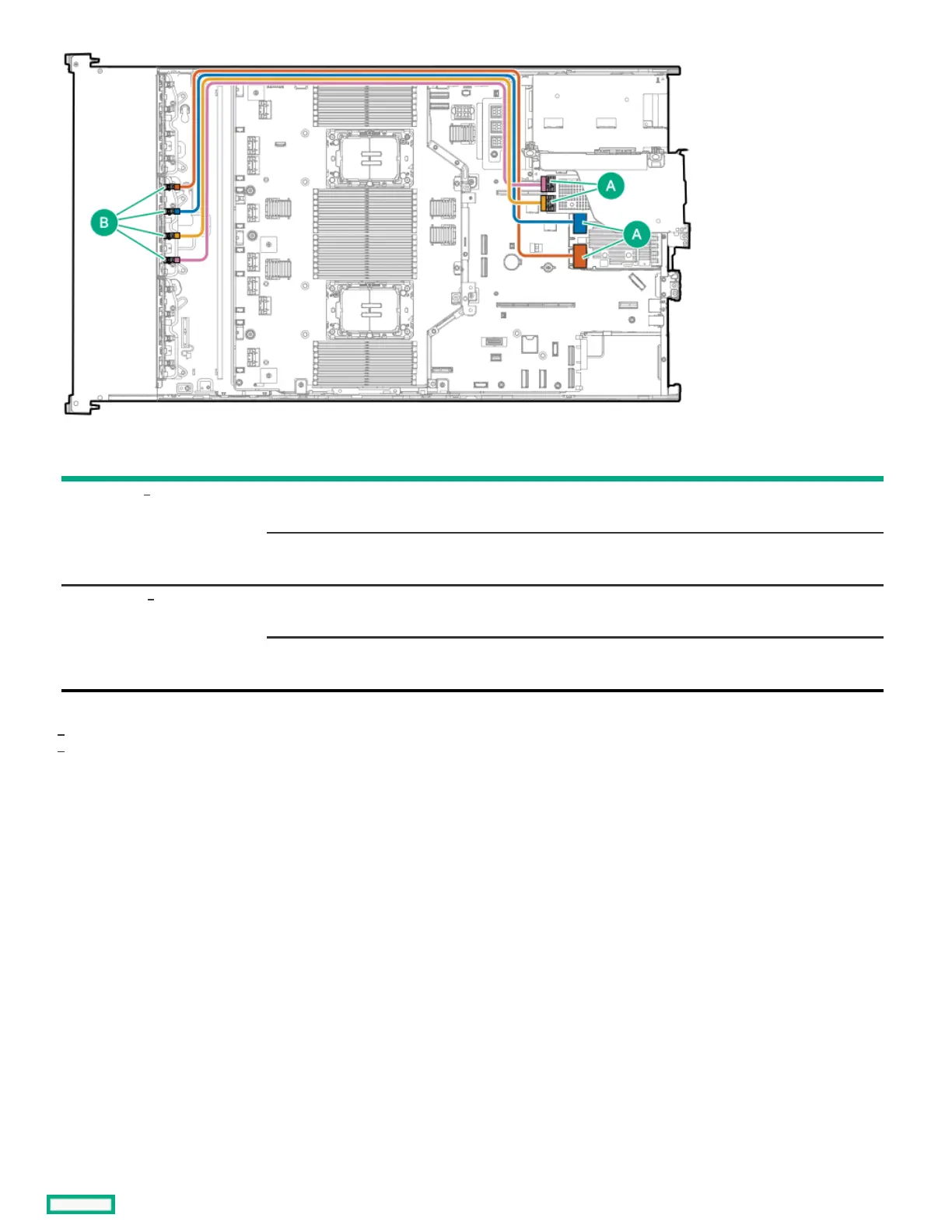

HP ProLiant DL560 Gen11 - Drive box 3 cabling; 8 SFF x1 SAS drive: Onboard SATA cabling

Cable part numberCable part number ColorColor FromFrom ToTo
P55358-001 Orange Box 2 port 1 Type-o storage controller port 1
in Slot 15
Blue Box 2 port 2 Type-o storage controller port 2
in Slot 15
P55362-001 Gold Box 2 port 3 Secondary type-p storage
controller port 1
Pink Box 2 port 4 Secondary type-p storage
controller port 2
Option kit: P59142-B21
Option kit: P55320-B21
Drive box 3 cablingDrive box 3 cabling
8 SFF x1 SAS drive: Onboard SATA cabling8 SFF x1 SAS drive: Onboard SATA cabling
1
2
1
2
HPE ProLiant DL560 Gen11 Server User Guide 200
