HPE ProLiant ML350 Gen11

To Next Page

To Previous Page

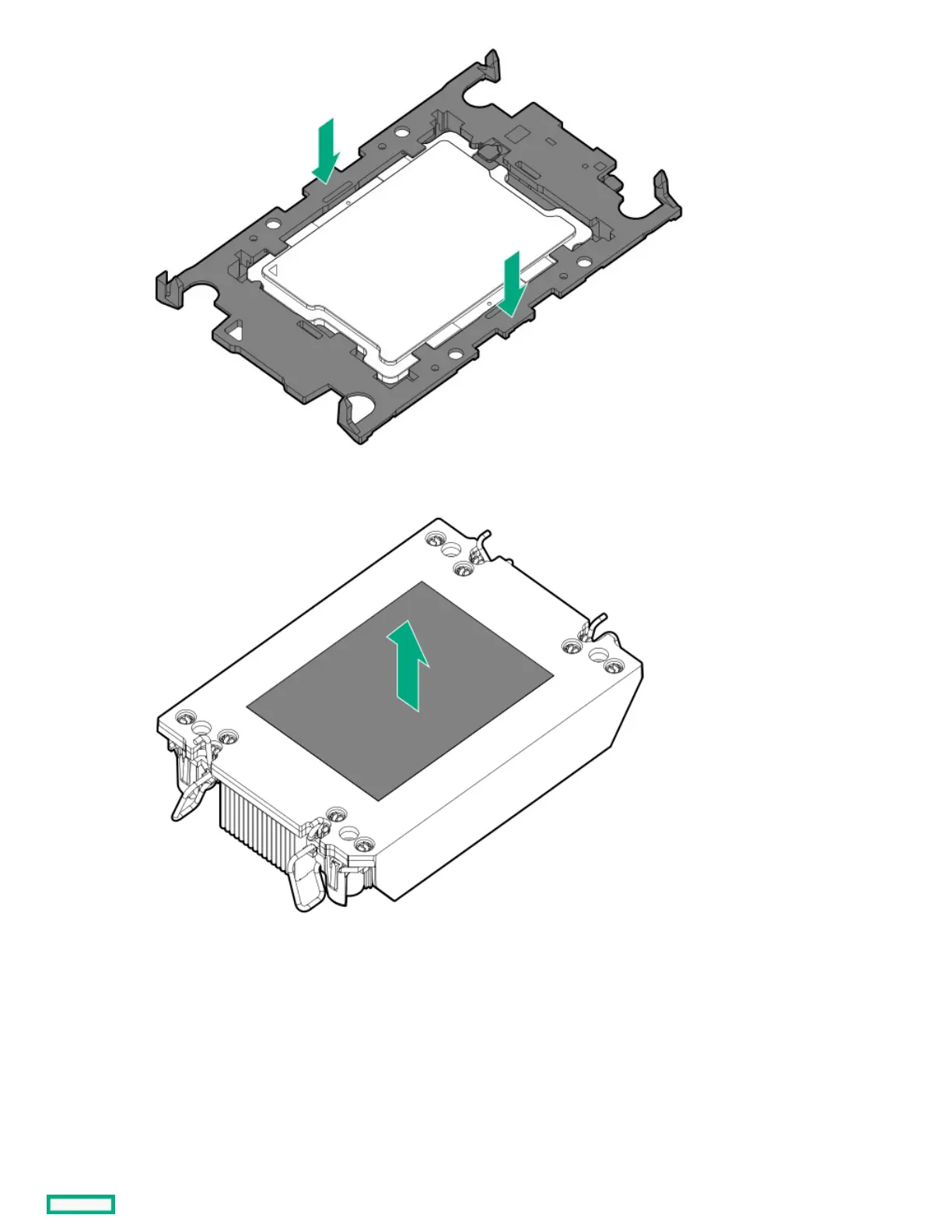

3. Remove the protective film from the thermal interface material.

4. Set the anti-tilt wires to the locked position.

HPE ProLiant ML350 Gen11 Server Maintenance and Service Guide 101
