b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
If the server is in tower mode, place the server on a flat, level surface with the access panel facing up .
If the server is in rack mode, remove the server from the rack .
5. Remove the access panel.
6. Do the following:
If replacing the adapter on Slot 14, remove the primary riser cage .
If replacing the adapter on Slot 15, remove the secondary riser cage.

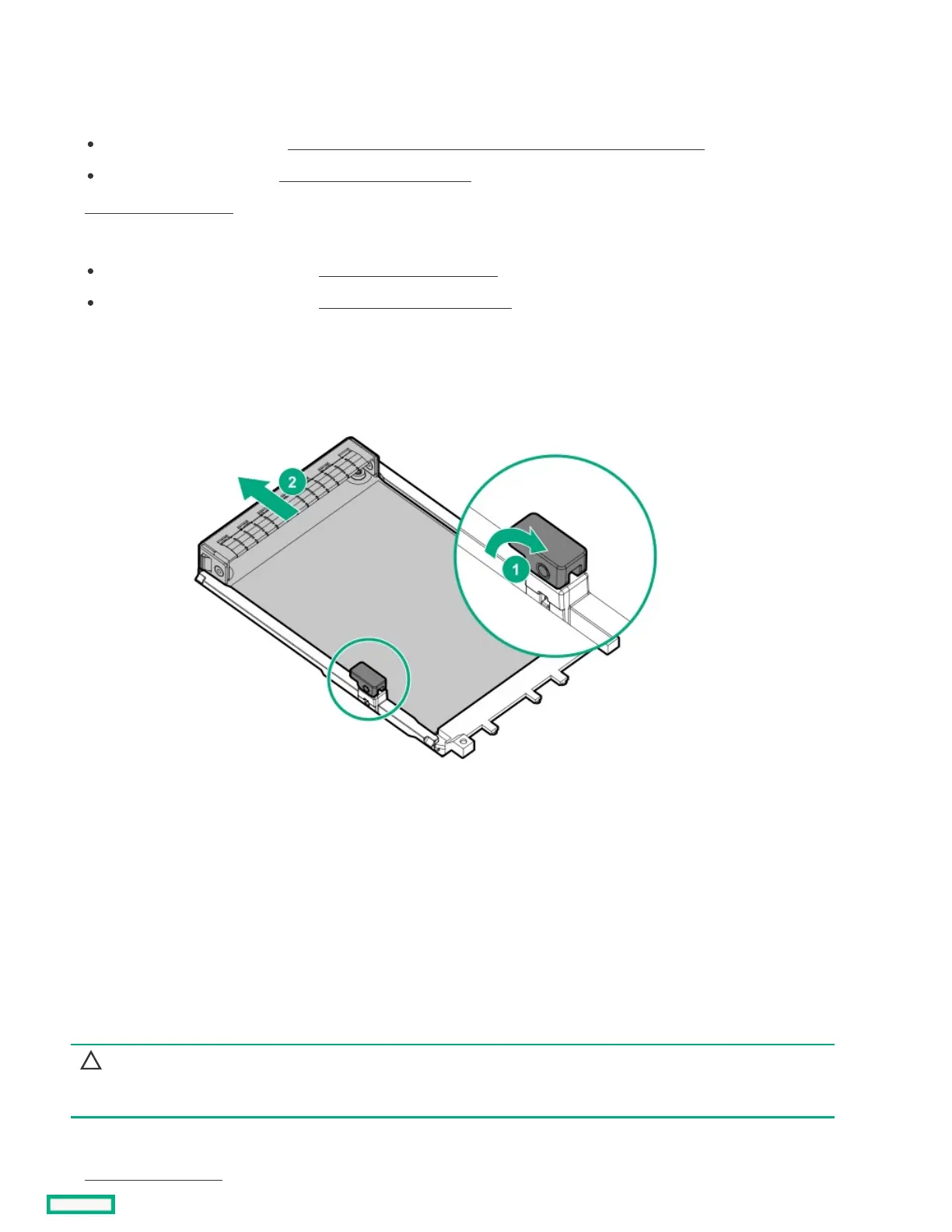

7. Remove the OCP NIC 3.0 adapter:
a. Rotate the locking pin to the open (vertical) position (callout 1).
b. Slide the adapter out of the bay (callout 2).
ResultsResults
To replace the component, reverse the removal procedure.
Removing and replacing an OCP slot blankRemoving and replacing an OCP slot blank
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a T-10 Torx screwdriver available.
About this taskAbout this task
CAUTION:CAUTION:
The port blank provides EMI shielding and helps maintain proper thermal status inside the server. Do not operate the server
when a port blank is removed without the corresponding I/O port option installed.
ProcedureProcedure
1. Power down the server.
