HPE ProLiant ML350 Gen11

To Next Page

To Previous Page

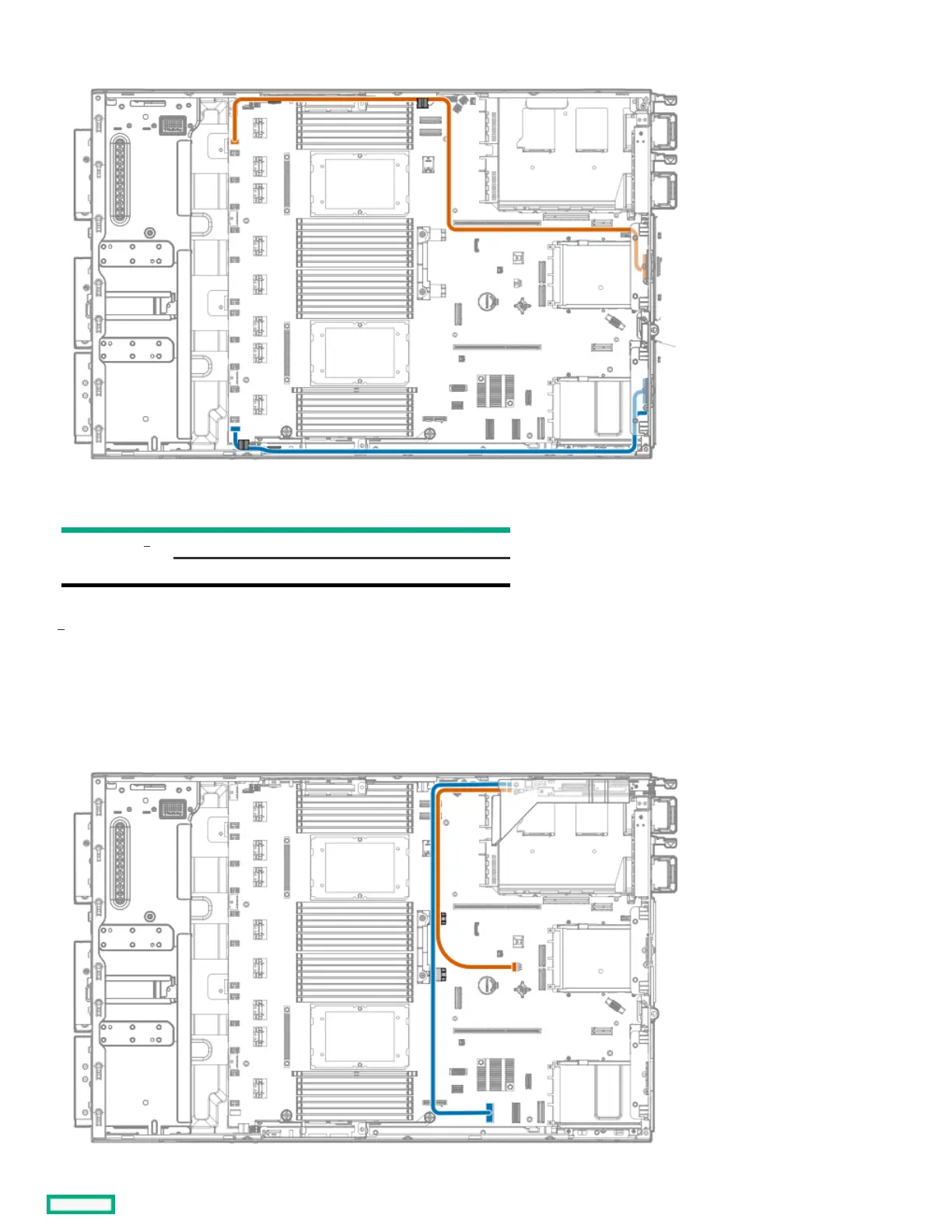

External fans 9–10External fans 9–10

Cable part numberCable part number ColorColor FromFrom ToTo

P45291-001 Orange External fan 9 Fan connector 9

Blue External fan 10 Fan connector 10

Option kit: P47220-B21

HPEHPE NS204i Boot Device NS204i Boot Device cabling cabling

HPE ProLiant ML350 Gen11 Server Maintenance and Service Guide 228
