HPE ProLiant ML350 Gen11

To Next Page

To Previous Page

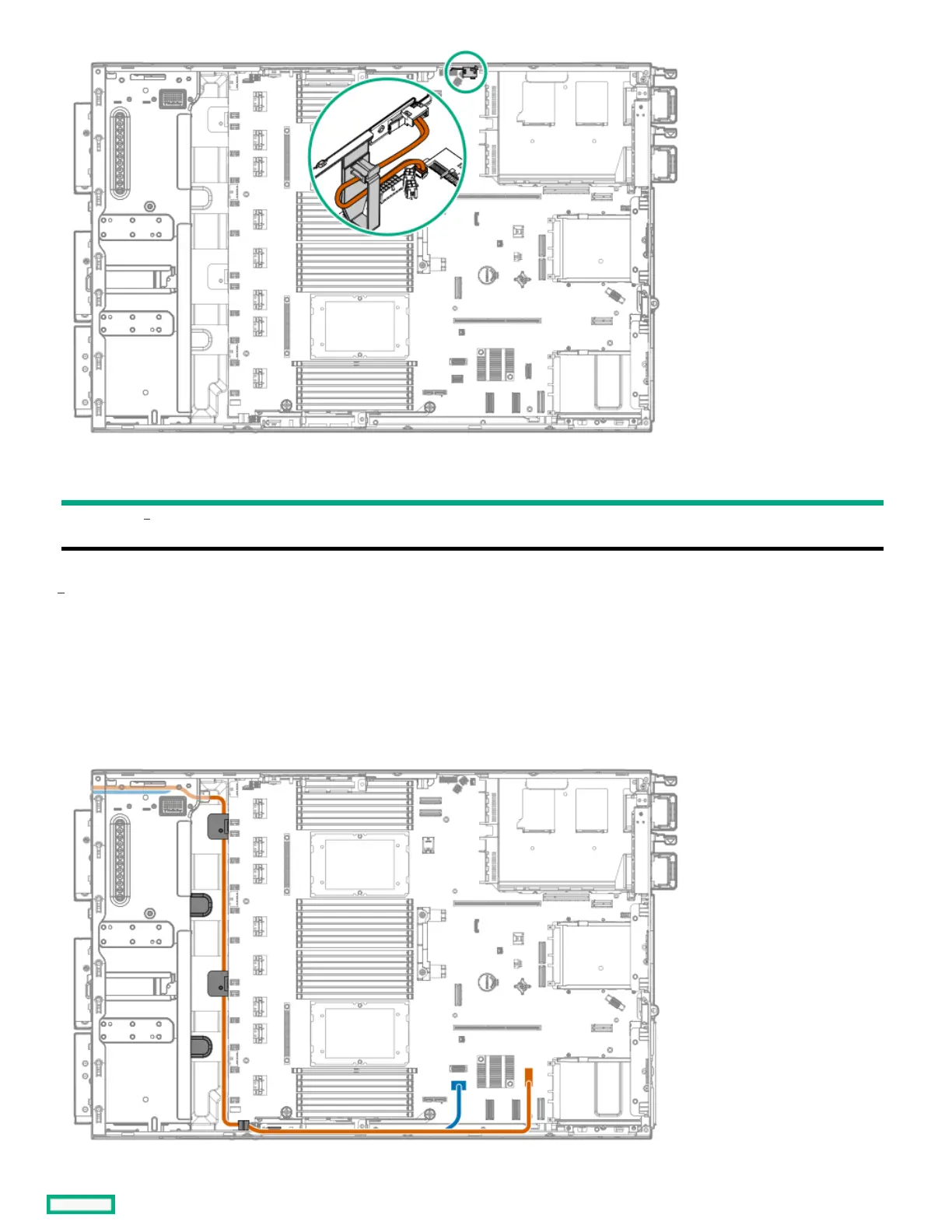

Cable part numberCable part number ColorColor FromFrom ToTo

P47751-001 Orange Chassis intrusion detection

switch

Chassis intrusion detection

switch connector

Option kit: P47226-B21

Front I/O cablingFront I/O cabling

Front I/O cables are preinstalled in the server.

HPE ProLiant ML350 Gen11 Server Maintenance and Service Guide 232
