PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
ProcedureProcedure
1. Remove the front bezel.
2. Power down the server.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Do one of the following:
If the server is in tower mode, place the server on a flat, level surface with the access panel facing up .
If the server is in rack mode, remove the server from the rack .
6. Remove the access panel.
7. Remove the fan cage.
8. Disconnect the front I/O cables from the system board .
9. If installed, disconnect the SATA-power Y-cable from the optical drive.

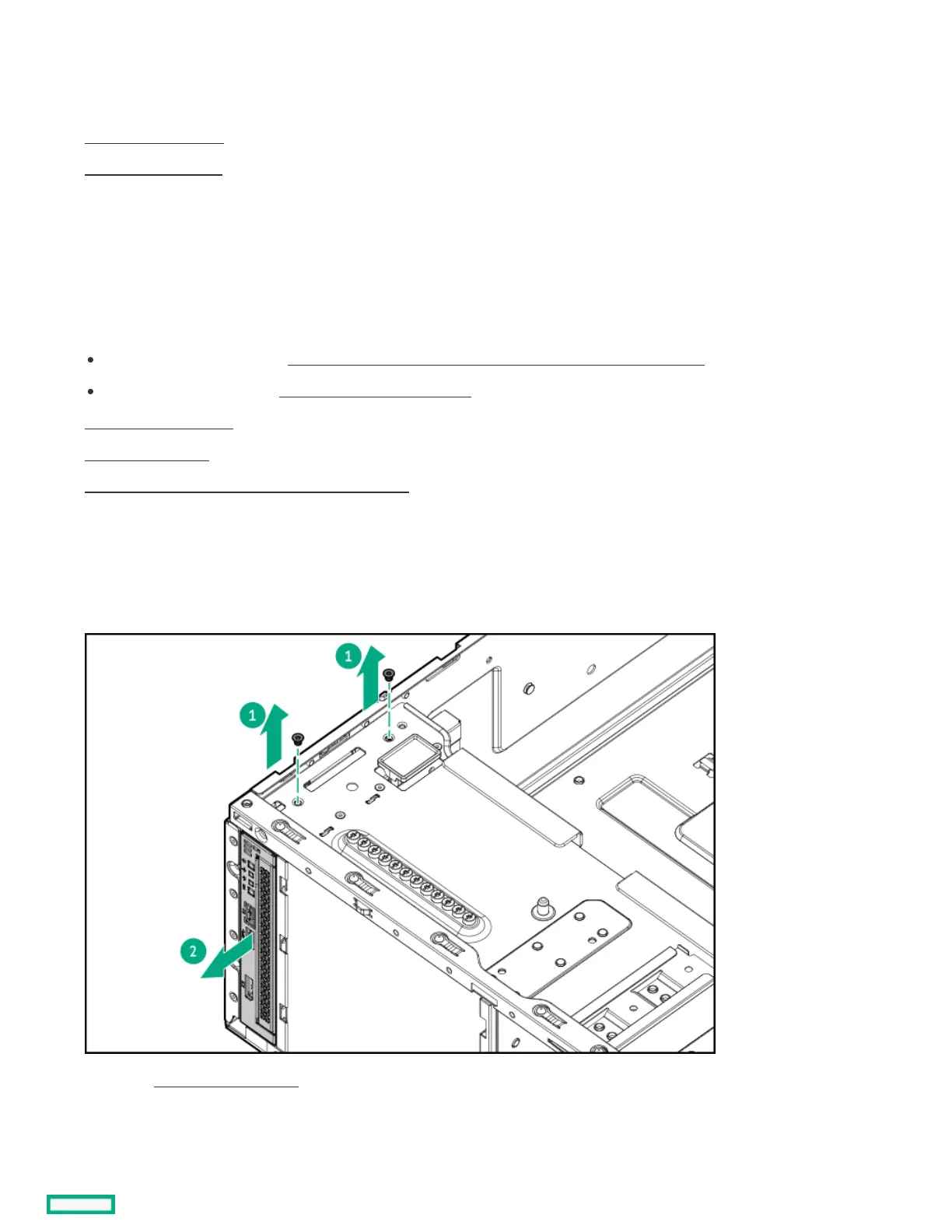

10. Remove the front I/O module:
a. Remove the front I/O cage screws (callout 1).
b. Remove the front I/O module from the chassis (callout 2).
11. If installed, remove the optical drive.
ResultsResults
To replace the component, reverse the removal procedure.
