Cable part numberCable part number ColorColor FromFrom ToTo
P54092-001 Blue Boot device signal connector PCH LP SlimSAS port 1
P54089-001 Orange Boot device power connector NS204i-u power connector
Option kit: P48403-B21
OCP upgrade cablingOCP upgrade cabling

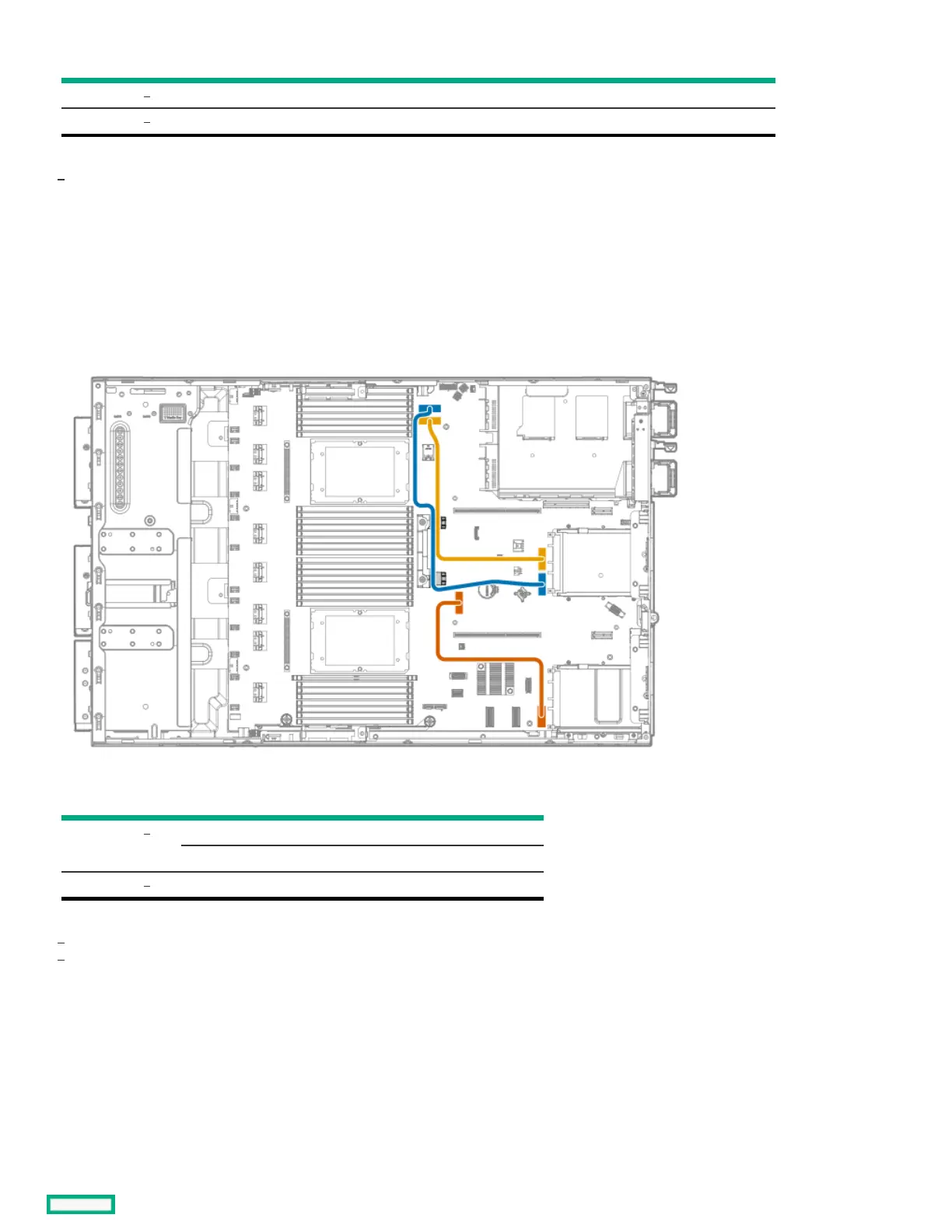

OCP bandwidth upgrade cablingOCP bandwidth upgrade cabling
The OCP bandwidth upgrade cable is required to support a x16 OCP expansion option.
Cable part numberCable part number ColorColor FromFrom ToTo
P43734-001 Gold CPU 2 MCIO port 1 Slot 15 OCP port 1
Blue CPU 2 MCIO port 2 Slot 15 OCP port 2
P43736-001 Orange CPU 1 MCIO port 1 Slot 14 OCP port 2
Option kit: P47231-B21
Option kit: P47230-B21
Dual OCP slot upgrade cabling for single-processor serverDual OCP slot upgrade cabling for single-processor server
1
1
1
1
2
1
2
