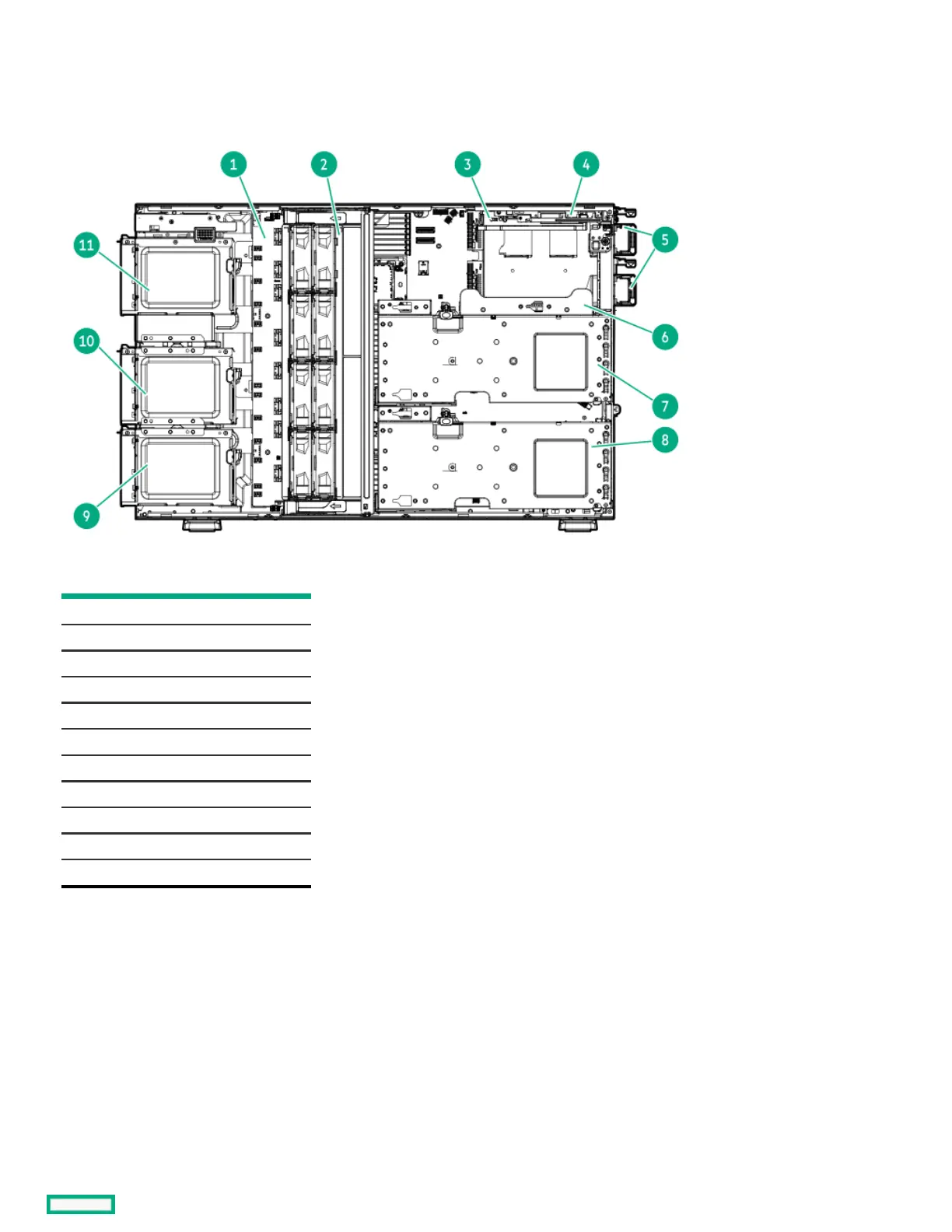

Internal componentsInternal components
ItemItem DescriptionDescription
1 System board
2 Fan cage
3 Energy pack
4 NS204i-u device
5 Flexible Slot power supply (2)
6 Tertiary riser
7 Secondary riser cage
8 Primary riser cage
9 Box 3
10 Box 2
11 Box 1
Riser board componentsRiser board components
The PCIe5 4 x8 and PCIe5 2 x16 riser options can be installed in either the primary or the secondary riser location. This server supports
mixed PCIe5 4 x8 + 2 x16 risers.
PCIe5 4 x8 riser componentsPCIe5 4 x8 riser components
