HPE ProLiant ML350 Gen11

Cable part numberCable part number ColorColor FromFrom ToTo
P45296-001 Orange Box 1 port 1 Primary type-p storage
controller port 2
Blue Box 2 port 1 Primary type-p storage
controller port 1
Option kit: P47233-B21
8 SFF NVMe x4 drive controller cabling8 SFF NVMe x4 drive controller cabling
Cable part numberCable part number ColorColor FromFrom ToTo
P45297-001 Orange Box 3 port 1 Primary type-p storage controller
port 1
Blue Box 3 port 2 Primary type-p storage controller
port 2
Gold Box 3 port 3 Primary type-p storage controller
port 3
Pink Box 3 port 4 Primary type-p storage controller
port 4
Option kit: P47234-B21
This is a splitter cable. Ports 1–2 use one cable; Ports 3–4 use one cable.

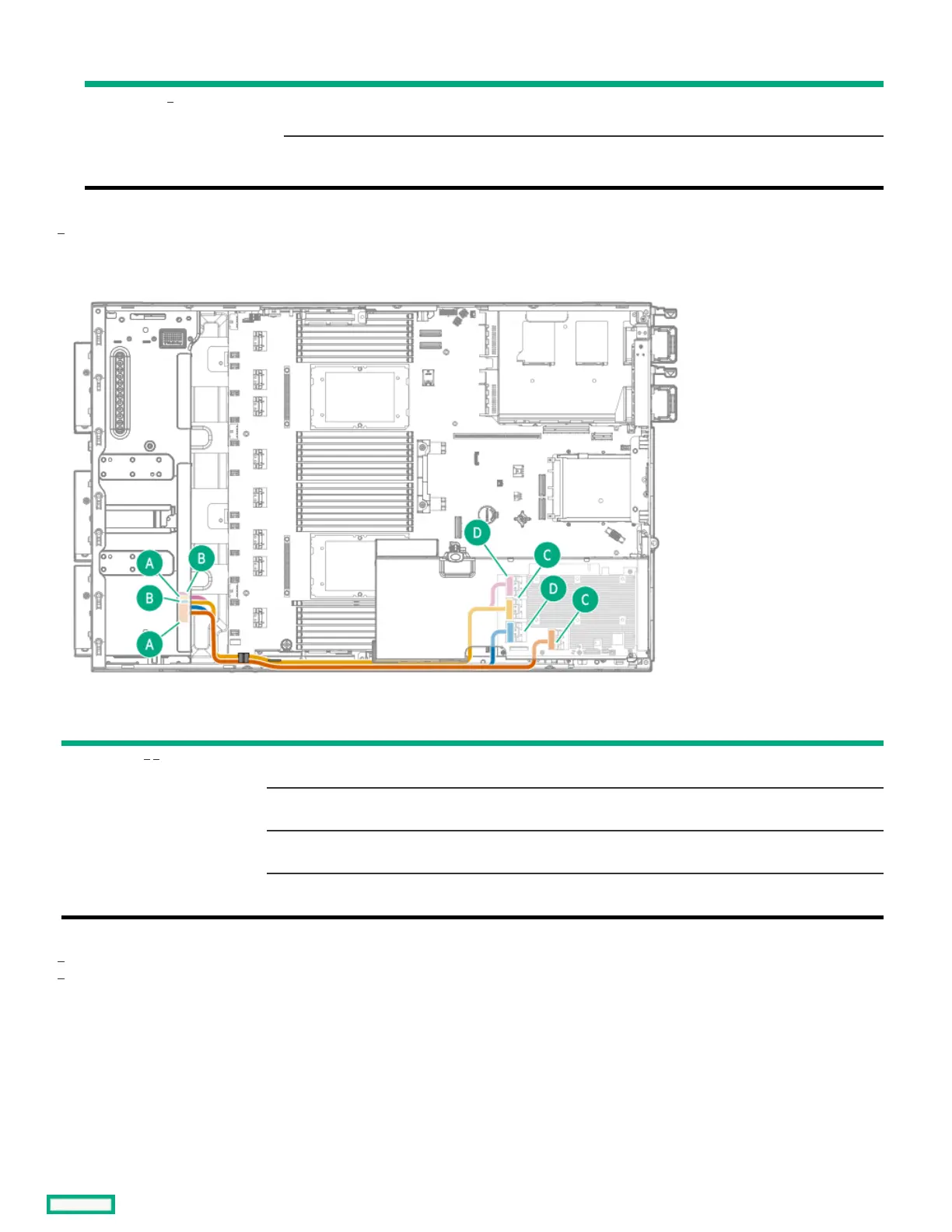

4 LFF + 8 SFF / 4 LFF + 16 SFF drive controller cabling4 LFF + 8 SFF / 4 LFF + 16 SFF drive controller cabling
1
1
1 2
1
2
