HPE ProLiant ML350 Gen11

To Next Page

To Previous Page

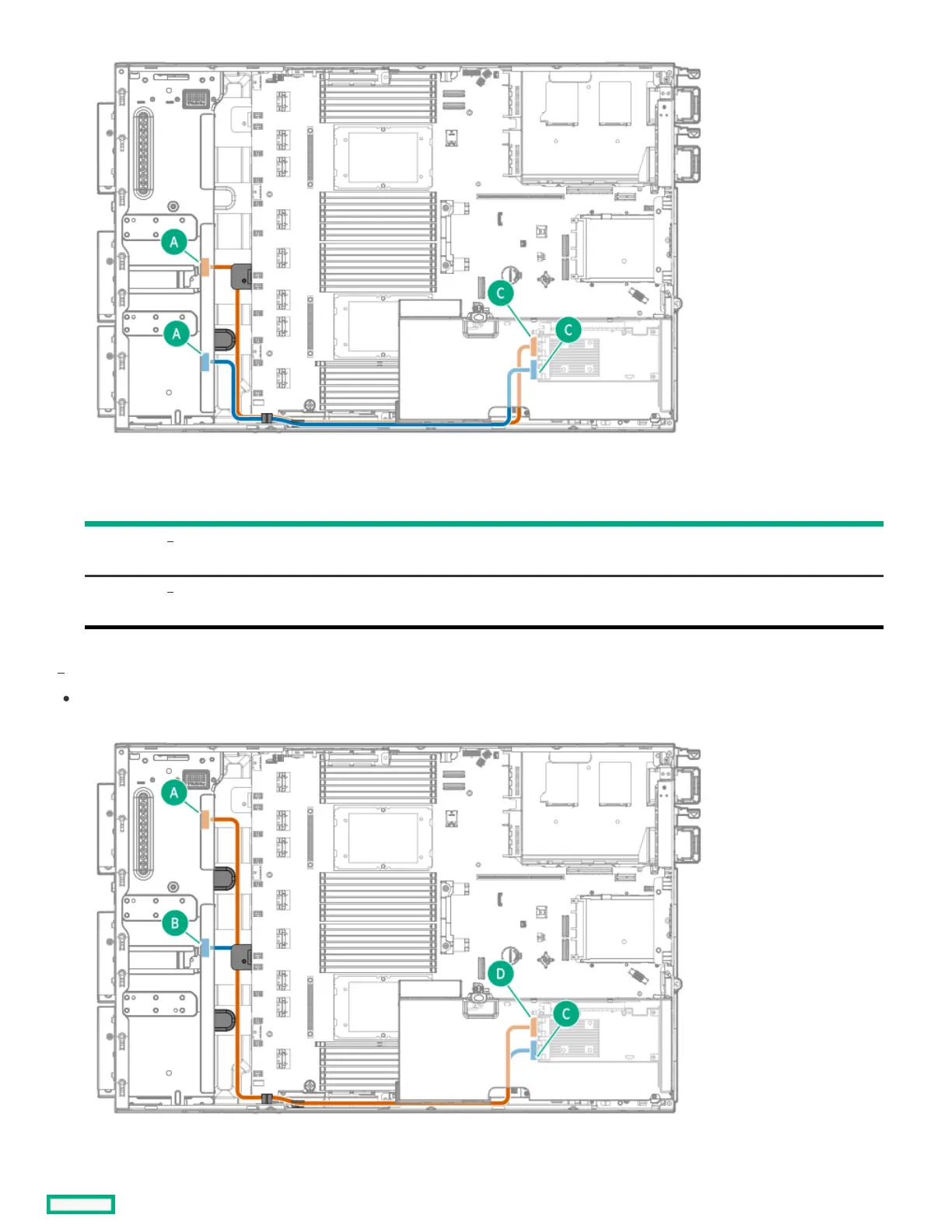

Cable part numberCable part number ColorColor FromFrom ToTo

P45296-001 Orange Box 2 port 1 Primary type-p storage

controller port 2

P45297-001 Blue Box 3 port 1 Primary type-p storage

controller port 1

Option kit: P47233-B21

Box 1 and Box 2

HPE ProLiant ML350 Gen11 Server Maintenance and Service Guide 219
