b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. If the server is in tower mode, place the server on a flat, level surface with the access panel facing up .
5. If the server is in rack mode, do one of the following:
Extend the server from the rack .
Remove the server from the rack .
6. Remove the tertiary riser slot cover:

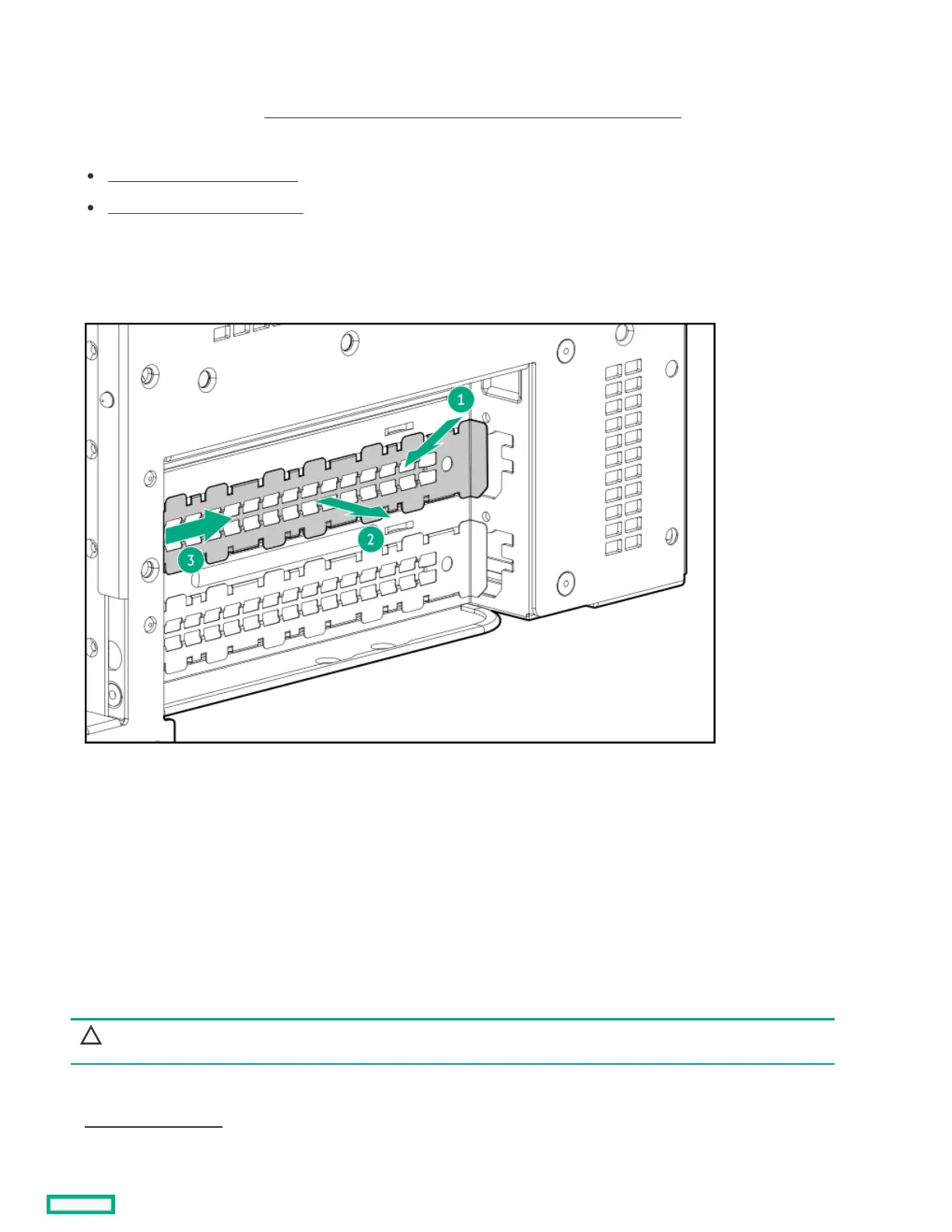

a. Use a plastic spudger to pry the top side of the cover from the chassis (callout 1).
b. Remove the blank (callouts 2 and 3).
ResultsResults
To replace the component, reverse the removal procedure.
Removing and replacing the external fan connector blankRemoving and replacing the external fan connector blank
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a T-10 Torx screwdriver available.
About this taskAbout this task
CAUTION:CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with
either a component or a blank.
ProcedureProcedure
1. Power down the server.
2. Remove all power:
