2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
If the server is in tower mode, place the server on a flat, level surface with the access panel facing up .
If the server is in rack mode, remove the server from the rack .
5. Remove the access panel.
6. Do one of the following:
Remove the primary riser cage.
Remove the secondary riser cage.

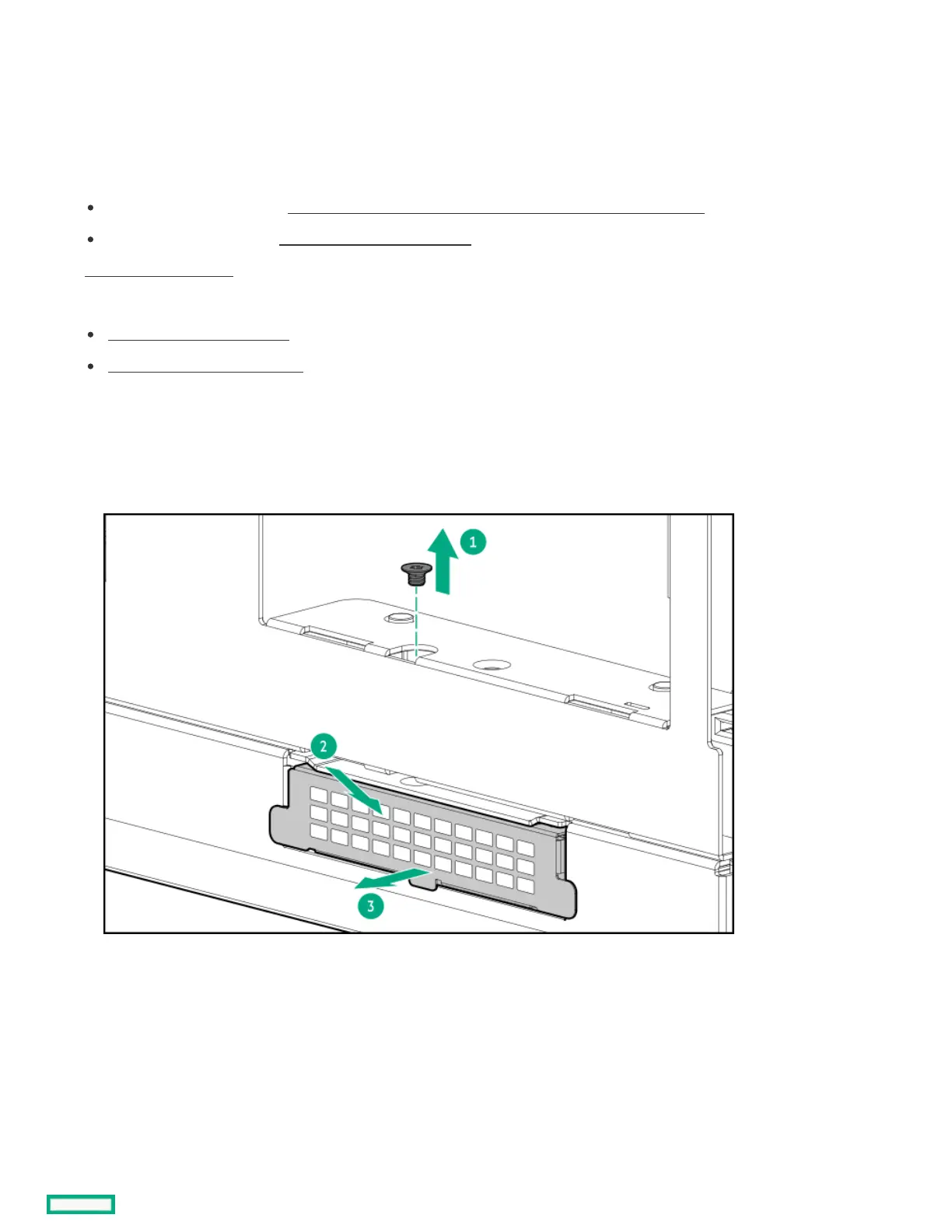

7. Remove the OCP slot blank:
a. Remove the blank screw (callout 1).
b. Use a plastic spudger to pry the top side of the blank from the chassis (callout 2).
c. Remove the blank (callout 3).
ResultsResults
To replace the component, reverse the removal procedure.
Removing and replacing the serial port cableRemoving and replacing the serial port cable
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a hex screwdriver available.
