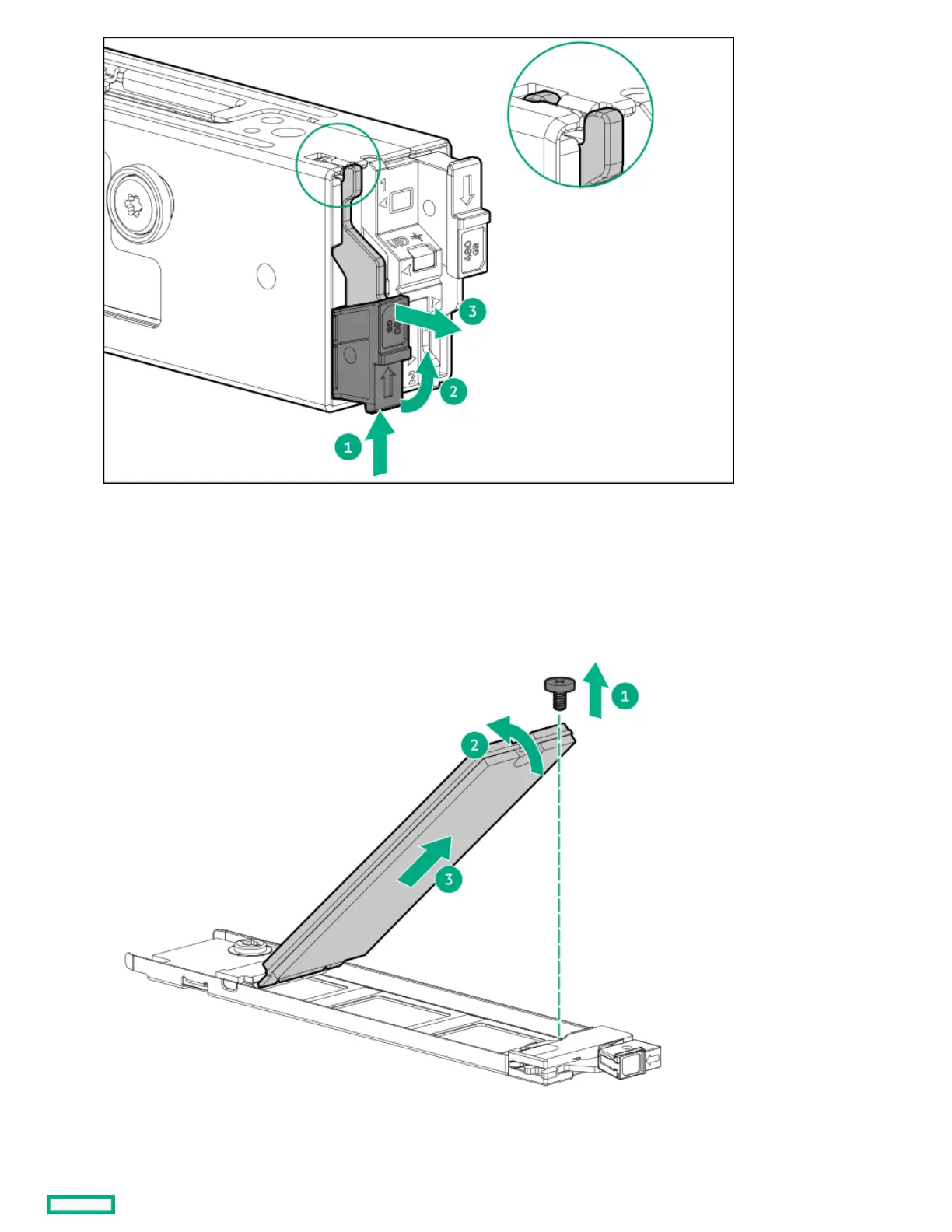

10. Remove the SSDs from the boot device carrier:
a. Remove the SSD mounting screw (callout 1).
b. Tilt the SSD with the M.2 slot at a 45° angle (callout 2).
c. Carefully remove the SSD from the M.2 slot (callout 3).
Retain these SSDs for installation onto the new boot device carrier.
ResultsResults
To replace the component, reverse the removal procedure.
