hpmont HD5L-PLUS Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 3 Mechanical Installation
HD5L-PLUS Series User Manual V1.0 13
Table 3-1 HD5L-PLUS dimensions and weight
Size
Dimension (mm) Mounting Size (mm)
GW
(kg)
W H D W1 H1 H2 d
F3 200 299 210 146 286 280 5 5.8
F4 235 353 222 167 337 330 7 8.2
F5 290 469 240 235 445 430 8 20.4
F6 380 598 290 260 576 550 10 48

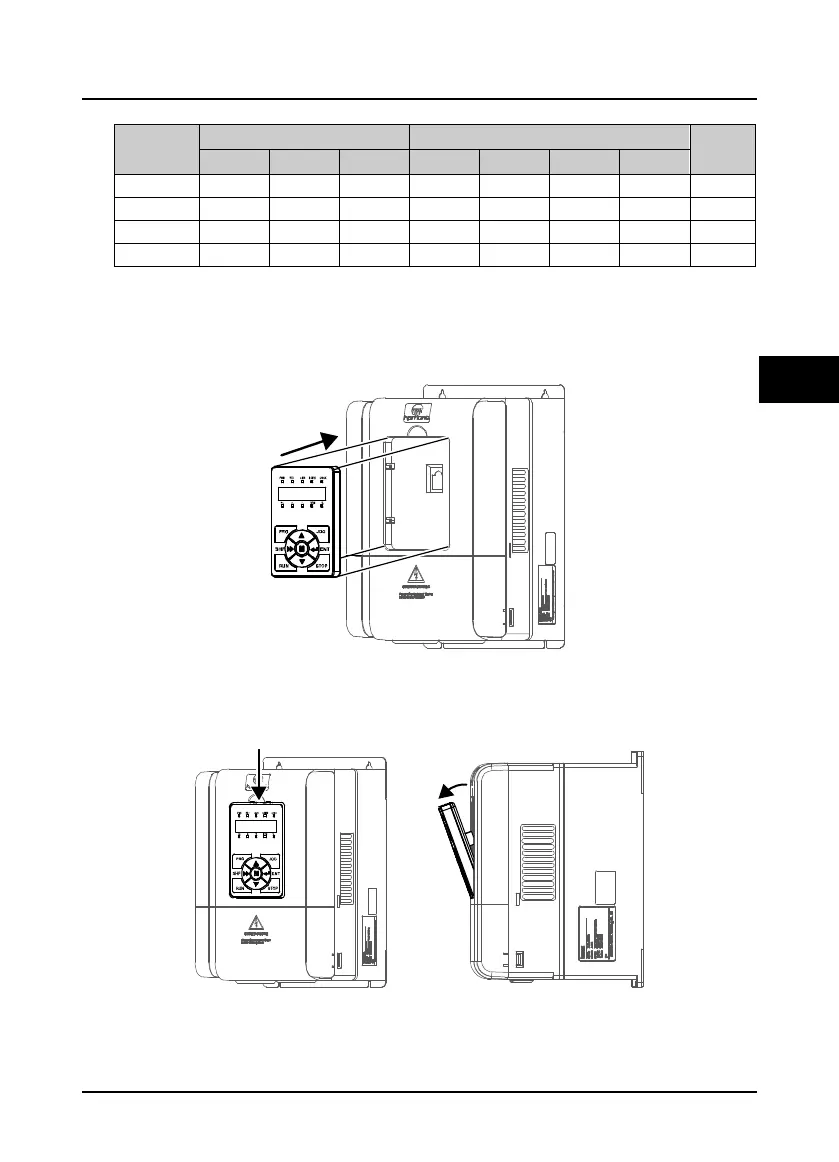

3.5 Install and Dismantle Keypad
According to the direction of Figure 3-3, press the keypad until hear a “click” sound.
Do not install the keypad from other directions or it will cause poor contact.
Figure 3-3 Install keypad
There are two steps in Figure 3-4.
First, press the hook of the keypad according to direction 1. Second, take out of the keypad according
to direction 2.
Figure 3-4 Dismantle keypad
1
2
3
