hpmont HD5L-PLUS Series User Manual

Chapter 5 Operation Instructions Shenzhen Hpmont Technology Co., Ltd.
38 HD5L-PLUS Series User Manual V1.0

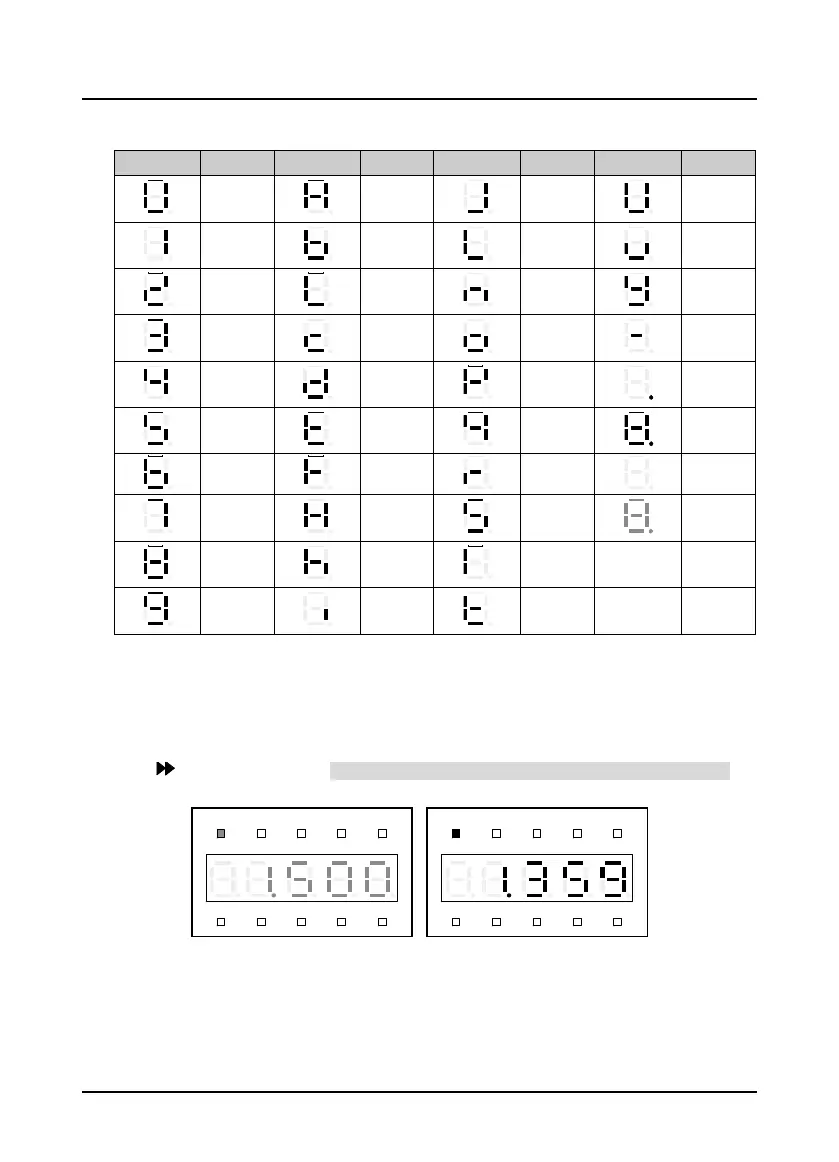

The keypad has 5-digit LED, and the display meaning is shown in Table 5-3.
Table 5-3 LED description
Display Meaning Display Meaning Display Meaning Display Meaning
0 A J U
1 b L u
2 C n y
3 c o -
4 d P Dot
5 E q Full display
6 F r No display
7 H S
Flash
modifable
8 h T
9 i t
5.2.2 Display Status
Parameter Display Status at Stop or Run
When HD5L-PLUS is in stop or run status, the keypad will display stop or run status and its parameters,
as shown in Figure 5-2.
Press key to display different stop (F15.08 - F15.13)/running state parameters (F15.02 - F15.07)
cyclically.
Figure 5-2 Display status of stop (left) and run (right)
Parameter Editing Display Status
At stop, run or fault alarm status, press
PRG
to enter function parameter editing status , as shown in
Figure 5-3.
If there is a user password, please enter the password to unlock first, and F01.00 sets the user
password.
Hz
A V RPM %
REVFWD ALM
LO/ RE LOCK
Hz
A
V RPM %
REVFWD ALM LO/RE LOCK
