hpmont HD5L-PLUS Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 5 Operation Instructions
HD5L-PLUS Series User Manual V1.0 37
5.2 Keypad Debugging
5.2.1 Keypad Description (LED)
The standard HD5L-PLUS are installed with LED
keypad which is
shown in Figure 5-1.
Key description of keypad is shown in Table 5-1.
Table 5-1 Key description
Key Description
PRG
Enter or exit programming key
RUN
In the keypad control, press this key to run HD5L-PLUS
STOP
a. In the keypad control, press this key to stop controller
b. In the detection fault, press this key to reset fault
M
Set certain function by F00.06
Increase value or parameter
Decrease value or parameter
a. Select display parameter and shift bit
b. Stop in loop/display the parameter during running
a. Enter lower menu
b. Confirm saving the data
123

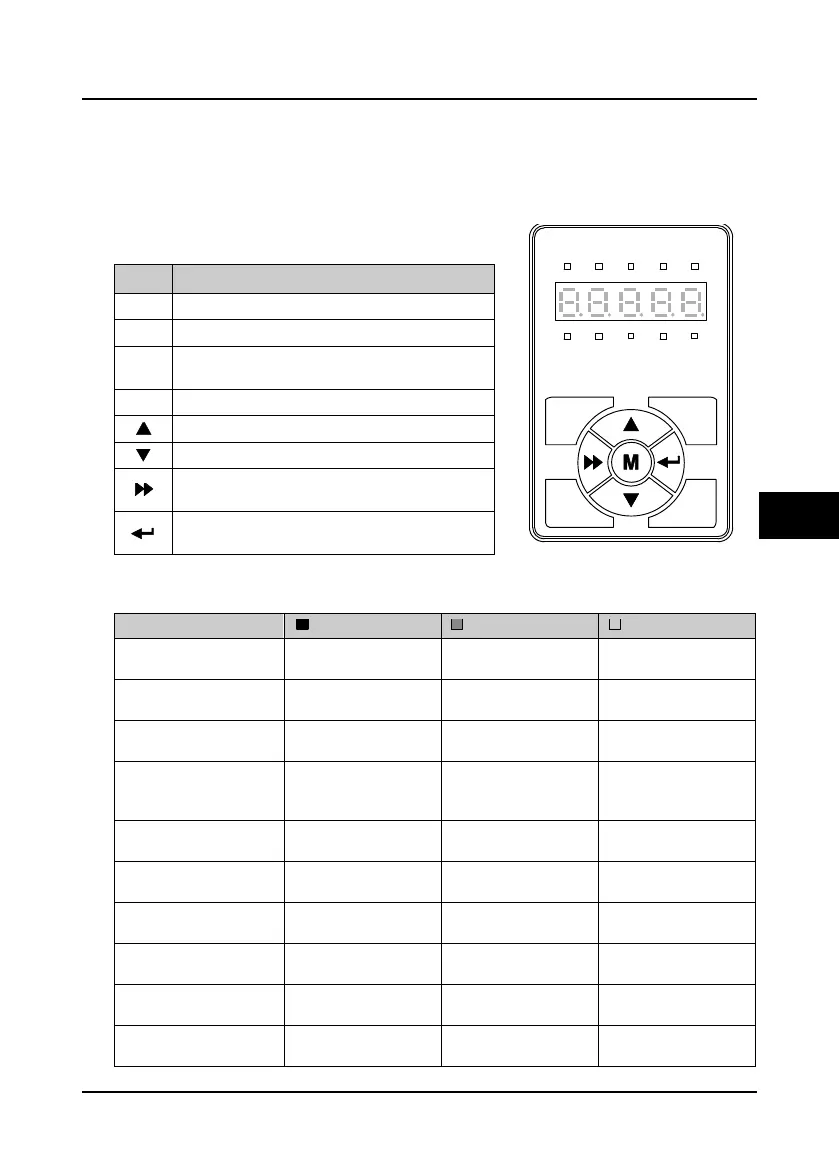

Figure 5-1 Standard keypad
The optional keypad consists of 5 status indicators and 5 unit indicators and shown as Table 5-2.
Table 5-2 Indicator description of the keypad
Indicator : Lighting : Flashing : Lightless
FWD
Forward status
Controller is forward
running at the moment
The start of controller is
forward running next time
REV
Reverse status
Controller is reverse
running at the moment
The start of controller is
reverse running next time
ALM
Alarm status
Controller is faulty at the
moment
Controller is well at the
moment
LO/RE
Remote/local
status
The controller is not
keypad control at the
moment
Controller is in keypad
control mode
LOCK
Password locked
status
The user password lock
of controller is avail
There is no user password
or unlocked
Hz
Frequency unit
The unit of the present
parameter is Hz
A
Current unit
The unit of the present
parameter is A
V
Voltage unit
The unit of the current
parameter is V
RPM
Rotary speed
unit
The unit of the present
parameter is rpm
The present parameter is
rotary speed unit
%
Percentage unit
The unit of the present
function parameter is %
ENTSHF
JOGPRG
STOPRUN
Hz
A
V RP M %
REVFWD ALM LO/RE LOCK
