hpmont HD5L-PLUS Series User Manual

Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd.
52 HD5L-PLUS Series User Manual V1.0

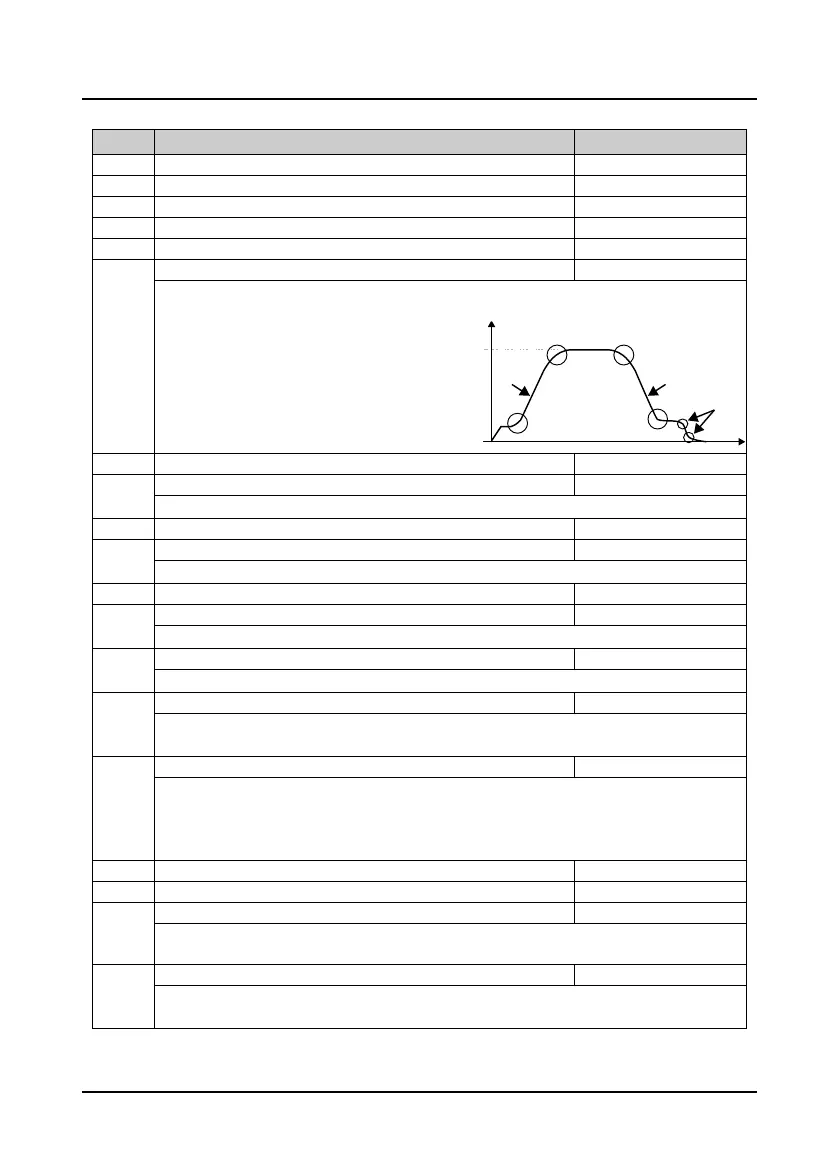

6.2.4 F03: Acc./Dec. Parameters
Ref. Code Function Description Setting Range [Default]
F03.00
Acc. speed
0.020 - 9.999 [0.700m/s
2
]
F03.01
Start Acc. jerk
0.020 - 9.999 [0.350m/s
3
]
F03.02
End Acc. jerk
0.020 - 9.999 [0.600m/s
3
]
F03.03 Dec. speed 0.020 - 9.999 [0.700m/s
2
]
F03.04
Start Dec. jerk
0.020 - 9.999 [0.600m/s
3
]
F03.05
End Dec. jerk
0.020 - 9.999 [0.350m/s
3
]
F03.00 - F03.05 adjust the elevator speed via S-curve which can cushion the shock at elevator start/stop
and improve riding comfort.
• Acc. jerk: The change ratio of Acc.
• See the right figure for the adjustment of S-curve.
• The S-curve becomes steeper when parameter
values are raised;
• The S-curve becomes slower when parameter
values are decreased.
F03.06
Inspection Acc. speed
0.020 - 9.999 [0.200m/s
2
]
F03.07
Inspection Dec. speed
0.020 - 9.999 [1.000m/s
2
]
Defines the Acc. or Dec. speed of elevator at inspection run mode.
F03.08
Emergency running Acc.
0.020 - 9.999 [1.000m/s
2
]
F03.09 Emergency running Dec. 0.020 - 9.999 [1.000m/s
2
]
Defines the Acc./Dec. speed of elevator at emergency running mode.
F03.10
Asyn. motor auto-tuning Acc. speed
0.020 - 9.999 [0.100m/s
2
]
F03.11
Asyn. motor auto-tuning Dec. speed
0.020 - 9.999 [0.100m/s
2
]
Defines the Acc./Dec. speed in auto-tuning of motor.
F03.12
Abnormal Dec. speed
0.020 - 9.999 [1.000m/s
2
]
Defines the deceleration when the forced deceleration is valid or the operation mode is wrong.
F03.13
Stop Dec. jerk
0.020 - 9.999 [0.350m/s
2
]
Defines Dec. change rate from non-zero speed to zero speed.
•
It can adjust the smooth stop of the elevator to increase ride comfort.
F03.14
Asyn. motor field-weakening optimization
0 - 2 [0]
0: No field-weakening optimization.
1: Optimize according to voltage.
2: Optimize according to current.
F03.14 = 1 or 2, it can reduce the current noise and improve the dynamic performance of Asyn. motor.
F03.15
Field-weakening Kp
0 - 5000 [4000]
F03.16 Field-weakening Ki 0 - 5000 [1000]
F03.17
Field-weakening voltage limit
4000 - 5000 [4126]
F03.15 - F03.17 is uesd to adjust the effect of Asyn. motor field-weakening so that user need not regulate
them usually.
F03.19
SINCOS encoder CD phase learning
0,1 [0]
0: Learning.
1: Not learning.
Tar
g
et
s
peed
Speed
T
ime
0
F0
3.0
0
F0
3
.0
3
F03.1
3
F
03
.0
4
F03.05F03.01
F03
.02
