hpmont HD5L-PLUS Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 6 Function Introduction
HD5L-PLUS Series User Manual V1.0 53

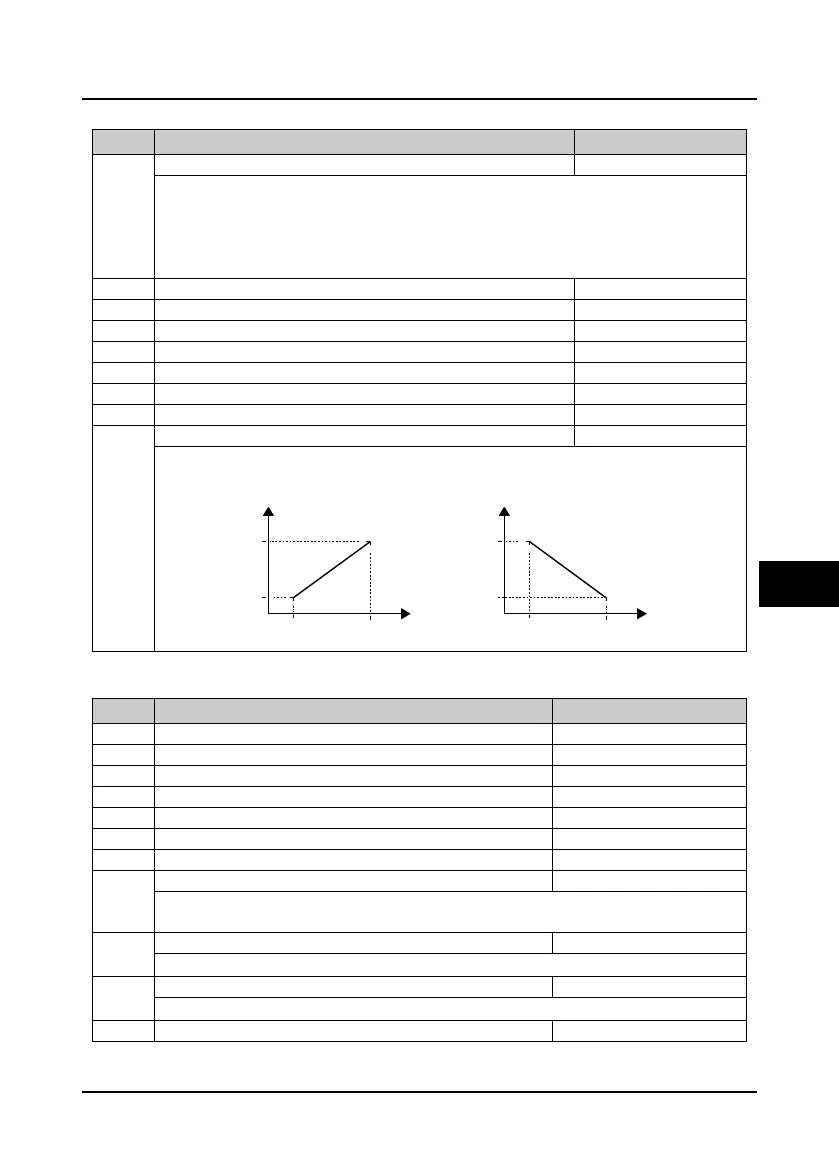

6.2.5 F04: Analog Curve Parameters
Ref. Code Function Description Setting Range [Default]
F04.00
Setting curve
0000 - 1111 [0000]
Unit: AI characteristic curve selection
Ten, hundred, thousand: Unused
Each bit setting:
• 0: Line 1.
• 1: Line 2.
F04.01
Line 1 min. setting
0.0 - F04.03 [0.0%]
F04.02 Corresponding value of line 1 min. setting 0.0 - 100.0 [0.0%]
F04.03
Line 1 max. setting
F04.01 - 100.0 [100.0%]
F04.04 Corresponding value of line 1 max. setting 0.0 - 100.0 [100.0%]
F04.05
Line 2 min. setting
0.0 - F04.07 [0.0%]
F04.06 Corresponding value of line 2 min. setting 0.0 - 100.0 [0.0%]
F04.07
Line 2 max. setting
F04.05 - 100.0 [100.0%]
F04.08 Corresponding value of line 2 max. setting 0.0 - 100.0 [100.0%]
F04.01 - F04.04 define the line 1, F04.05 - F04.08 define the line 2.
• Both line 1 and line 2 can independently achieve positive and negative characteristics as shown in the
figure below.
6.2.6 F05: Speed Parameters
Ref. Code Function Description Setting Range [Default]
F05.00
Multi-speed 0
0.000 - F00.02 [0.000m/s]
F05.01 Multi-speed 1 0.000 - F00.02 [0.000m/s]
F05.02
Multi-speed 2
0.000 - F00.02 [0.000m/s]
F05.03 Multi-speed 3 0.000 - F00.02 [0.000m/s]
F05.04
Multi-speed 4
0.000 - F00.02 [0.000m/s]
F05.05 Multi-speed 5 0.000 - F00.02 [0.000m/s]
F05.06
Multi-speed 6
0.000 - F00.02 [0.000m/s]
F05.07 Multi-speed 7 0.0 - F00.02 [0.000m/s]
F05.00 - F05.07 define the MS running speed which use in MS run mode. F00.02 defines the rated speed of
elevator.
F05.08 Inspection running speed 0.000 - 0.630 [0.200m/s]
Defines the running speed of elevator in the inspection mode.
F05.09 Emergency running speed 0.000 - F00.02 [0.100m/s]
Defines the running speed of elevator in emergency running mode.
F05.10 Up forced speed switch detection value 0.0 - 100.0 (F00.02) [97.0%]
F04.01
F04.05
F04.03
F04.07
F04.04
F04.08
F04.02
F04.06
AI reference
Setting
corresponding value
F04.01
F04.05
F04.03
F04.07
F04.02
F04.06
F04.04
F04.08
AI reference
Setting
corresponding value
6
