hpmont HD5L-PLUS Series User Manual

Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd.
54 HD5L-PLUS Series User Manual V1.0

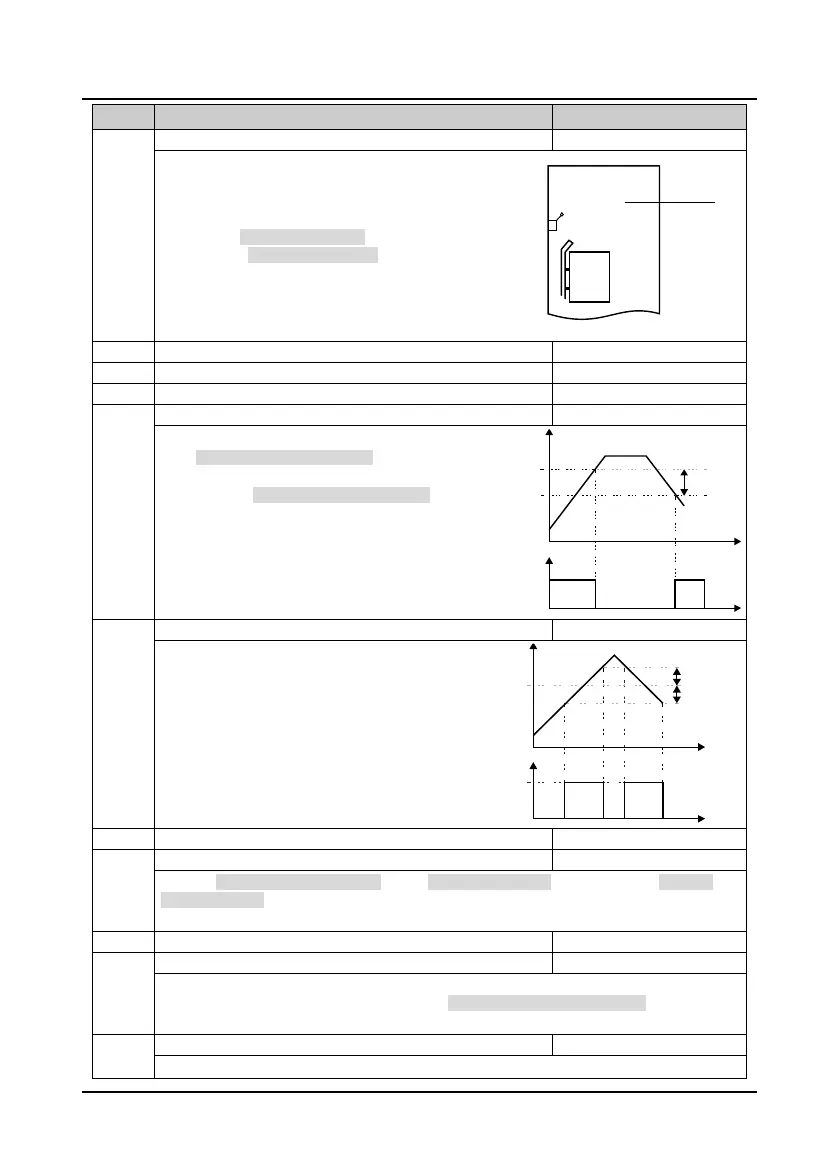

Ref. Code Function Description Setting Range [Default]
F05.11
Down forced speed switch detection value
0.0 - 100.0 (F00.02) [97.0%]
Defines the speed detection value at the forced
switch action.
• After the forced switch is activated, when the
running speed > the speed switch detection
value, press F03.12 (abnormal Dec.) to
decelerate to F05.22 (creeping speed).
• Reasonable setting of F05.10 can prevent the
elevator from hitting the top when it goes up.
• Reasonable setting of F05.11 can prevent the
elevator from squatting when it goes up.
F05.12
Speed detection level 1 (FDT1)
0.0 - 100.0 (F00.02) [90.0%]
F05.13
Speed detection level 2 (FDT2)
0.0 - 100.0 (F00.02) [90.0%]
F05.14
FDT1 delay level
0.0 - 100.0 (F00.02) [1.0%]
F05.15
FDT2 delay level
0.0 - 100.0 (F00.02) [1.0%]
When running speed < F05.12 + F05.14, output ON
indication signal.
No output when running speed > F05.12 + F05.14,
until running speed < F05.12.
• Refer to F05.12 and F05.14 about F05.13 and
F05.15.
F05.16
Speed within FAR rang e
0.0 - 20.0 [1.0%]
When the running speed is within the positive
and negative detection width of the given
speed, the pulse signal is output.
F05.17 Over-speed setting 80.0 - 120.0 (F00.02) [115.0%]
F05.18
Over-speed detection time
0.0 - 2.0 [0.2s]
When the actual elevator speed > F05.17 and the duration time > F05.18, HD5L-PLUS alarms E32 fault
(motor over speed).
• F05.18 = 0, HD5L-PLUS does not detect motor over speed fault.
F05.19
Detected value of speed deviation
0.0 - 30.0 (F00.02) [20.0%]
F05.20
Detected time of speed deviation
0.0 - 2.0 [1.0s]
When the deviation of setting speed (after Acc./Dec.) and actual run speed of motor exceeds F05.19 and
the duration time exceeds F05.20, HD5L-PLUS alarms E18 fault (excessive speed deviation).
•
F05.19 or F05.20 = 0, HD5L-PLUS does not detect the excessive speed deviation fault of motor.
F05.22 Creeping speed 0.000 - 0.400 [0.050m/s]
Defines the running speed at the forced Dec. run.
Car
Up forced
speed switch
Shaft top space
Top floor
Contact board
Elevator speed
F05.14
F05.12
F05.12 +F05.14
Time
Time
DO
ON ONOFF
Elev
ator sp
eed
O
utp
ut
T
ime
Ti
me
Setti
ng speed
DO
F05.16
F05.16
