5.3 Bluetooth APP Mobile Phone Debugging
The supporting Bluetooth module (MT70-BLE-A) uses the mobile phone to debug the HD5L-PLUS.
The Bluetooth APP debugging software is developed based on the Android 4.3 platform and Bluetooth
4.0. The main functions are shown in Table 5-5.
Table 5-5 Bluetooth APP function description
Function Description
Bluetooth module
connection
Search for the Bluetooth device MT70-BLE-A, connect the mobile phone with the controller
Elevator
monitoring
Display the current elevator system status, fault reset operation
Function
parameter
Common application macro parameters, fast debugging
Expert debugging
Controller parameter reading and writing, restoring factory parameters, clearing fault
information, parameter uploading and downloading operations
Failure handing Current fault, historical fault, formulating fault, fault assistance, operation
1. Get the Bluetooth APP installation file:
Browser to visit www.hpmont.com, click Download Center > Application Software, search in searching box.
2. Use your Android phone to install the Bluetooth APP and log in to the APP.
Android phone recommended configuration:
• CPU: Main frequency above 1G
• Memory: More than 512MB
• Mobile phone built-in capacity: At least 256MB free space, screen resolution: Above 960*540
• Recommended mobile phone brands: Huawei, Samsung, Sony, Xiaomi, Nexus
• Operating system: Android 4.3 or above
3. Set the language of the Bluetooth APP:
• The Bluetooth APP displays Simplified Chinese, set the phone system language to Simplified Chinese;
• The Bluetooth APP displays English, set the phone system language to other languages.
4. Open the lower cover of HD5L-PLUS, insert the Bluetooth module (MT70-BLE-A) into the USB, see Figure 5-8.
• The Bluetooth module cannot be used as a U disk and cannot be inserted into the USB port of the computer.

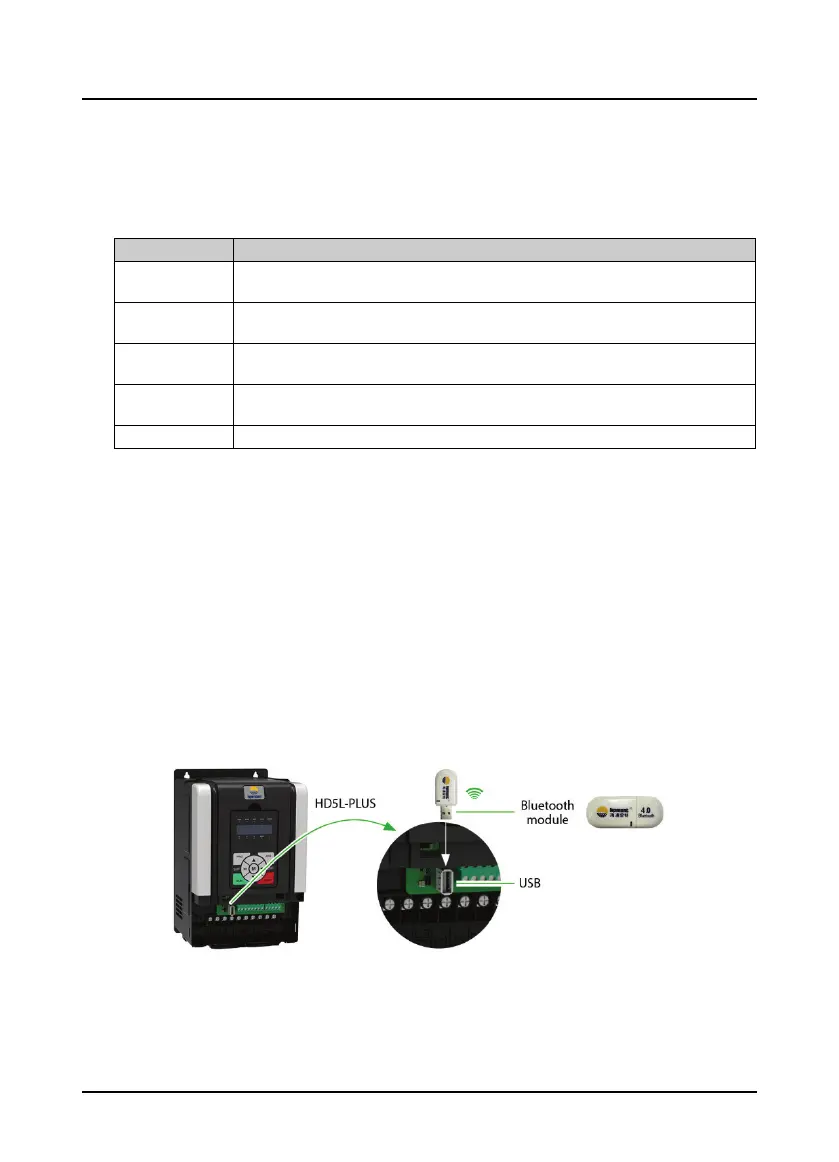

Figure 5-8 Bluetooth connection HD5L-PLUS
